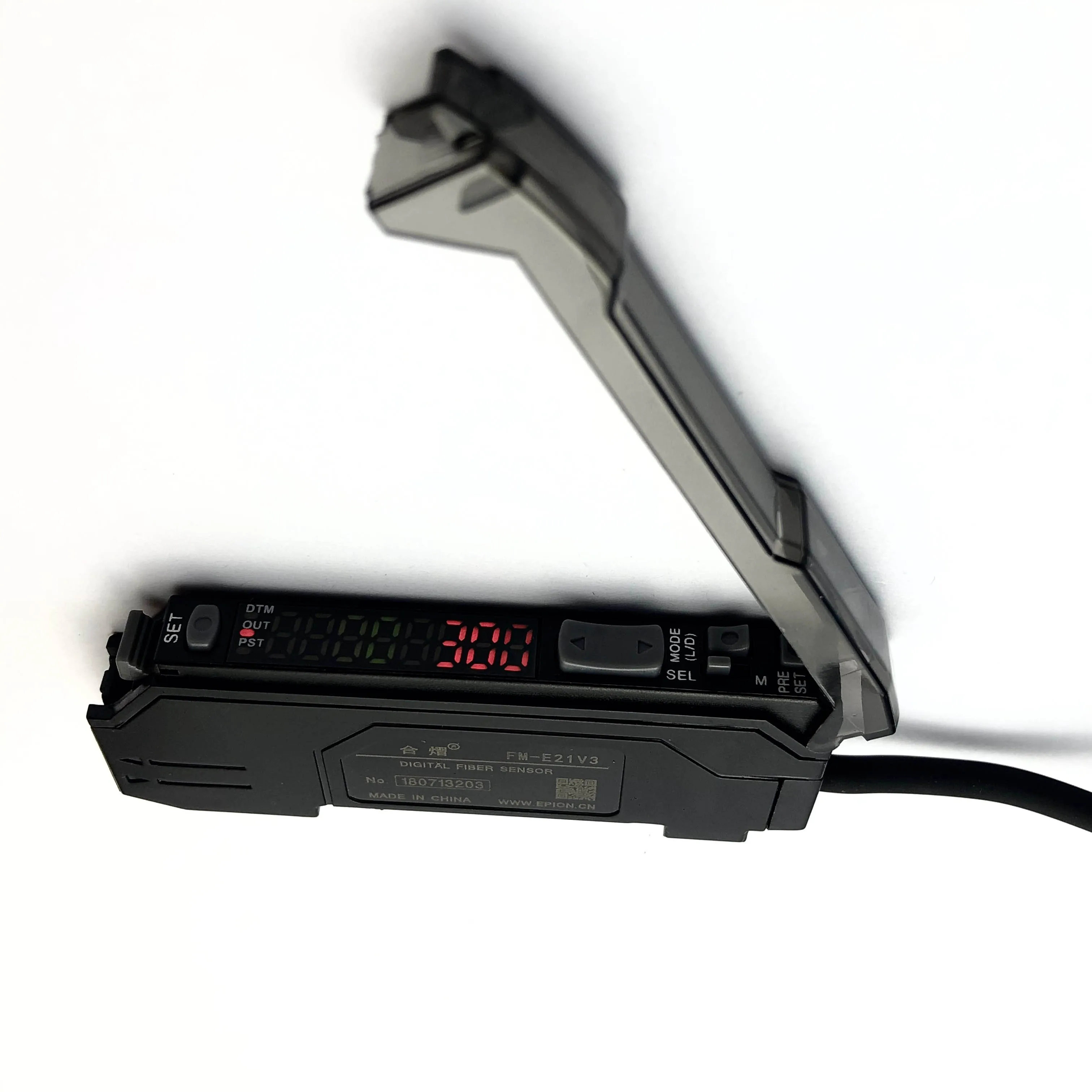

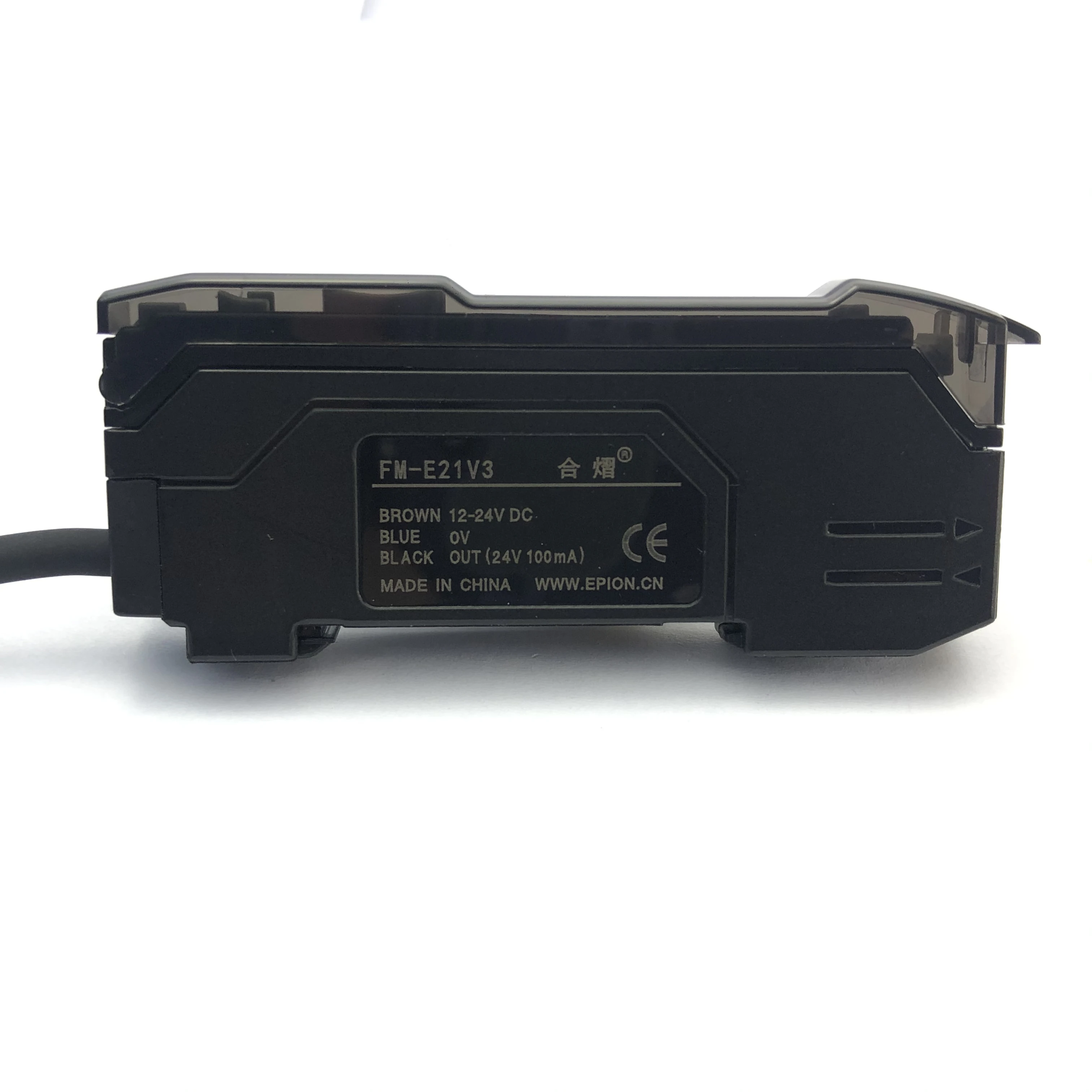

Factory direct sales FM-E21V3 high speed optical fiber amplifier sensor red light LED photoelectric sensor

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Electronic Components & Supplies
  • Validity Period:

    Long Term

  • Published on:

    2020-12-23 09:36

  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

High-performance FM-E31 digital display time delay function fiber optic sensor amplifier

Product Description



Model

FM-E21V3

Working mode

FINE/High speed/Super/MEGA

Type

Diffuse type/Through beam

Brand

HEYI

Light source

Red LED light source

Output selection

LIGHT-ON/DARK-ON (switch selection)

Detection mode

Light intensity (region detection, automatic sensitivity tracking function)

Control output Open-collector 24V; Maximum output value: 100mA, residual Voltage 1.5V
Power source Between 12 and 24VDC ± 10%, the fluctuation ratio (P-P) : max.10%.
Current  consumption  NPN Normal:max.750mW(when 24V, max.20mA;when 12V:max.40mA)
Energy saving mode: max.800mW(when 24V, max.18mA;when 12V:max.36mA)
Current  consumption  PNP Normal:max.950mW(when 24V, max.20mA;when 12V:max.40mA)
Energy saving mode: max.850mW(when 24V, max.18mA;when 12V:max.36mA)
Ambient temperature /relative humidity -20 to +55(No freezing)/ 35 to 85% RH(No condensing)
Vibration resistance 10 to 55Hz, complex amplitude 1.5mm, each 2 hours for X/Y/Z axis
Impact resistance 500 m/s², each 3 times for X/Y/Z axis
Material Polycarbonate
Size 30.3mm(H)X9.8mm(W)X71.8mm(D)
Weight About 85g

Usage

object detection sensor

Theory

optical sensor

Output

switching output

Sensing Range

different sensor head for different range

Sensing Object

opaque object

Application

food/medical/chemical/robotics/electronics/industry/packaging/plastic machinery industry/textile machinery industry/lithium battery/semiconductor industry

Output mode

swithching output
