Product Details


All in one Solar street light System details | |
LED Lamp: | 5W~80W 12V/24V DC 6500-7000K Color Temperature 100~110Lumen/watt |
Solar Panel: | 5W~100W high-efficiency monocrystalline PV module, IP65 junction box, A grade; 25 years continuous power output guarantee |
Intelligent Controller (Remote control) | 10A/20A 12V/24V auto-sensing, 3 section time frame dimming function design, intelligent power mode, record the system status, IP68 waterproof degree. |
Battery: | 4.4AH~50AH LiFePO4 12.8V Lithium battery, deep cycle, free maintenance type; 6-8 years lifespan |

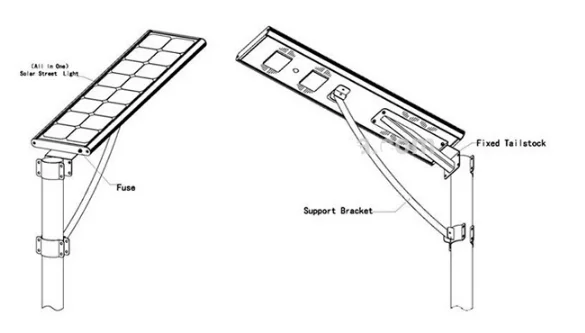

Pole Set: | 3M~9M high, Q235 steel grade; hot-dip galvanized and spray coated treatment, including solar panel bracket, lamp arm and base plate (foundation not included) |
Cable: | RVV2*4, international standard |
Note: | Discharge time: Over 36 hours, considering 3-5 rainy days Working temperature: -20~+60 degrees |

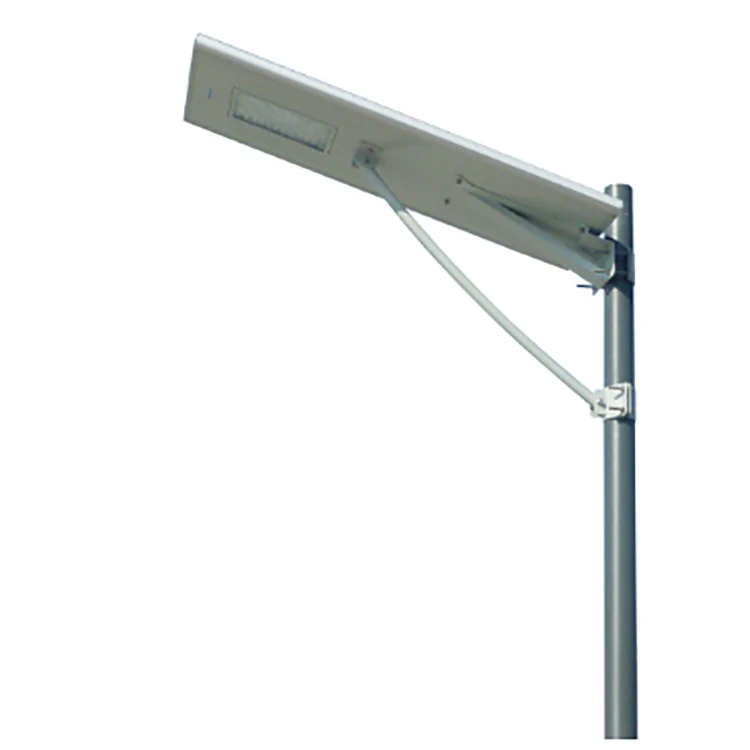

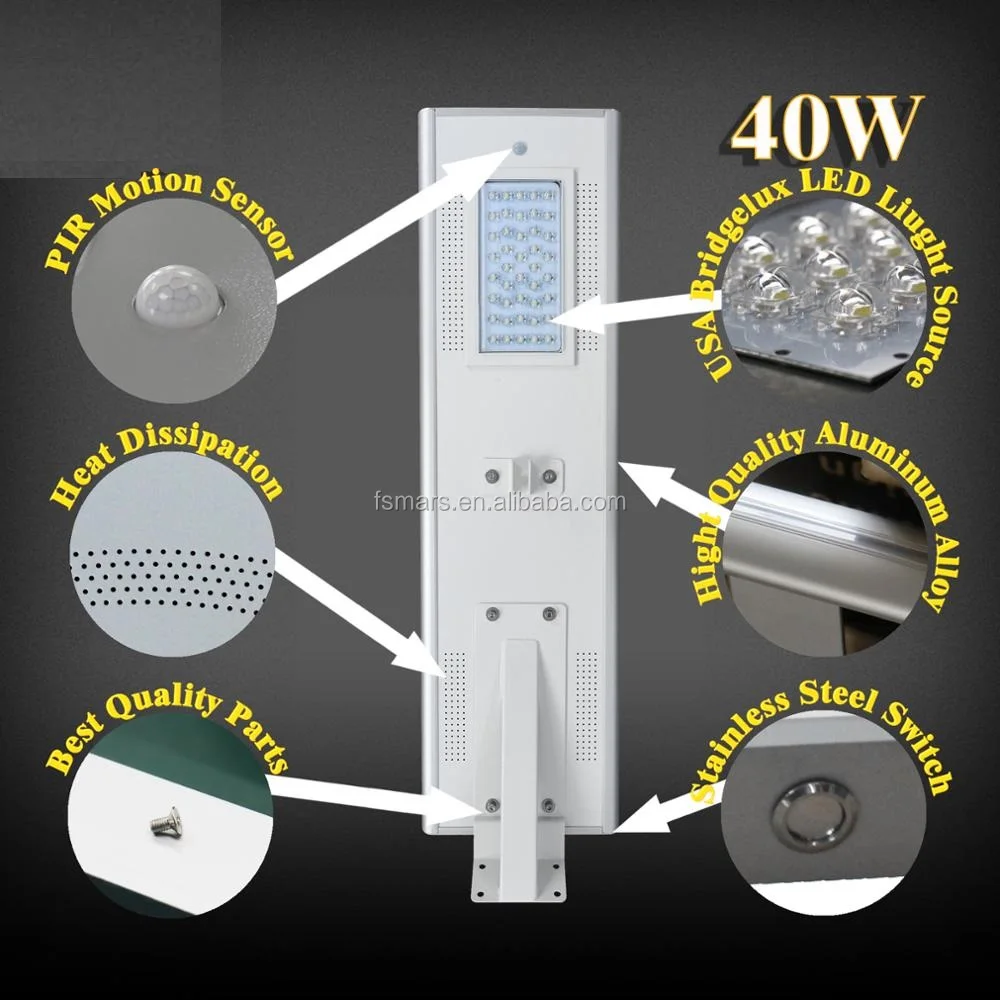

High lumen waterproof ip65 integrated solar LED street light with pole

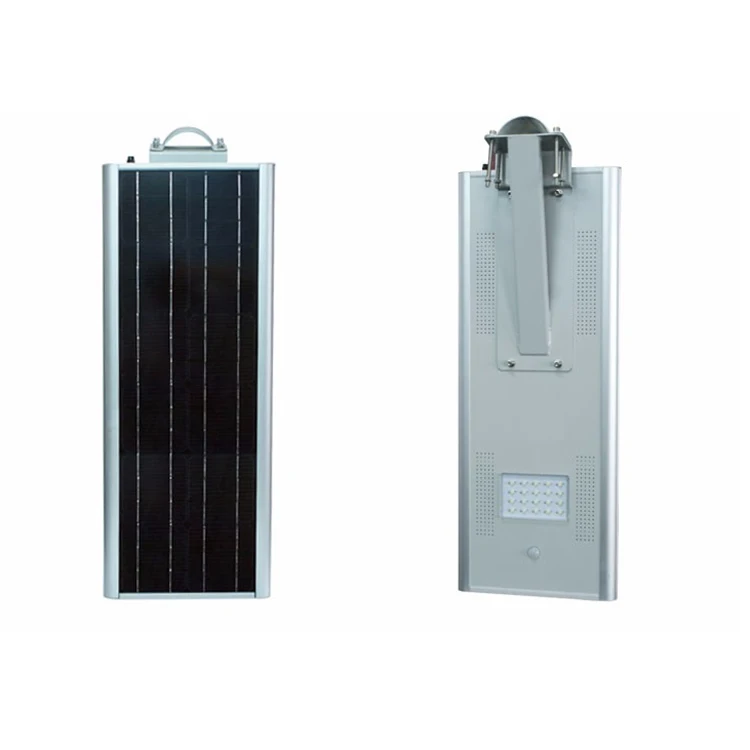

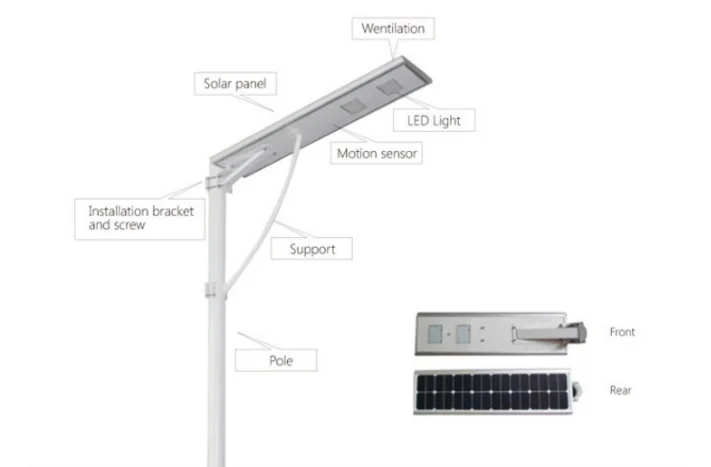

All in one solar street light is the product integrated design with LED light source, high capacity lithium battery, mono-crystalline solar module and automatic controller. It is raised LED light sources which are powered by photovoltaic panels.

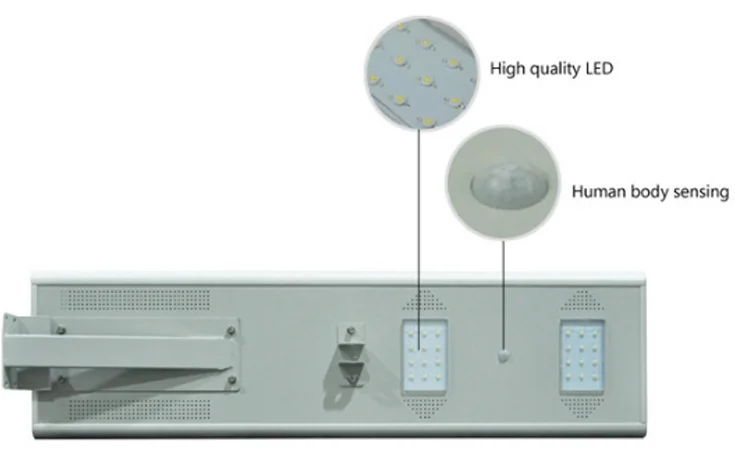

The photovoltaic solar panels charge the rechargeable battery by intelligent controller, which powers the LED light source during the night. In addition, the all in one light with a body sensor function, when the body through, the lamp becomes brighter. This product widely used in rural road, city streets, gardens, villas and other places.
Main Advantages:
1. No need of cable installation or special light pole, functional components modular design. Installation, maintenance and replacement is convenient and quick .
2. High efficiency solar panel. High transfer rate, charge full quickly.
3. Using high capacity lithium ion battery, high energy, long life, light weight, green and environmental protection, do not produce any harmful substances.
4. Using LED lighting source, no diffuse reflection effect, high light efficiency. Coupled with the unique secondary optical design, exposures to the wider region, This achieve energy saving again to improve the efficiency of light. And the LED light source has a long service life, high luminous efficiency; the advantage of light color uniform, is also a best product of environmental protection.
5. The Shell adopts aluminum, which have a advantage of light weight, corrosion resistance, wear resistance and other characteristics. Ensuring product to adapt to the humid and hydrochloric acid environment.
6. Control system adopts industrial-grade components manufacturing, which can adapt to all kinds of wicked environment and ensure the street light normally on.

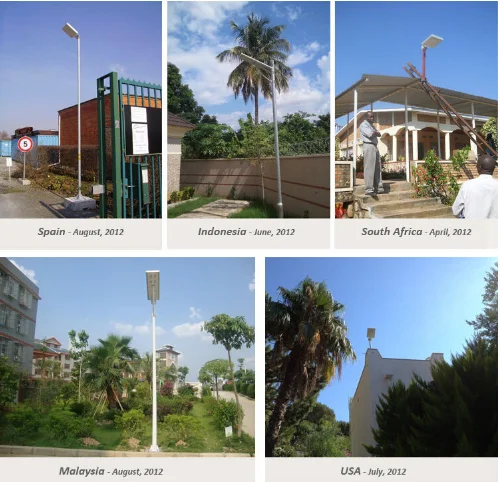

Project case:
