Product Details
Its bright light can be changed automatically according to your settings , and it also enables various visual patterns such as gradient color and strobe with adjustable speed. So, This LED Stage Light creates complicated illumination effects for a romantic atmosphere. Your companions and you can be more enjoyable with it now.
Button | Mode | ||
ControlMode | d001-d512 | DMXControl | |
CC01-CC64 | ColourControl | ||
rb01-rb16 | GradualChange(TheBiggerNumberthefasterspeed) | ||
PL01-PL16 | Pulsevariable(TheBiggerNumberthefasterspeed) | ||
Sd01-Sd16 | Jump(TheBiggerNumberthefasterspeed) | ||
Sound | Voice-Control | ||
r000-r255 | REDColourManualdimmer(TheBiggerNumberthefasterspeed) | ||
G000-G255 | GreenColourManualdimmer(TheBiggerNumberthefasterspeed) | ||
b000-b255 | BlueColourManualdimmer(TheBiggerNumberthefasterspeed) | ||
ChannelTable | Chanel | Value | FunctionDetails |
CH1 | 0-255 | Tunedoptical(acombinationofCH2andCH3,CH4) | |
CH2 | 0 | NoRed | |
1-255 | RedLightBrightnessControl(Fromdarktolight) | ||
CH3 | 0 | NoGreen | |
1-255 | GreenLightBrightnessControl(Fromdarktolight) | ||
CH4 | 0 | NoBlue | |
1-255 | BlueLightBrightnessControl(Fromdarktolight) | ||
CH5 | 0-7 | NoStrobe | |
8-255 | Strobe(Thebiggernumberthefasterspeed) | ||
CH6 | 0-10 | ManualControl(CH1-CH5) | |
11-60 | ChooseColour(ControlbyCH7) | ||
61-110 | GradualChange(ControlbyCH7), | ||
(Thebiggernumberthefasterspeed) | |||
111-160 | PulseVariable(ControlbyCH7) | ||
(Thebiggernumberthefasterspeed) | |||
161-210 | Jump(ControlbyCH7), | ||
(Thebiggernumberthefasterspeed) | |||
211-255 | Voice-Control | ||
CH7 | 0-255 | ChooseColour(Thebiggernumberthefasterspeed) | |
Note:the1stNumberwillbewhenchooseDMX | |||
Master&SlaveControl: | |||
Twoormorelightconnectbytheline,chooseoneofthemtobemasterandtheotheroneallsetat“d001”. |
- Connect signal DMX-512 controller, can pull up numerous kinds of color effect, Stroboscopic effects with adjustable speed, etc
- Individual control of red, green and blue LEDS
- Static color and RGB color mixing with or without DMX controller.
- Built-in automated programs via stand alone mode by Menu Button
- Modes: Color gradual change / color jump change / strobe / running speed adjustment
- 4 Dight LED stage lights Very low power consumption,high output
- Great for club, DJ show,disco, home party, ballroom, KTV, bar, stage, party, wedding, home decoration and festival etc.

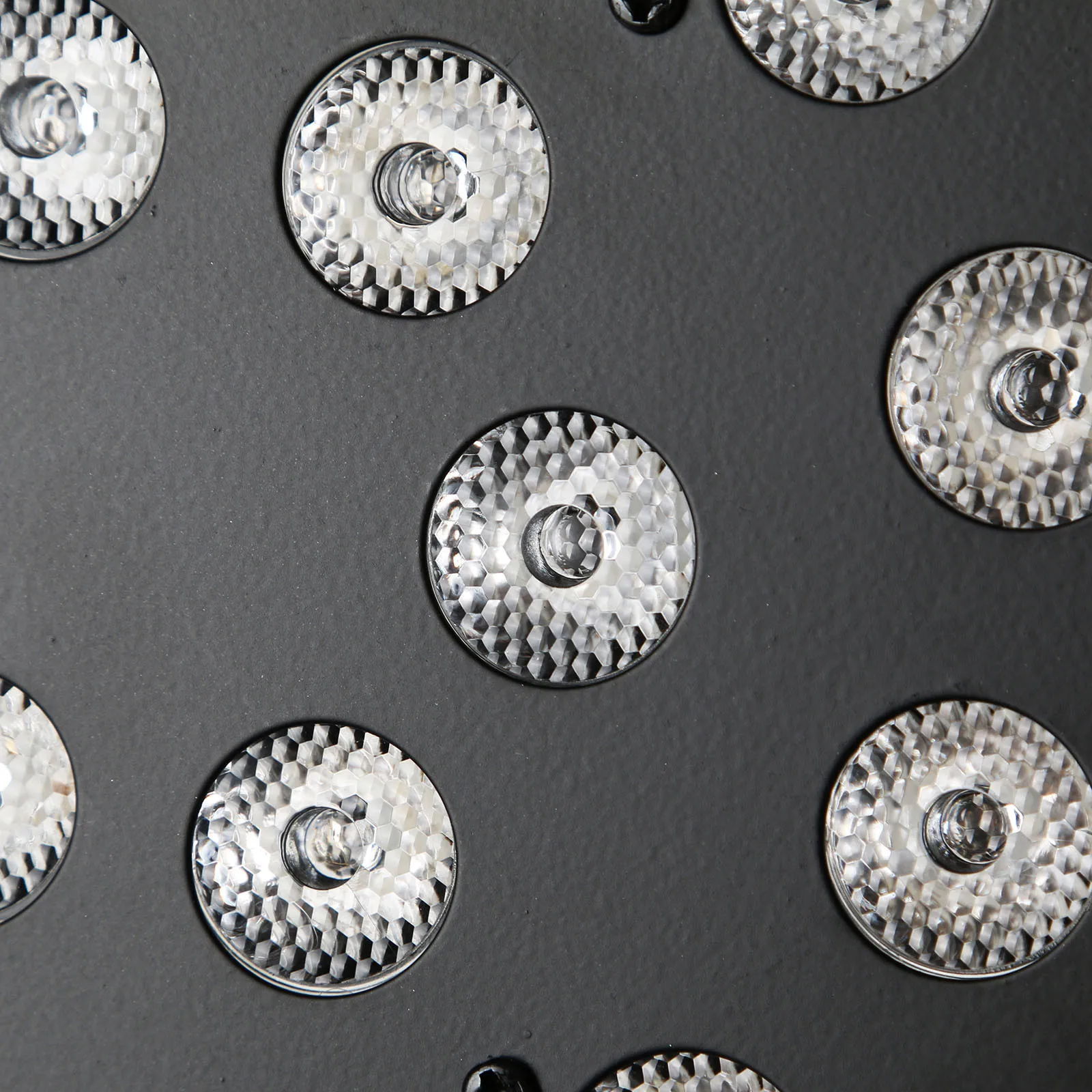

- Lamp Spec.: 36 x 3W LED high power PAR Light (R12,G12,B12)
- Control mode options: Auto/DMX/Music-Control
- Power: 36 x 3W(12pcs Red, 12pcs Blue, 12pcs Green)
- Linear electronic dimmer: from 0-50%
- Lifetime: 80000-100000 hours
- Material: Engineering plastic shell
- Control channel: 7 CH
- Feature: Double brackets, can be self-supporting, can be hung
- LED color: red, green, blue
- Voltage: AC 110V-240V 56/60Hz
- Gross Weight: 2.1kg (1PCS)
- Carton size:490L*480W*570H mm
- 4 x LED Flat Par Light
- 8 x Handle
- 1 x English User Manual
