Product Details
◆ PRODUCT PARAMETER
| Data Specifications | FLX series | |||
| Power | 80W/100W | 120W/150W | 180W/200W/240W | 260W/280W/300W |
| Input Voltage | AC100-240V：50/60Hz | AC100-240V： 50/60Hz | AC100-240V： 50/60Hz | AC100-240V： 50/60Hz |
| Output Voltage | DC27-56V | |||
| color temperature | 2800-3200 /4000-4500 /5500-7000K | |||
| CRI | Ra>70 / Ra>80 | |||
| Average Beam angle(50%) | 20°， 60°， 90°， P50（135°x60°），TP4（145°x55°） | |||
| Light Efficiency | >140lm/w | |||
| LED | 48 (LUMILEDS 5050) pcs | 72 (LUMILEDS 5050) pcs | 90 (LUMILEDS 5050) pcs | 144 (LUMILEDS 5050) pcs |
| Driver | MEANWELL XLG-100-H-A/AB | MEANWELL XLG-150-H-A/AB | MEANWELL XLG-240-H-A/AB | MEANWELL ELGC-300-H |
| Power Factor(Typ) | ≥0.95 | |||
| Operating Temperature | （-40～70 ℃）(Lowest operation temp -40°C, and highest 70°C) | |||
| Ip rate | the waterproof grade IP66 ,can work outdoor under rain | |||
| Life Span | L80B20>50,000hrs | |||
| Main Materials | Aluminum+Glass+PC | |||
| Operating Humidity | 20%～95% | |||
| Storage Temperature | (-40～90 ℃) | |||
| Lumen Maintenance | >90%（6000Hrs） | |||
| Others | ||||
| Energy Saving | 60% | |||
| Gross Weight(Kgs) | 6 kg (1pcs/CTN) | 6 kg (1pcs/CTN) | 7 kg (1pcs/CTN) | 6 kg (1pcs/CTN) |
| Package Size | 52.2cmx40.0cmx14.0cm | 52.2cmx40.0cmx14.0cm | 52.2cmx46.0cmx14.0cm | 59.5cmx52.0cmx14.0cm |

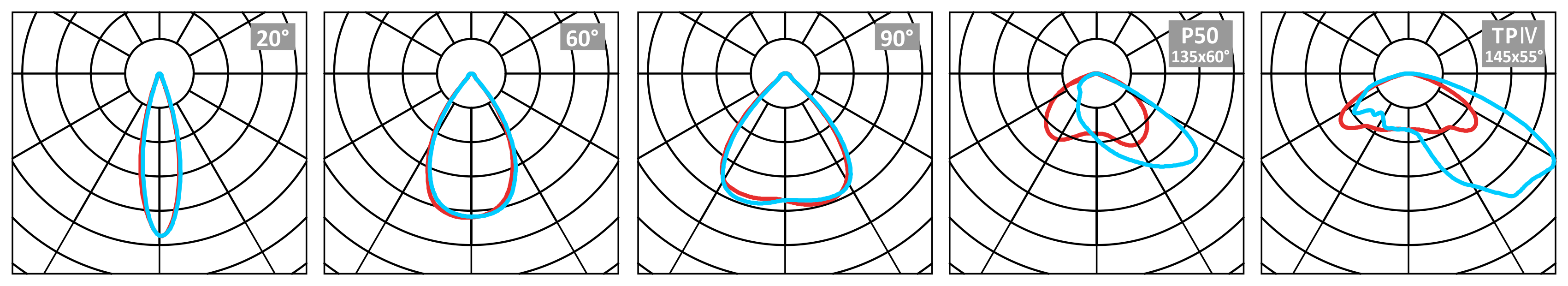

◆ PRODUCT PHOTOMETRY

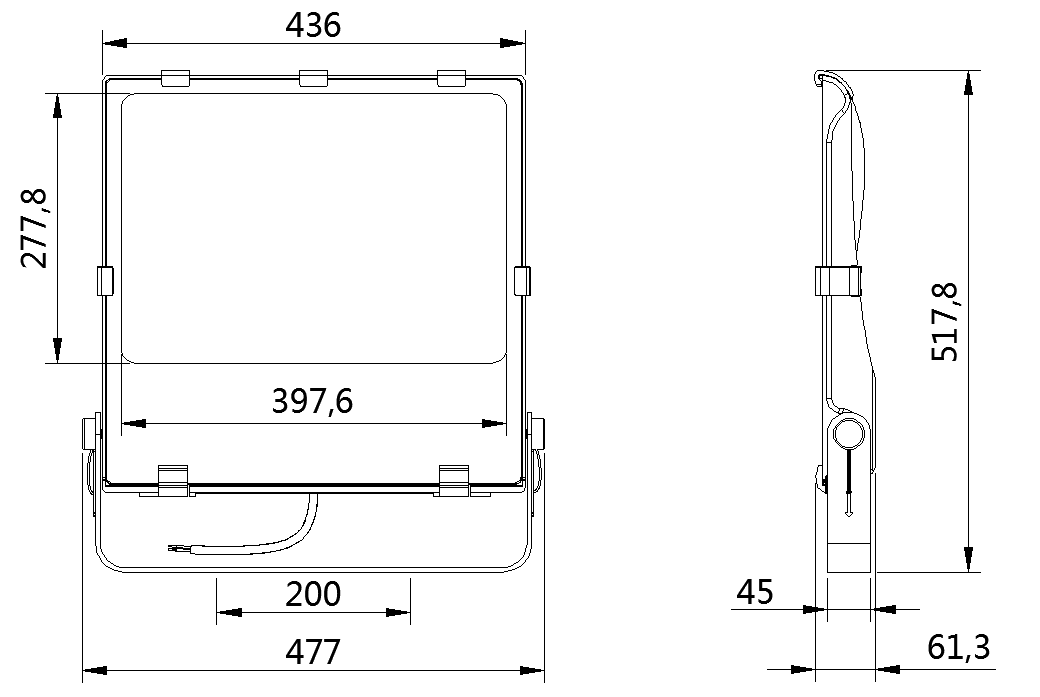

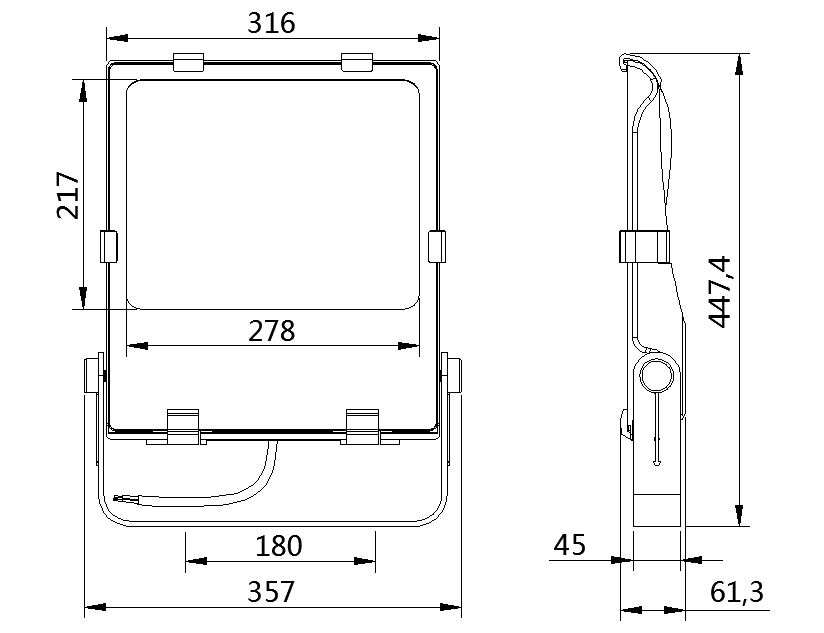

◆ PRODUCT SIZE
