Product Details
Product Description

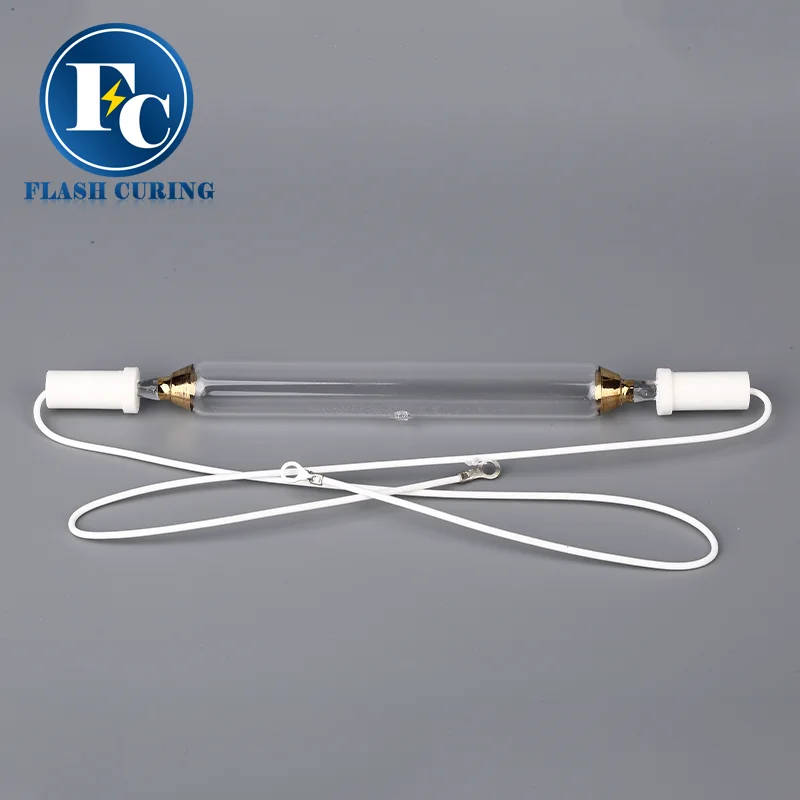

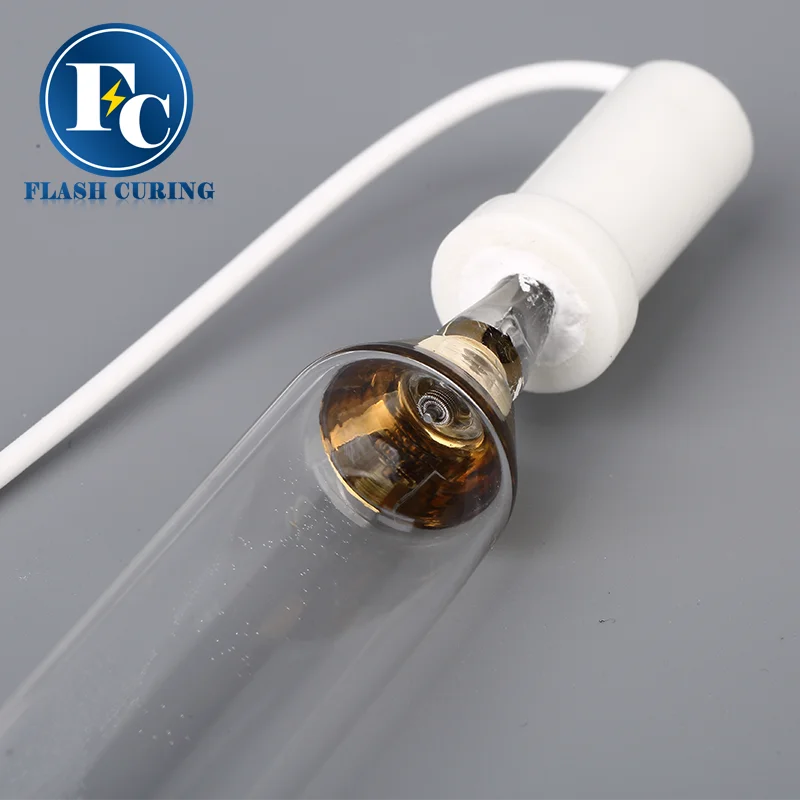

High quality uv handheld curing lamp replacement uv light
Feature:
| Product Name | uv printing lamp |
| Wavelength | 350nm to 380nm |
| Input voltage | 220V / 380V |
| Output Power | 500w to 3600w |
| Arc length | 50mm to 2000mm |
| Lamp density | 30/80/120/160/200/240/300 w/cm |
| Material | GE quartz glass tube |
| Tube Diameter | 13mm to 40mm |
| End caps | Ceramic / metal ( more than 100 kinds) |
More Choose:
| Model | Power | Pole pitch | Pipe diameter | Lamp head |
| 400W | 115 mm | 40mm | 20 mm | ceramic |
| 850W | 152mm | 75mm | 18 mm | ceramic |
| 1KW | 335mm | 220mm | 22.5 mm | ceramic |
| 2 KW | 400mm | 300mm | 22.5 mm | ceramic |
| 3 KW | 620mm | 470mm | 22.5 mm | ceramic |
| 3.2 KW | 550mm | 400mm | 22.5 mm | ceramic |
| 4 KW | 664mm | 510mm | 22.5 mm | ceramic |
| 5 KW | 775mm | 625mm | 22.5 mm | ceramic |
| 5.4 KW | 625mm | 456mm | 25 mm | metal |
| 5.6 KW | 826mm | 675mm | 22.5 mm | ceramic |
| 6 KW | 920mm | 800mm | 25 mm | ceramic |
| 7.5 KW | 725mm | 620mm | 25 mm | ceramic |
| 8 KW | 1150mm | 1000mm | 25 mm | ceramic |
| 8.4 KW | 826mm | 700mm | 25 mm | ceramic |
| 9.6 KW | 1387mm | 1250mm | 25 mm | ceramic |
| 11 KW | 1575mm | 1440mm | 25 mm | ceramic |
| 12 KW | 1692mm | 1550mm | 22.5 mm | metal |
| 13 KW | 1120mm | 1010mm | 22.5 mm | ceramic |
| 20 KW | 1870mm | 1750mm | 25 mm | ceramic |
Application
UV lamps are widely applied in the curing of uv ink, paint, varnish, plastics and glue in printing and coating technologies, such as offset printing, flexo printing, gravure printing, embossing and screen printing.
