2019 Manufacturer for Industry & Medical Capacitive ITO Glass 0.9, 1.3, 1.4, 1.7, 2, 2.4, 2.5, 2.8, 3.2 inch touch screen glassIR
touch screen frame touch panel for kiosk/monito/TV/PC
Welcome to our company:
Fujian WIWO Electronic Technology Co., Ltd. is a professional manufacturer, researcher and designer of Industrial Projected Capacitive Touch Panel / Screen, Which has been certificated by IATF16949:2016,ISO9001:2015,REACH,RoHs and ISO14001.
1,Telling you about capacitive touch screen project process.
We have the best engineers team work for you, insure your project produce smoothly. Our products have sale lots to USA, Europe,Asia, lots of customers choose cooperation with us. some of them are very famous companies, you will see hundreds of desin drawing from different our customers. If your team can come to China November 2019, we will show you our design, that will amazing you. Now you have your own design, please send design to me. Our company will check your project, and give you reply, including price.

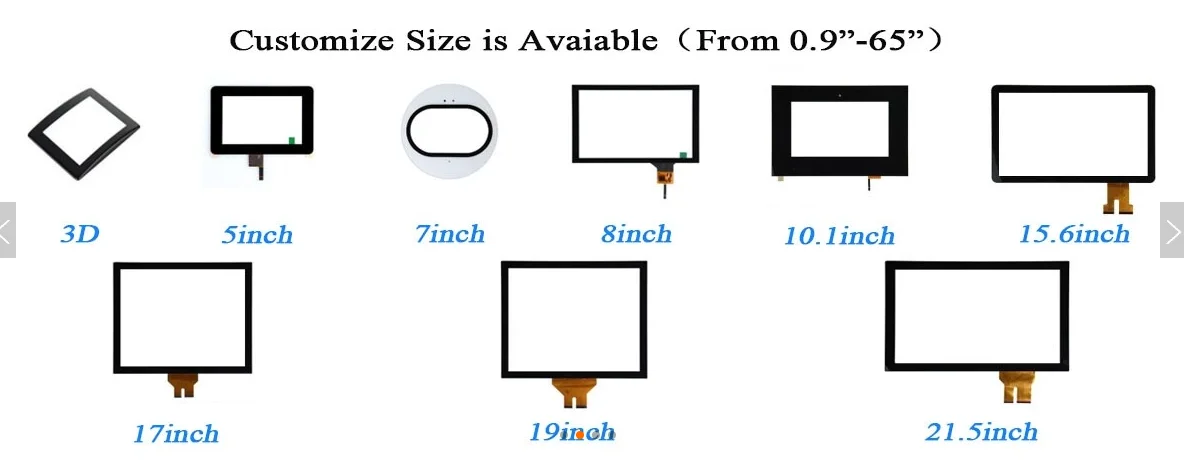

2,Instock products size available.
0.9, 1.3, 1.4, 1.7, 2, 2.4, 2.5, 2.8, 3.2, 3.5, 4, 4.3, 4.5, 5, 5.5, 6, 7, 7.8, 8, 8.4 10.1, 10.4, 10.8, 11.6, 12.1, 12.3, 13.3, 14, 14.1,15, 15.4,15.6,17, 19, 21.5, 23.8, 32, 43, 49, 55, 65 Inch in stock. Customized Capacitive Touch Screen Panel.
3 Telling you about products by detials.

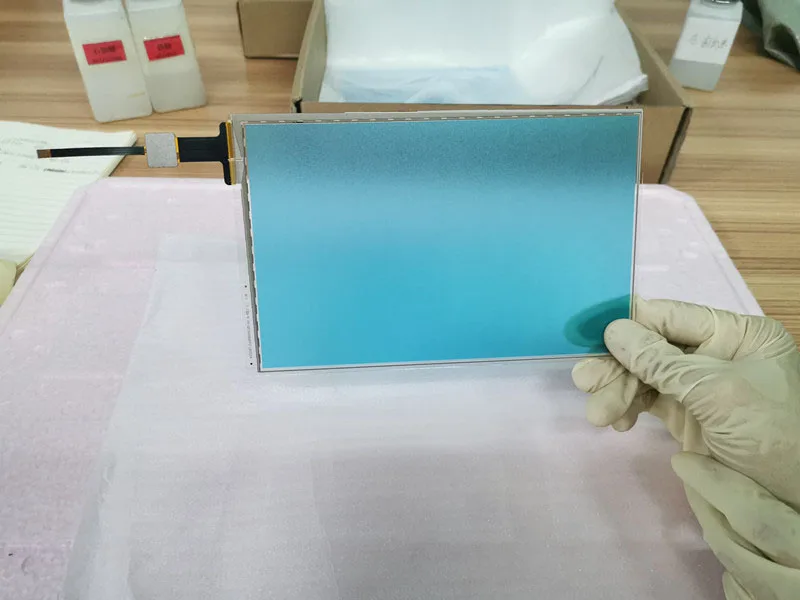

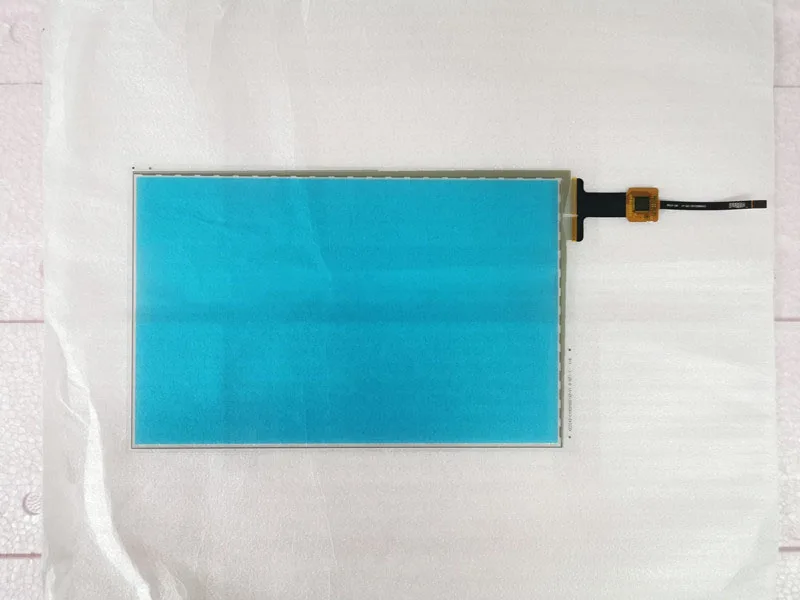

8 inch capacitive touch screen:
Nice screen 2019 show:
Touch Screen:
Touch Panel:
Capacitive multi touch panel is a kind of touch that nearly everybody knows it because it can been seen anywhere in our daily life. For example, if you enjoy a Smartphone, you would have experience about how comfortable its light-touch operation is; such as quick reaction and shining appearance. Our factory makes projected capacitive touch screens ready for industrial use for small and large sizes. Projected capacitive touch screens are getting more and more popular not only because of their operability but also the excellent reliability, durability, toughness, appearance and design.
multi touch panel:
Advantages of capacitive multi touch panel
1. Light-touch (Smartphone-like) operation.
2. Multi-touch supports up to 10 points. Suitable for gestures such as flicking and zooming.
3. Glove-operation can be supported.
4. Its high transparency makes for a clear display appearance.
5. A Stylish flat interface is possible with the covering glass / covering acrylic options.
6. No part of the touch screen physically moves at detection. Functional degradation seldom occurs even over a long period of use.
7. As it is made of glass, capacitive multi touch panel are tough and weather-resistant. Their functionality are not affected by ultraviolet radiation.
8 inch touch panel specifications:
| 8 Inch Projected Capacitive TouchPanel | |
| Model Number | CYH080GG192 |
| Type | PCAP |
| Structure | Glass+Glass |
| Cover Glass Dimension | 130.6±0.2*203.2±0.2*0.7±0.05MM |
| Sensor Size | 118.6±0.2*186.1±0.2*0.55±0.05MM |
| Cover Lens VA | 107.64±0.2*172.22±0.2MM |
| ITO Glass | 0.55MM |
| Cover Glass | 0.7MM |
| Total Thickness | 1.45±0.1MM |
| Surface Hardness | ≥6H |
| Transparency | ≥85% |
| Operating Temperature | –20℃~70℃ ≤85%RH |
| Storage Temperature | –30℃~80℃ ≤85%RH |
| IC | GT911 |
| Interface of CTP | I2C |
| Touch Points | 5-10 points |
| Touch Accuracy | ±1MM |
| Linearity | ±1MM |
| OEM/ODM | we can make this product as per your design and put your logo on |
| MOQ | 100pcs |
| Sample Lead Time | 12 working days |
| Mass Production Lead Time | 2-4 weeks normally, it depends on your order quantity |
| Payment Terms | sample: by paypal or western union mass production order: T/T to our company bank account, 50% deposit, 50% balance before shipment |
| Warranty | 12 months |
| Package | plastic tray or anti static foam or paper card or vacuum bag or carton |

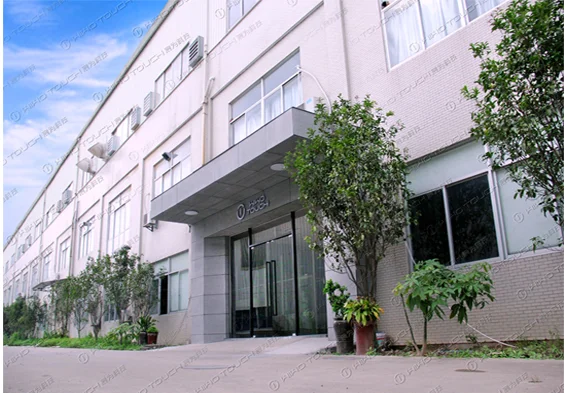

4 Telling you about our company.
Fujian WIWO Technology Co., Ltd. is a professional manufacturer, researcher and designer of Industrial Projected Capacitive Touch Panel / Screen, which has been certificated by IATF16949:2016,ISO9001:2015,REACH,RoHs and ISO14001. Our major product range includes Glass + Glass, Glass + Film, Glass + film + film, full lamination, 3D touch screen and large size touch screen. We have hundreds of dust-free work shop1000 square meters and thousands of dust-free plant 2200 square meters. Meanwhile we use the advanced equipments from Japan and Taiwan to secure the Best Quality for our customers.
Display in USA 2019:
5,Delivery
To create and submit drawings + artwork for your approval:2-3 working days
To build tooling and Sample Shipping:8-10 days
Mass Production Delivery:15-30 days after the sample confirmation
Shipping Details:
1) Can be Shipped by international express such as DHL, FEDEX, EMS, TNT, UPS, or by Sea, by air, it's depends on customers' requirement.
2) The tracking number will be informed once the package was delivered.
3) We will follow the shipment after we sent it. If you not receive goods on time, please contact us immediately, we will assist to get the goods smoothly.
7,FAQ
Q:Why choose WIWO TOUCH?
A:1)Many years industrial experience and involved main markets all over the world.
2)Dedicated and professional sales team will offer you 24 hours online and immediate service.
3)Precise and advantage equipment.
4)High quality and sensitivity.
5)Many kinds of products with all size.
Q:How long is the warranty period?
A:Usually 1 year without damaged by people actions.It depends on different products.
Q: Is customization available?
A: Yes, we have strong R&D team for ele, mechanical, customization is welcomed.
Q: Can you provide OEM service?
A: yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: What's the after-sales service you can supply?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
