Hot Sale! Mechanical Jack Lifting Ratchet Rail Jack with Safety Crane Handle from Manufacture

Product Introduction

railway Mechanical track jack Appliance :

1.Rail track jack machine can also be applied to industrial and mining enterprises, transportation,

ports, and other enterprises shipping, installation and adjustment of equipment and lifting,

handling all kinds of heavy became a tool.

2.This machine structure is simple, lifting and reliability, simple operation, maintenance, maintenance

is convenient. Hoisting lift, ascension (lifting) speed, track the working efficiency is high.

railway Mechanical track jack Features :

1.In accordance with DIN 7355.

2.Suitable for lifting loads of any type.

3.With lifting body.

4.Safety crank with folding handle.

5.Lifting either with fixed toe or on clawed head .

6.All construction components standardized.

7.Low expenditure of force through optimal ratio

Technology Parameters

model	Max lifting capacity of the top	Max lifting capacity of foot-hoot	Lifting height	Total height (Include the height of the machine)	Foot-hoot
LUH5	5T	2.5T	160mm	345mm	43mm
LUH10	10T	5T	180mm	410mm	45mm
LUH15	15T	7.5T	280mm	580mm	60mm

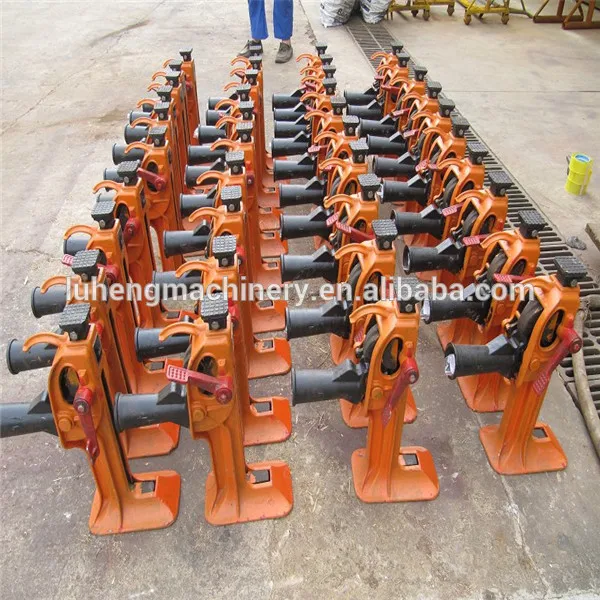

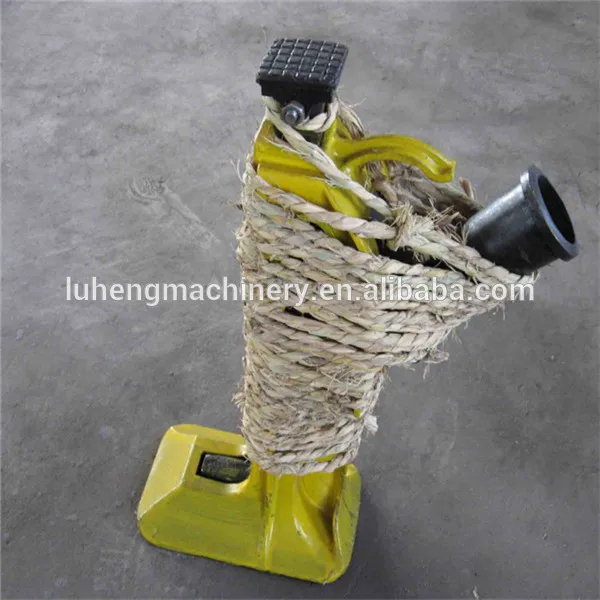

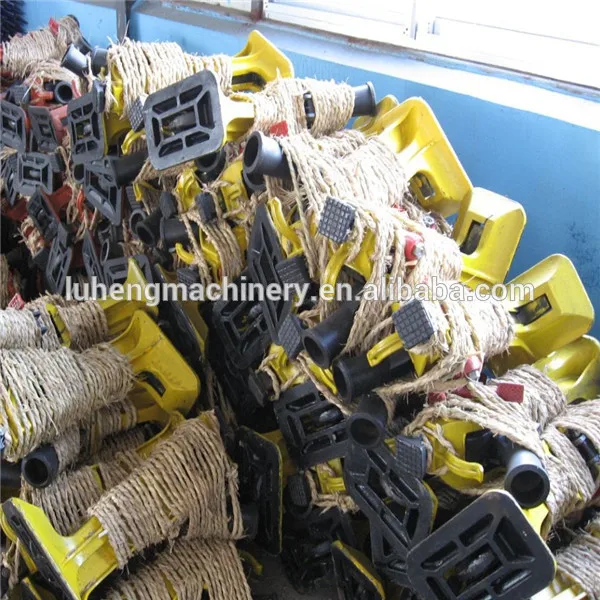

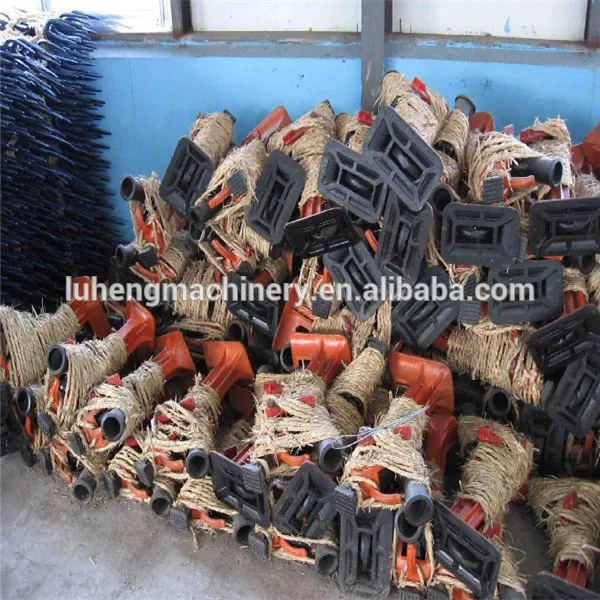

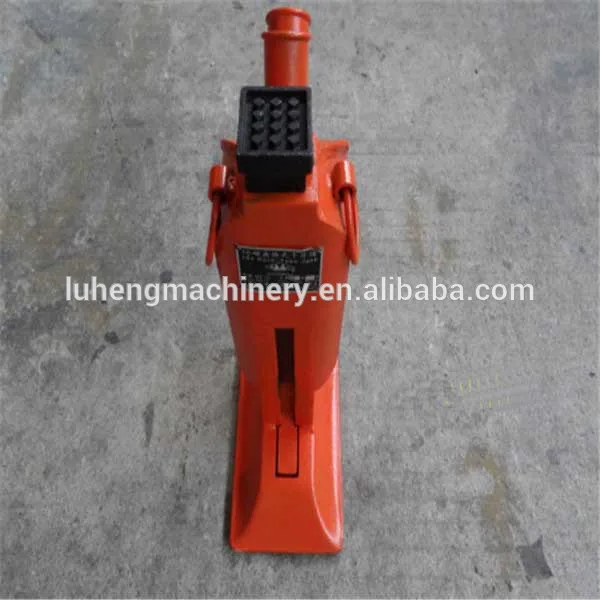

The real details photo
