Hot sale semi-automatic microtome with factory price fast freezing

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Lights & Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-12-03 18:43

Other Products
China supplier new class S series autoclave sterilizer used in medical and health department
¥Negotiable 14Views

China supplier new class S s

Recommend
Chinese Biobase Table Top Type Autoclave Sterilizer Class S Series
¥Negotiable 6Views

Chinese Biobase Table Top Ty

Recommend
Chinese biobase simple operation rapid sterilizer with Automatic door
¥Negotiable 8Views

Chinese biobase simple opera

Recommend
BIOBASE 5 points calibration Benchtop pH/ORP/Ion Meter for test
¥Negotiable 1Views

BIOBASE 5 points calibration

Recommend
Digital LCD Benchtop pH Meter
¥Negotiable 2Views

Digital LCD Benchtop pH Mete

Recommend
You may like
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Type:

Array

Product Details

Overview
Quick Details
Type:
Biochemical Analysis System
Brand Name:
BIOBASE
Model Number:
BK-3358
Place of Origin:
Shandong, China
Brand:
BIOBASE
Model:
BK-3358
Trimming Thickness Setting Range:
0 - 100μm
TrimmingThickness Range:
0.25~60μm
MinimumSettingValue:
0.25μm
Specimen Clamp Rotation:
Any angle within 360 degrees
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
International standard package
Port
QINGDAO
Lead Time:
10 days after payment confirmed

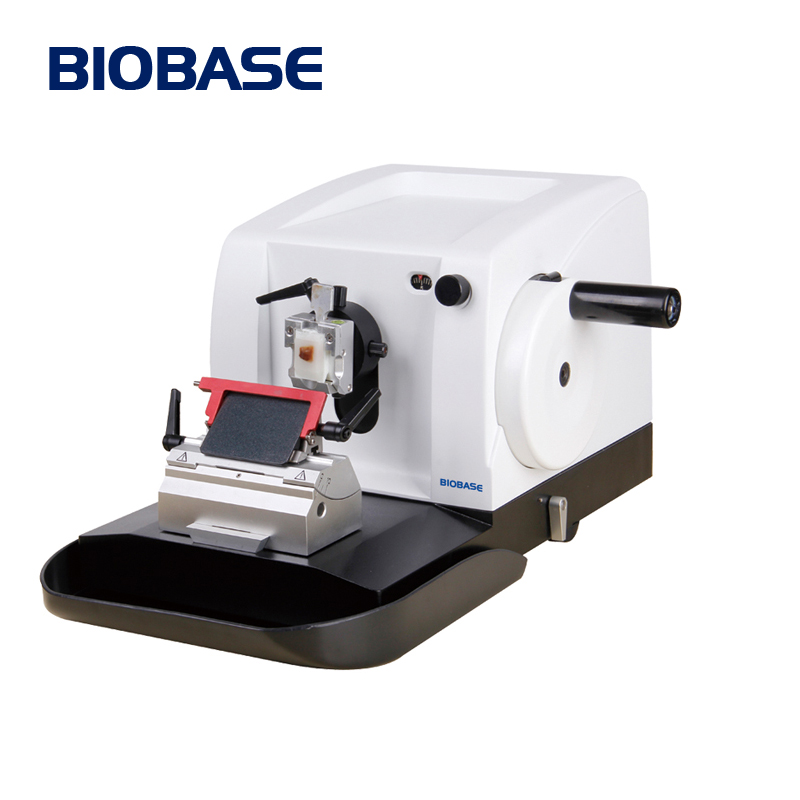

 2016 Hot sale semi-automatic microtome   with factory price fast freezing

Product Description









Features of   semi-automatic microtome

Automatic return of specimen

Auto exchange between section and trimming mode

Imported cross-roller guide rails and a screw motion mechanism

Sectioning and trimming are completed through the control system

Hand wheel balance can be locked at any position to assure user"s safety

Universal cassette clamp and standard specimen clamp; Emergency stop systems

Advanced driving systems, functions of section, trimming, fast forward, backward etc

LCD screen shows section and trimming thickness range, numbers of section and trimming



TechnicalParameters  of  semi-automatic microtome

Model

BK-3358

Section Thickness Setting Range

0 - 60μm

Trimming Thickness Setting Range

0 - 100μm

SectionThicknessRange

0 - 1μm      increment 0.25μm

1 - 10μm     increment 1μm

10 - 20μm    increment 2μm

20 - 60μm    increment 5μm

TrimmingThickness Range

0.25~60μm

MinimumSettingValue

0.25μm

 Horizontal Specimen Feed

26mm

 Horizontal Specimen Feed

52mm

Specimen Clamp Rotation

Any angle within 360 degrees

Specimen Orientation

XY – 8°

Minimum Setting of Sectioning Thickness

0.25μm

MaximumSpecimenSize

50* 50mm

PrecisionError:

±1%

Power Supply

AC220V±10%, 50/60HZ; AC110V±10%, 50/60HZ

Consumption

150W

Standard Accessories

Standard specimen clamp,Disposable blade holder,Disposablemicrotomeblade(10pc),Waste tray

External Size

520*430*330mm

Package Size

670*550*480

G.W

48kg
