Product Details

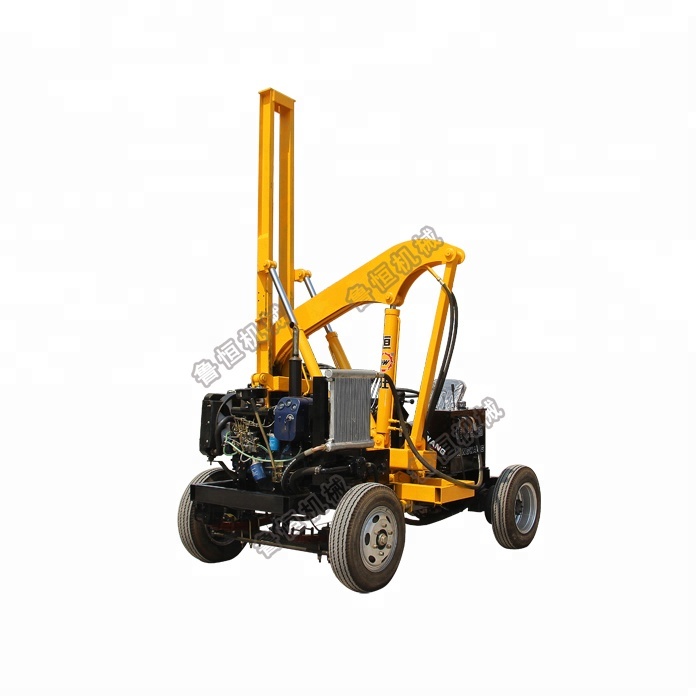

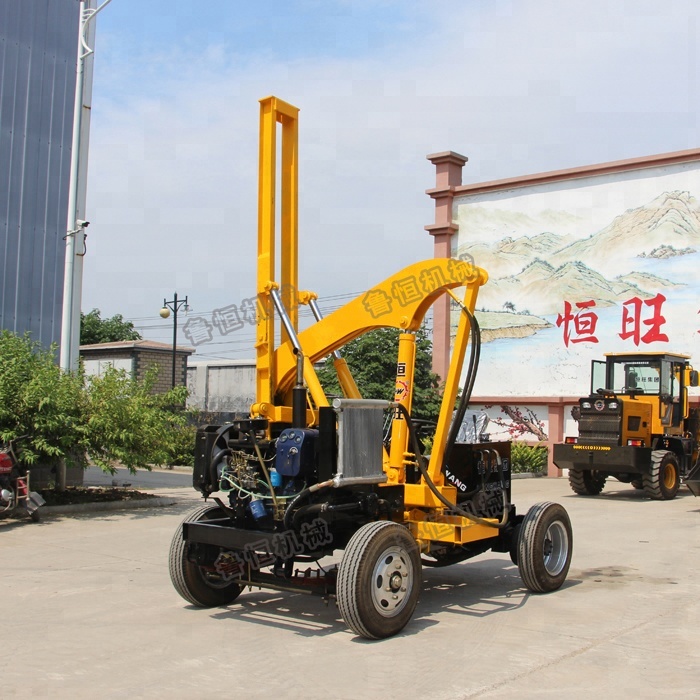

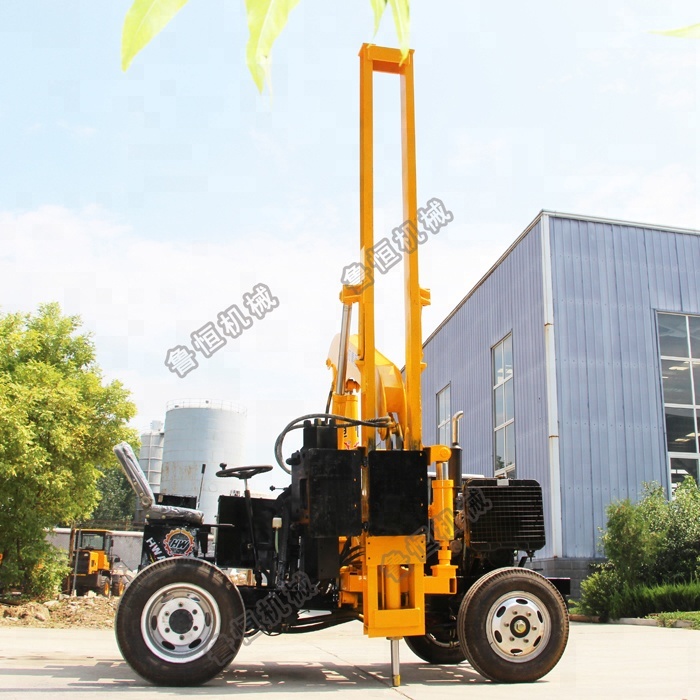

Hydraulic Driving Pile Driver for Highway Guardrail, Hydraulic Hammer for Highway Guardrail Piling
Hydraulic Driving Pile Driver for Highway Guardrail, Hydraulic Hammer for Highway Guardrail Piling
Hydraulic Driving Pile Driver for Highway Guardrail, Hydraulic Hammer for Highway Guardrail Piling
Features:
Pile Driver is composed of the chassis, guide rail, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control system, pile extracting equipment and pile drilling equipment. Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency and a low price.
Guardrail hydraulic pile driver is a kind of multi-functional guardrail installation machine which can accomplish piling, pulling, pile extracting and drilling holes on ground with the same hydraulic unit when changing another device. It can works on different pavement, such as bituminous, Cement, clay, soil, concrete, sand as well as rock etc. They are widely applied on Highway Guardrail Installation, road crash barrier construction, road maintenance work and other sites such as freeway, ordinary road, farm, pasture orchard etc.
Hydraulic Driving Pile Driver for Highway Guardrail, Hydraulic Hammer for Highway Guardrail Piling
Model | HWH-260 |
Machine weight(Kg) | 260 |
Hydraulic hammer impact frequency(Hz) | 11-15 |
Hydraulic hammer working flow(L/min) | 50-65 |
Hammer working pressure(Mpa) | 12-14 |
Diesel engine power(Kw) | 30/40 |
Hydraulic system flow(Ml/r) | 42-50 |
Rated system pressure(Mpa) | 16 |
Track distance(mm) | 1670 |
Overall dimensions (l * w * h) (mm) | 2600*2000*3600 |
Machine weight(Kg) | 3500 |
Hydraulic Driving Pile Driver for Highway Guardrail, Hydraulic Hammer for Highway Guardrail Piling
The advantages:
1.The hydraulic pile driver is easy to move.
2.The guardrail pile driver is used for road,highway and also solar equipment construction.
3.The highway pile driver is small,portable for road and highly and so on.
Hydraulic Driving Pile Driver for Highway Guardrail, Hydraulic Hammer for Highway Guardrail Piling
Hydraulic Driving Pile Driver for Highway Guardrail, Hydraulic Hammer for Highway Guardrail Piling
Hydraulic Driving Pile Driver for Highway Guardrail, Hydraulic Hammer for Highway Guardrail Piling
