Product Description

Industrial NDT 365nm LED UV Fluorescent Lamp Rechargeable Flashlight for Nondestructive Testing

Main Application of the NDT UV lamp

Fluorescent Penetrate Testing
Fluorescent Magnetic Particle Flaw Detection
Fluorescence Leak Detection

Other Application

Oil and Stain detection, special gas, oil and gas pipeline inspection, Fluorescence Reflectance Detection of Special Substances, Criminal investigation and forensic investigation, Paper currency identification, gem appreciation, agriculture, food, medical and other related industries.

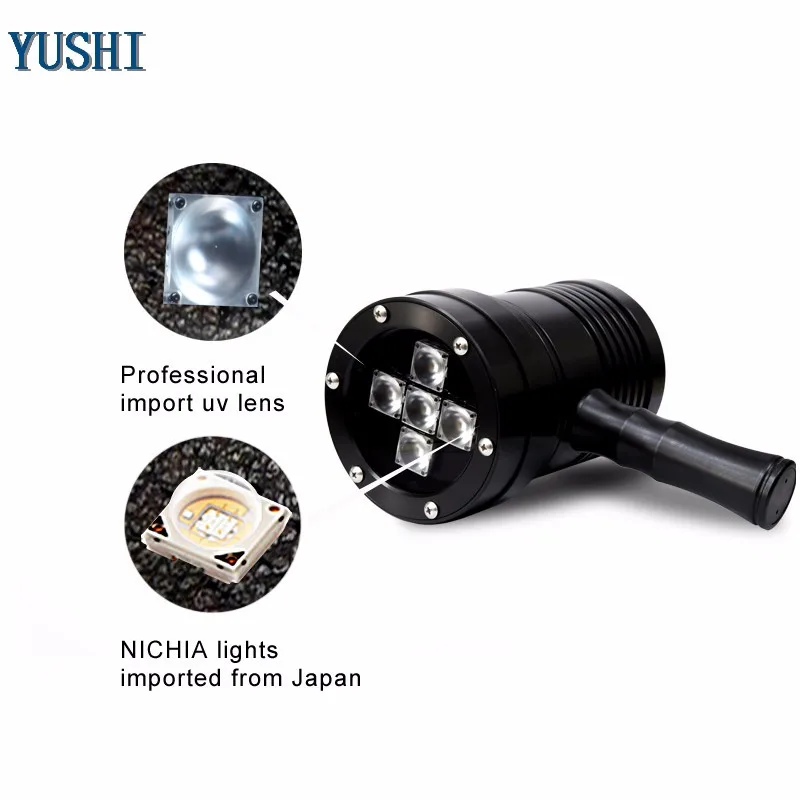

Detailed Images

Waterproof and Dustproof testing.

The product has passed through International Standard of IEC 60529 --Housing Protection Grade(IP66)--dustproof and waterproof testing, wider working environment and more reliable.

Product Parameter

Name	UV lamp light flashlight
Model	VM100
Power Supply	AC
Lamp Beads	NICHIA 365nm Ultraviolet band LED Lamp Beads
Lamp Bead Amount	5
Input Voltage	100-240VAC
Output Power	15W
Intensity of Ultraviolet Ray at 38cm Distance	≥16000uW/cm2
Irradiated Area at 38cm Distance	￠200mm
Diameter of Light Inlet Window	￠88
Outline Dimension	￠123 mm×190 mm×120 mm
Weight(including Battery)	1290g

More Types

Model	VM10	VM30	VM50	VM70	VM100D
Power Supply	Chargeable Battery	Chargeable Battery	Chargeable Battery	Chargeable Battery	AC or Chargeable Battery Group
Lamp Beads	NICHIA 365nm Ultraviolet band LED Lamp Beads
Lamp Bead Amount	1					3	4
Input Voltage	3.7-4.2V	3.7-4.2V	3.7-8.4V	3.7-4.2V	100-240VAC
Output Power	3W					9W	12W
Intensity of Ultraviolet Ray at 38cm Distance	≥10000uW/cm²	≥13000uW/cm²	≥17000uW/cm²	≥20000uW/cm²	≥11000uW/cm²
Irradiated Area at 38cm Distance	￠43mm	￠45mm	￠55mm	￠80mm	￠200mm
Diameter of Light Inlet Window	￠22mm	￠34mm	￠55mm	￠50mm	￠88mm
Battery Model	ICR 18650	ICR 26650	ICR 26650	ICR 18650	ICR 18650--2600mAh 3.7V
Battery Capacity	2600mAh	4800mAh	4800mAh	2600mAh
Number of Battery	1	1	2	4	2﹡4
Charging Time	≥5H	≥6H	≥7H	≥5H	≥4H
Working Hours	≥4H	≥5H	≥8H	≥5H	≥7H
Battery Life	More than 500 time for fully charge and discharge
Outline Dimension	￠28 mm	￠40 mm	￠62 mm	￠60 mm	￠123 mm
		￠24 mm	￠33 mm	￠34 mm	￠50 mm	190 mm
		128 mm	144 mm	240 mm	143 mm	120mm
Weight(including Battery)	140g	240g	520g	610g	1560g
