Products Description

General information

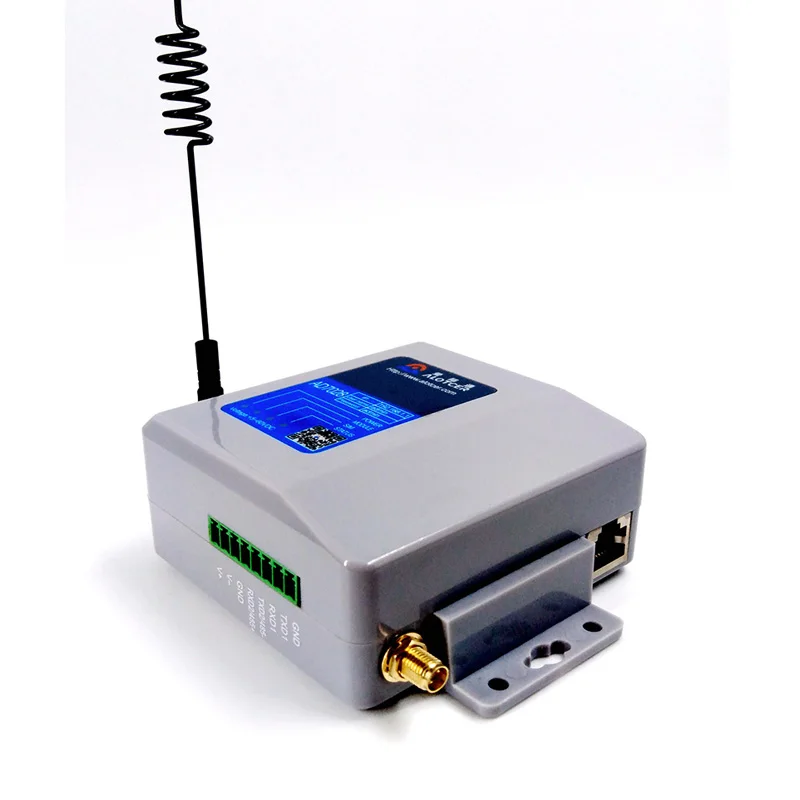

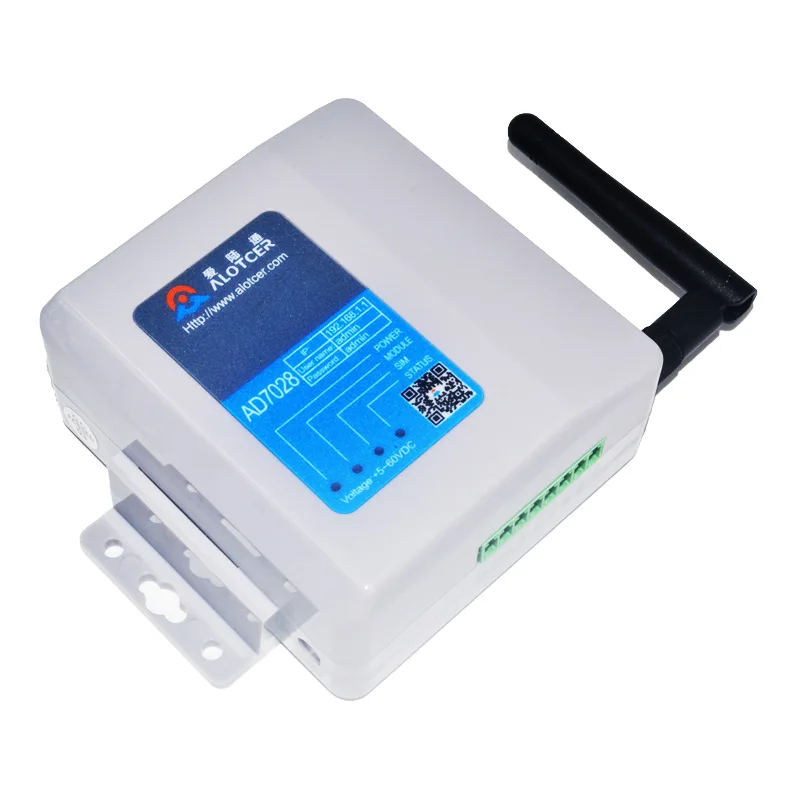

AD7028 Cellular Router is a kind of cellular terminal device that developed based on 2G/3G/4G LTE connectivity, VPN client, among other features. It adopts high-powered industrial 32 bits CPU and embedded real time operating system. It supports 2 separate RS232 (or 1 RS232 and 1 RS485) and 1 LAN port that can conveniently and transparently connect one device to a cellular network. It support wide power range 5-60V DC. With a compact and robust design, it includes the necessary accessories for Mount kit or DIN rail. It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
Item
Contents
Hardware
System
CPU
Industrial 32 bits CPU
FLASH
16MB (Extendable to 64MB)
SDRAM
128MB







Interface




Serial
2 RS232 ports (or 1 RS232 and 1 RS485), 15KV ESD protection
Serial port: 8PIN industrial terminal, 3.81mm pitch
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
Large serial port data
cache:10MB
LAN
1 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Antenna
Standard SMA female interface, 50 ohm
SIM/UIM
Standard 3V/1.8V user card interface, 15KV ESD protection
Power
Terminal block interface, reverse-voltage and over voltage protection
Reset
Inside the module. Press this key for 8 seconds to restore the module to its original factory default settings
Indicator
“POWER”、”MODULE”、”SIM”、”STATUS”


Network
Wireless Network
GSM/GPRS/EDGE: 850/900/1800/1900MHz CDMA: 800/1900MHz
WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz CDMA2000 1x/ EVDO Rev. A:
800/1900MHz TD-S
CDMA: 1880-1920/2010-2025MHz(A/F)
TDD-LTE:Band 38/39/40/41& Band 61/62 (Private Network)
FDD-LTE:Band1/2/3/4/5/7/8/12/13/17/18/19/20/21/25 /26/28/66
PPP Protocol
Support PPP Protocol
PPP Heartbeat
Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial-up link.
Network Authentication
Support CHAP/PAP Authentication
TCP Heartbeat
Monitor the server connection

Power supply
Power range
DC 5~60V, Recommended 12VDC
Communication Current
<410MA(@12VDC)
Standby Current
<250MA(@12VDC)

Physical
Shell Material
ABS
Dimensions
108.43x85x40.7mm
Weight
126g
Installation
Mount Kit or DIN Rail 35mm (optional)
Environmental Limits
Operating Temperature
-35~+75ºC (-31~+167℉)
Storage Temperature
-40~+85ºC (-40~+185℉)
Operating Humidity
95% ( unfreezing)
Details Images
Hights
Certifications
Product packaging
Our Company
Xiamen Alotcer Communication Technology Co., Ltd. is a leading provider of M2M, IOT communication products and solutions.vDeeprooted in Networking Wireless Communications for 5 years, both from the product quality and the company's scale are in theindustry-leading level. We have obtained SGS certification and are ISO9001 certified, along with CE, FCC, EMC, ROHS, RED NationalNetwork Center certifications. There are more than 200 employers in Alotcer, R & D personnel is about 30%, and with 3000 squaremeters of office space. Because focused, so specialized. Our products are sold all over the world and well received by customers.
FAQ
1.What's the shipping cost? Shipping bia DHL, UPS, Fedex, TNE is 3-5 days. For 1 pc router,shipping cost is 23 USD to United Sates by Express DHL. 2.What's the package? Industrial package with 10 pcs router in a main box, 1kg/pc. 3.What's the warranty? Repair rate less than 0.1%, even after a one- year warranty, we will only charge a small amount of maintenance cost. 4.How can i visit you? You are welcome to visit Alotcer in Xiamen,China. And we have booth world wide every year.
