JC03218B-36W Double Row 7 Inch 36W LED Bar Light Off road Car Truck Boats Driving Lamps Fog Off road

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    Guangdong Foshan

  • Categories:Auto Lighting System
  • Validity Period:

    Long Term

  • Published on:

    2019-09-03 08:41

  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

Guangdong Foshan

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details






ModelJC03218B-36W
Power36W
Input Voltage9~32VDC, as well 12V &24V.
LEDs ChipCrees chip (Made in USA)
Lumen100 LM/W
MaterialDie-cast aluminum housing
LEDs12 PCS*3W Crees chip
Optional BeamSpot/Flood
Size(mm)167*73*107 mm (7 inch)
IPIP67
Life TimeMore than 30,000 hours
Lens MaterialPC
Color Temperature6000K
Working Environment-40℃~+80℃
Warranty1 year
CertificateCE,RoHS,IP67, EMC.

For similar product, please go to  JC03218A series


JC03218B LED Light Bar Series


MODEL

INCH


LED(PCS)

WATT

RAW

LUMANS

EFFECTIVE

LUMANS

SIZE

(MM)

INPUT

VOLTS

QTY/CTN

JC03218B-18W4"618W1800LM
1548LM
 99*73*1079-32V
20
JC03218B-36W7"1236W3600LM
3096LM
167*73*1079-32V
12
JC03218B-54W9"1854W5400LM
4644LM
235*73*1079-32V
12
JC03218B-72W12"2472W7200LM
6192LM
305*73*1079-32V
12
JC03218B-126W20"42126W12600LM
10836LM
505*73*1079-32V
6
JC03218B-234W36"78234W23400LM
20124LM
914*73*1079-32V
4
JC03218B-252W39"84252W25200LM
21672LM
980*73*1079-32V
4
JC03218B-288W44"96288W28800LM
24768LM
1116*73*1079-32V
4
JC03218B-324W49"108324W32400LM
27864LM
1252*73*1079-32V
4

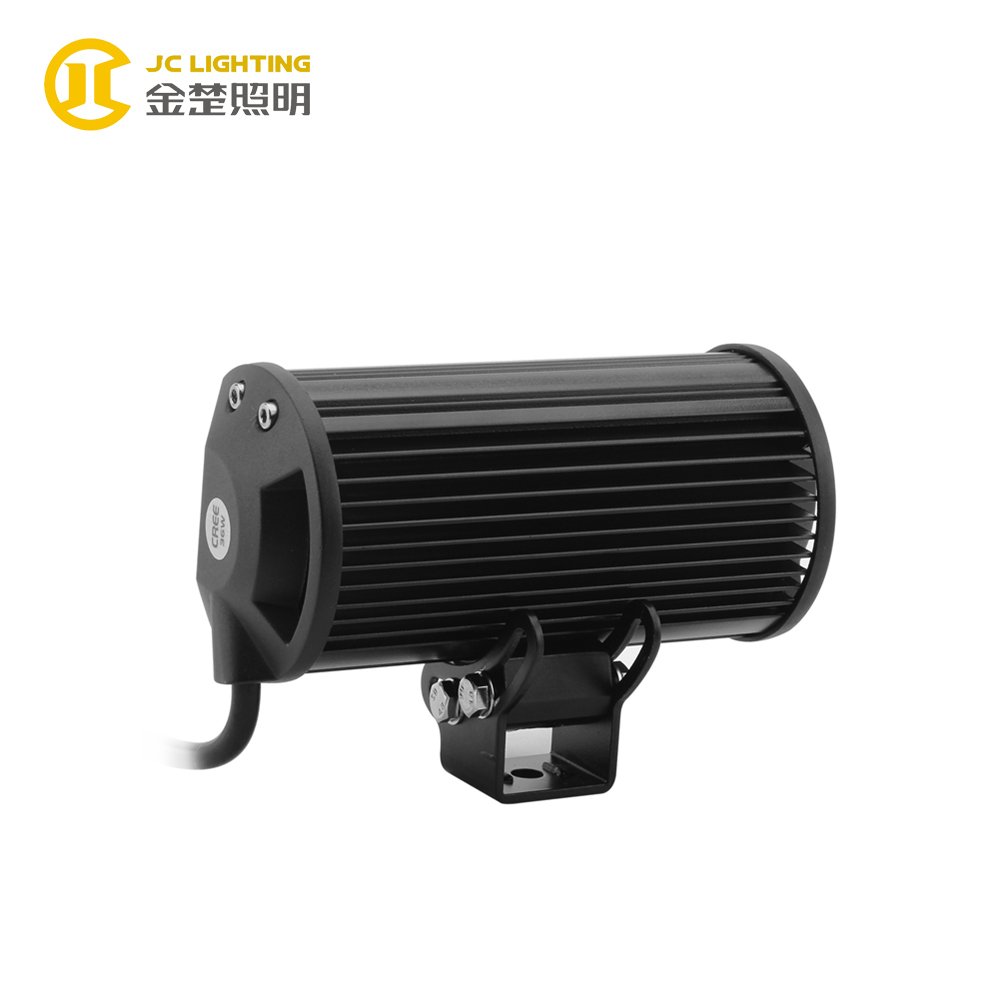

> Double Row LED light bar 36W use Crees LED chip.

> 3mm GE PC lens from USA, same material as high speed rail windshield.

> Vertical fins maximize heat dissipation, advanced heat sink designed to prolong the life of the LEDs.

> The 36W LED light bar output is simply phenomenal, they produce a mass of clean white daylight (6000K).

> Two types of mounting brackets for optional: bottom mounting bracket and side mounting bracket. The bracket is easy to install.

> 1 year warranty, CE, RoHS, IP67, EMC approved.

PS: Cree 36W LED work light bar support OEM, ODM!
