Product Details

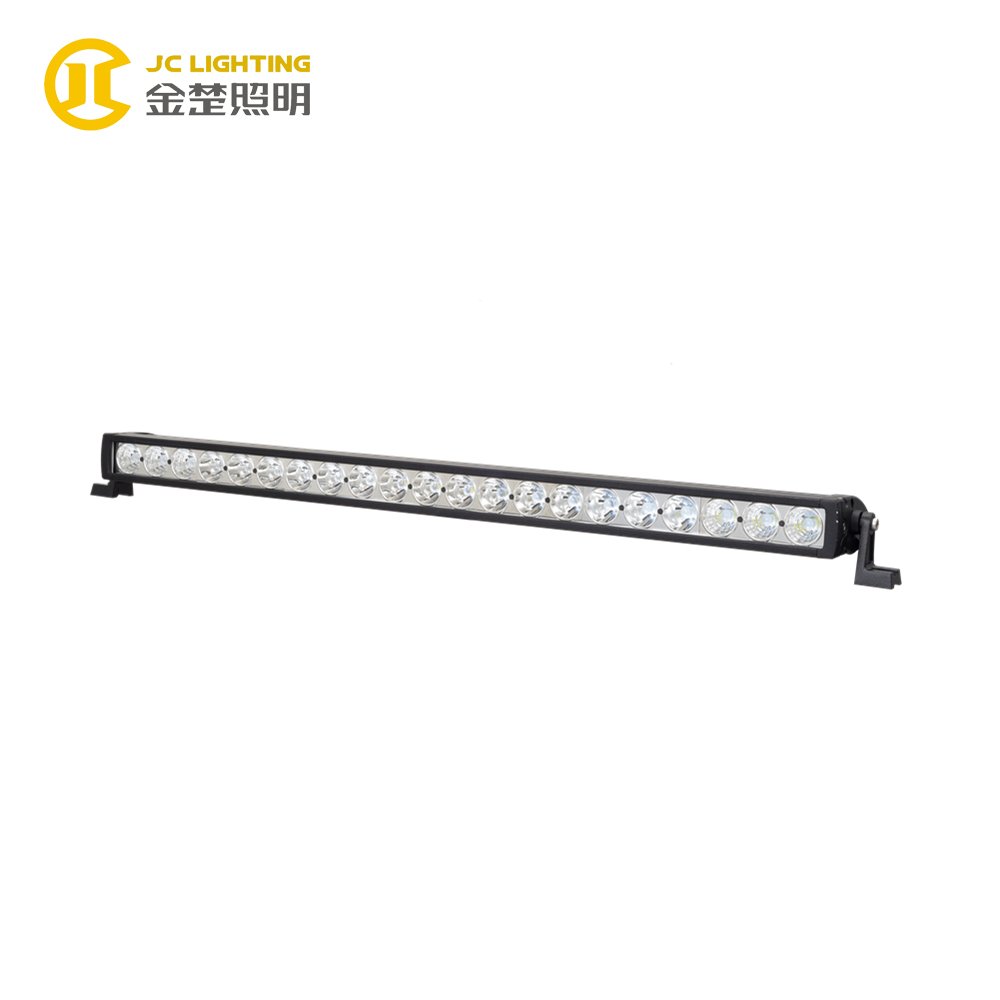

| Model | JC05118S-105W |
| Watt | 105W |
| Voltage | 9~36V DC |
| LED | 21PCS*5W Cree chip(Made in USA) |
| Material | Die-cast aluminum housing,PC lens |
| Size | 736*45*92mm(29inch) |
| Raw Lumens | 10395LM |
| Optional Beam | Spot/Flood/Combo |
| Dust-proof&Waterproof Rating | IP67 |
| Color Temperature | 6000K |
| Working Environment | -40°C~+80°C |
| Certificates | CE,RoHS,IP67,EMC |
| Warranty | 1 year |
| Life Time | More than 30,000hours |
For similar products, please go to JC10118B-210W.
For the whole series of 5W LED light bar, please check here: JC05118S series.
JC05118S LED Light Bar Series
MODEL | INCH | LED (PCS) | WATT | RAW LUMANS | EFFECTIVE LUMANS | SIZE (MM) | AMPS /12V | INPUT VOLTS | QTY /CTN |
| JC05118S-15W | 5" | 3 | 15W | 1485LM | 1032LM | 125*45*92 | 0.96 | 9-36V | 20 |
| JC05118S-30W | 9" | 6 | 30W | 2970LM | 1748LM | 227*45*92 | 1.92 | 9-36V | 16 |
| JC05118S-45W | 13" | 9 | 45W | 4455LM | 2508LM | 330*45*92 | 2.75 | 9-36V | 16 |
| JC05118S-60W | 17" | 12 | 60W | 5940LM | 3496LM | 432*45*92 | 3.83 | 9-36V | 8 |
| JC05118S-75W | 21" | 15 | 75W | 7425LM | 4408LM | 532*45*92 | 4.79 | 9-36V | 6 |
| JC05118S-90W | 25" | 18 | 90W | 8910LM | 5244LM | 635*45*92 | 5.75 | 9-36V | 6 |
| JC05118S-105W | 29" | 21 | 105W | 10395LM | 6156LM | 736*45*92 | 6.71 | 9-36V | 6 |
| JC05118S-120W | 33" | 24 | 120W | 11880LM | 6840LM | 840*45*92 | 7.5 | 9-36V | 6 |
| JC05118S-150W | 41" | 30 | 150W | 14850LM | 8740LM | 1043*45*92 | 9.58 | 9-36V | 4 |
| JC05118S-180W | 49" | 36 | 180W | 17820LM | 10488LM | 1246*45*92 | 11.5 | 9-36V | 2 |
> 21 PCS*5W Cree LED chips from USA.
> High quality and competitive price.
> The 3mm GE PC Lens with high transmittance, anti high/low temperature burst.
> Die-cast aluminum housing, passed through the shock test, waterproof test, anti-shock, unique design for heat-sink.
> Aging test 8 hours for 105W LED light bar.
> 1 year warranty of light LED bar, CE, RoHS, IP67, EMC approved.
> Lifespan more than 30,000 hours.
PS: Cree LED light bar 105W offroad support OEM, ODM.
