Product Details
| Model | JC10118B-270W |
| Watt | 270W |
| Voltage | 9~60V DC |
| LED | 27 PCS*10W (Cree XM-L2 LED) |
| Material | Die-cast aluminum housing, PC lens |

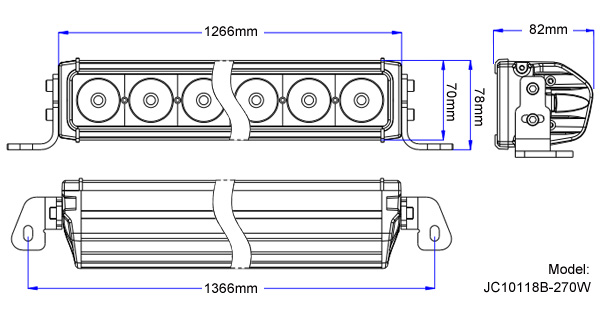

| Size | 1266*70*82 mm (50 inch) |
| Raw Lumens | 23220 LM |
| Optional Beam | Spot/Flood/Combo |
| Dustproof & Waterproof Rating | IP67 |
| Color Temperature | 6000K |
| Working Environment | -40°C~+80°C |
| Certificates | CE, RoHS, IP67, EMC |
| Warranty | 1 year |
| Life Time | More than 30,000 hours |
Other single row light bar, please refer to JC10418B-270W, JC10418B series page.
For the whole series of 10W LED light bar, please check here: JC10118B series.
JC10118B LED Light Bar Series
MODEL | INCH | LED (PCS) | WATT | RAW LUMANS | EFFECTIVE LUMANS | SIZE (MM) | AMPS/12V | INPUT VOLTS | QTY/CTN |
| JC10118B-30W | 6.4" | 3 | 30W | 2580LM | 1892LM | 162*70*82 | 1.85 | 9-60V | 12 |
| JC10118B-60W | 12" | 6 | 60W | 5160LM | 3784LM | 300*70*82 | 3.7 | 9-60V | 12 |
| JC10118B-90W | 17" | 9 | 90W | 7740LM | 5762LM | 438*70*82 | 5.55 | 9-60V | 6 |
| JC10118B-120W | 23" | 12 | 120W | 10320LM | 7654LM | 576*70*82 | 7.4 | 9-60V | 6 |
| JC10118B-150W | 28" | 15 | 150W | 12900LM | 9546LM | 714*70*82 | 9.25 | 9-60V | 6 |
| JC10118B-180W | 33.5" | 18 | 180W | 15480LM | 11438LM | 852*70*82 | 11.1 | 9-60V | 6 |
| JC10118B-210W | 39" | 21 | 210W | 18060LM | 13330LM | 990*70*82 | 12.95 | 9-60V | 4 |
| JC10118B-240W | 44" | 24 | 240W | 20640LM | 15308LM | 1128*70*82 | 14.8 | 9-60V | 4 |
| JC10118B-270W | 50" | 27 | 270W | 23220LM | 17200LM | 1266*70*82 | 16.65 | 9-60V | 2 |
> IP67, great performance of waterproof, dustproof, shockproof

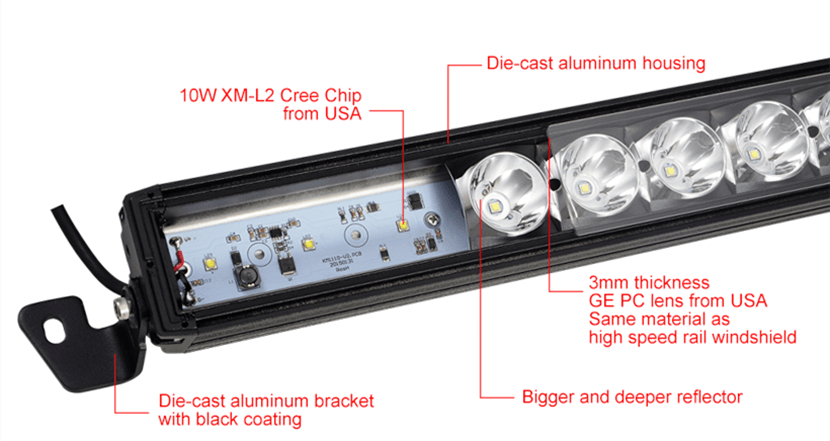

> Die-cast aluminum housing, vertical fins on the back, great cooling function
> Each chip of this 50 Inch LED Light Bar is sitting in their individual reflector which is wider and deeper than normal reflector, good optical efficiency
> 10 degrees spotlight
> Three kinds of mounts for options: bottom mount bracket, side mount bracket or telescopic mount bracket.
> Composed of 27 pieces 10W Cree LEDs, total of 270W at 6300K color temperature with 23220 lumens
> The operating voltage range of this 50 inch LED light bar is super wide: 10~60V DC
