Product Details

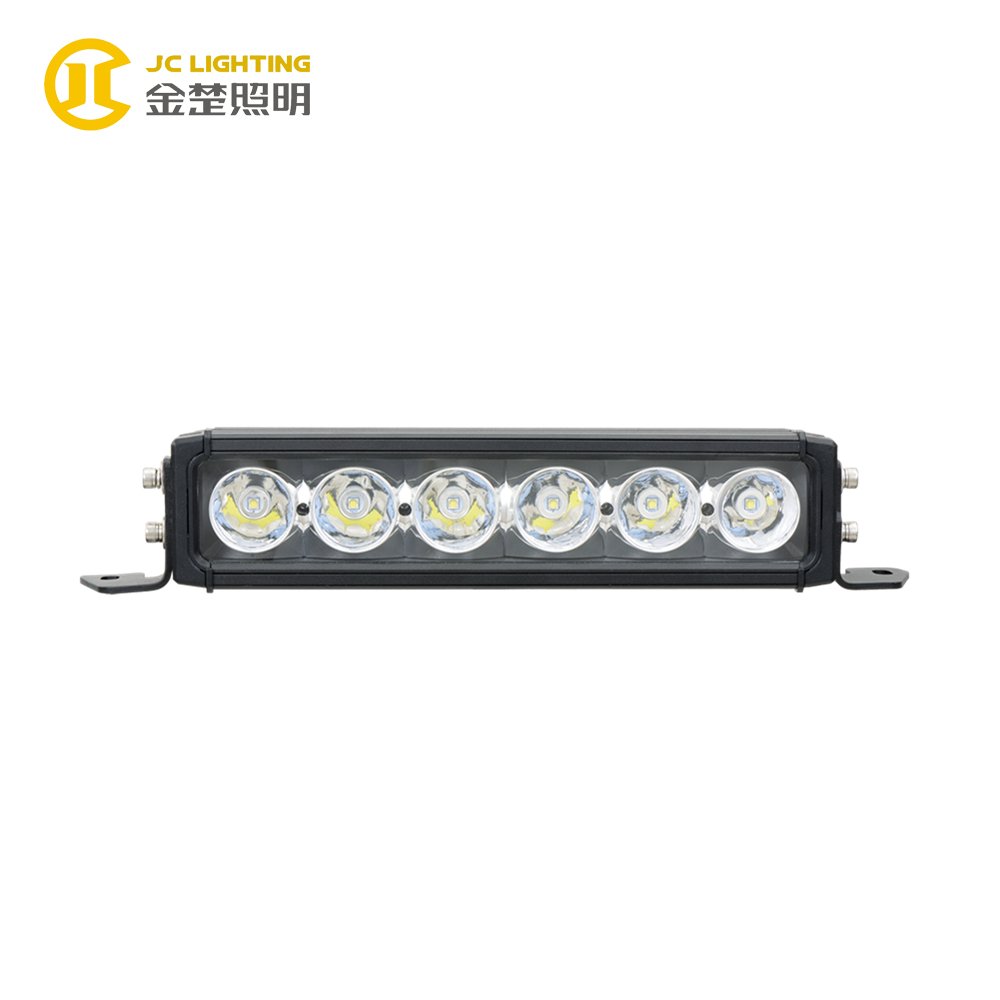

| Model | JC10118B-60W |
| Watt | 60W |
| Voltage | 9~60V DC |
| LED | 6 PCS*10W (Cree XM-L2 LED) |
| Material | Die-cast aluminum housing, PC lens |
| Size | 300*70*82 mm (12 inch) |
| Raw Lumens | 5160 LM |
| Optional Beam | Spot/Flood |
| Dustproof & Waterproof Rating | IP67 |
| Color Temperature | 6300K |
| Working Environment | -40°C~+80°C |
| Certificates | CE, RoHS, IP67, EMC |
| Warranty | 1 year |
| Life Time | More than 30,000 hours |
We also have other 60W LED work lights, here is the link: JC1006A-60W and JC0512A-60W.
For the whole series of 10W LED light bar, please check here: JC10118B series.
JC10118B LED Light Bar Series
MODEL | INCH | LED (PCS) | WATT | RAW LUMANS | EFFECTIVE LUMANS | SIZE (MM) | AMPS/12V | INPUT VOLTS | QTY/CTN |
| JC10118B-30W | 6.4" | 3 | 30W | 2580LM | 1892LM | 162*70*82 | 1.85 | 9-60V | 12 |
| JC10118B-60W | 12" | 6 | 60W | 5160LM | 3784LM | 300*70*82 | 3.7 | 9-60V | 12 |
| JC10118B-90W | 17" | 9 | 90W | 7740LM | 5762LM | 438*70*82 | 5.55 | 9-60V | 6 |
| JC10118B-120W | 23" | 12 | 120W | 10320LM | 7654LM | 576*70*82 | 7.4 | 9-60V | 6 |
| JC10118B-150W | 28" | 15 | 150W | 12900LM | 9546LM | 714*70*82 | 9.25 | 9-60V | 6 |
| JC10118B-180W | 33.5" | 18 | 180W | 15480LM | 11438LM | 852*70*82 | 11.1 | 9-60V | 6 |
| JC10118B-210W | 39" | 21 | 210W | 18060LM | 13330LM | 990*70*82 | 12.95 | 9-60V | 4 |
| JC10118B-240W | 44" | 24 | 240W | 20640LM | 15308LM | 1128*70*82 | 14.8 | 9-60V | 4 |
| JC10118B-270W | 50" | 27 | 270W | 23220LM | 17200LM | 1266*70*82 | 16.65 | 9-60V | 2 |

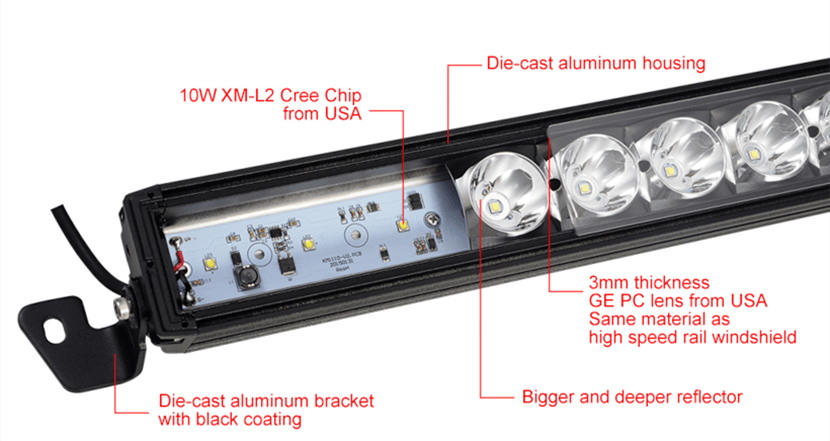

> 10 Watt XM-L2 Cree LED for ultimate distance and output
> With three kinds of mount bracket options (bottom, side, telescopic).

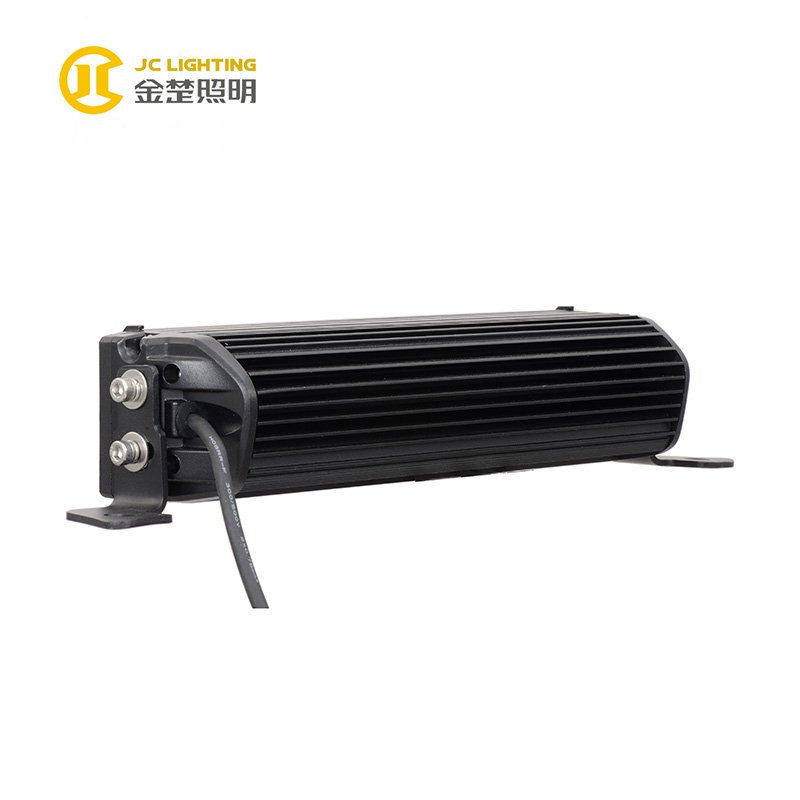

> New lifespan-boosting heat sink design
> This Cree led light bar features deeper and wider reflector along with high intensity Cree LEDs for long-distance light projection, will virtually turn night into day with its powerful spotlight.
> The 60W Cree LED light bar is housed in a die-cast aluminum.
> The various features of 60W Cree led light bar include heating elimination, IP67 dustproof and waterproof. It's reliable for harsh condition
> 30,000 operating hours
