Product Details

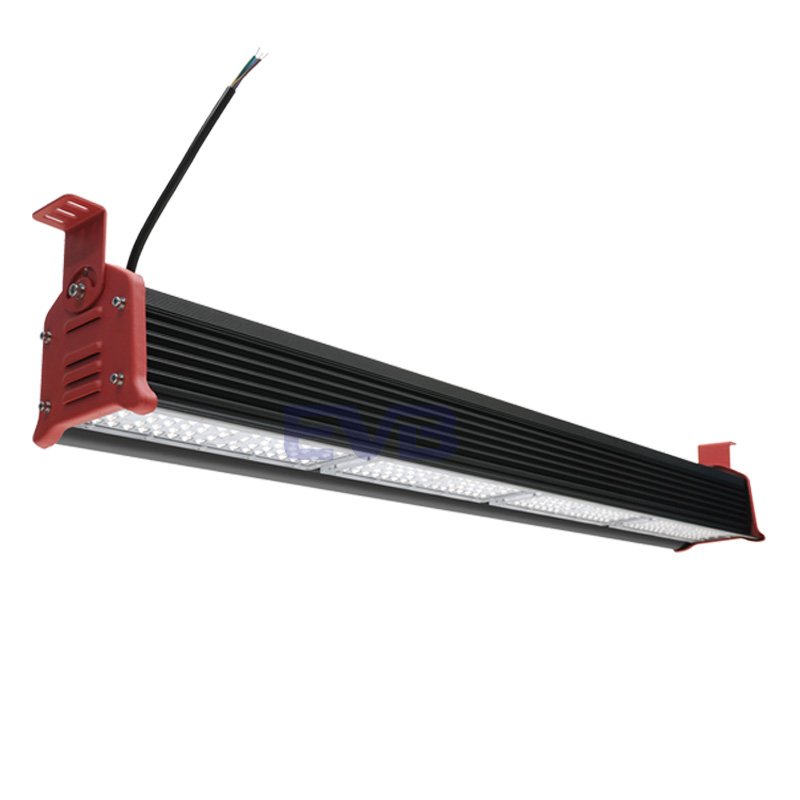

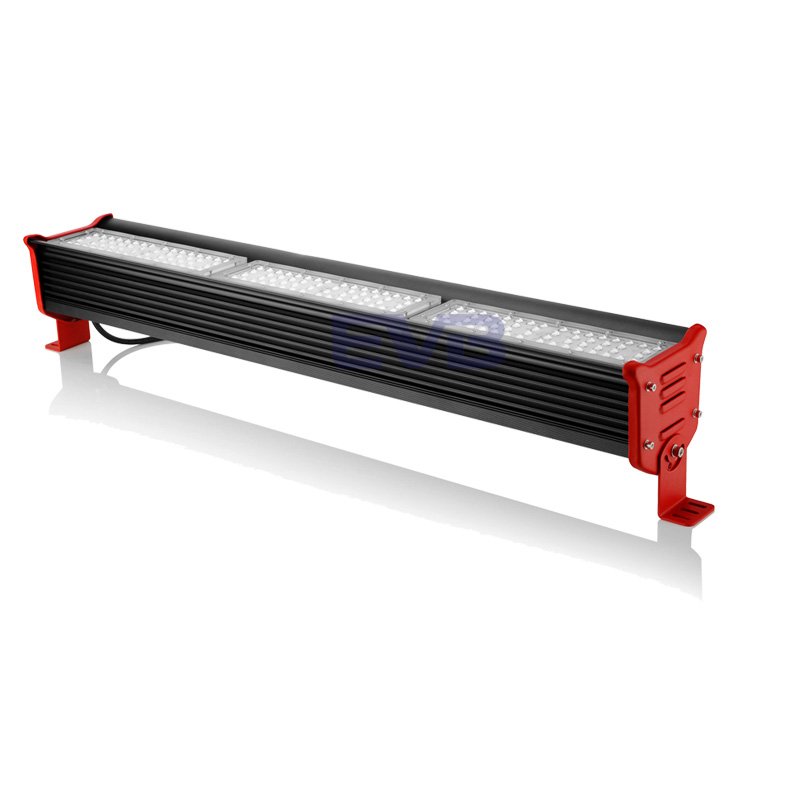

High bay Light
LED Linear high bay
1.6063 Aluminum housing, with great heat dissipation.
2.High power, 50-400W available.
3.IP65 waterproof, widely applications.
4.High efficiency of 130lm/w.
5.Philips EMC3030 LED.
6.Meanwell driver, PF>0.93, AC90-305V or DC127-431V input.
7.Different beam angles for different application and installation height.
8.IK10.
9.Lifespan more than 50,000 hours, 5 years warranty.
10.TUV CE, CB, RoHS, SAA approval.
| product name | item No. | power | lumen | LED quantity | CCT | beam angle | CRI | size(mm) |
| LED Linear high bay | SL-HB-CDP56H50 | 50W | 6500 | 56 | 3000-6500K | 30°/30*70°/60°/60*90°/90°/70*145°/80*150° | 80 | 285*140*125 |
| LED Linear high bay | SL-HB-CDP112H100 | 100W | 13500 | 112 | 3000-6500K | 30°/30*70°/60°/60*90°/90°/70*145°/80*150° | 80 | 555*140*125 |
| LED Linear high bay | SL-HB-CDP168H150 | 150W | 19500 | 168 | 3000-6500K | 30°/30*70°/60°/60*90°/90°/70*145°/80*150° | 80 | 825*140*125 |
| LED Linear high bay | SL-HB-CDP224H200 | 200W | 26000 | 224 | 3000-6500K | 30°/30*70°/60°/60*90°/90°/70*145°/80*150° | 80 | 1095*140*125 |
| LED Linear high bay | SL-HB-CDP336H300 | 300W | 39000 | 336 | 3000-6500K | 30°/30*70°/60°/60*90°/90°/70*145°/80*150° | 80 | 825*290*125 |
| LED Linear high bay | SL-HB-CDP448H400 | 400W | 52000 | 448 | 3000-6500K | 30°/30*70°/60°/60*90°/90°/70*145°/80*150° | 80 | 1095*290*125 |
Quality Assurance of LED Light
The warranty time is three years. Within Warranty period, if under the usage of instruction sheet, any products broken or damage, we will offer the repair service for free or replace for free.
Warranty time is start with the date of manufacturer. If any special circumstances, the user, sales agent, manufactures can negotiate
Even if within the warranty period, if the following occurs, certain maintenance costs will be charged.
◪ 1.The malfunction and damaged caused by incorrect use, the unauthorized repairs |
◪2.The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage. |
◪ 3.The product malfunction caused by not in accordance with the user manual operation |
◪ 4.The malfunction and damaged caused by the other barriers (man made factors or external device). |
◪ 5.Free replace during the warranty period, please be sure to fill out the warranty card correctly |
◪ 6. The repair after warranty period, we offer repair with part of the products: power supply and LED, and changing only the costs of components. |
◪ 7.Any problems in the after service, please contact our agents or us directly. |
