Product Details

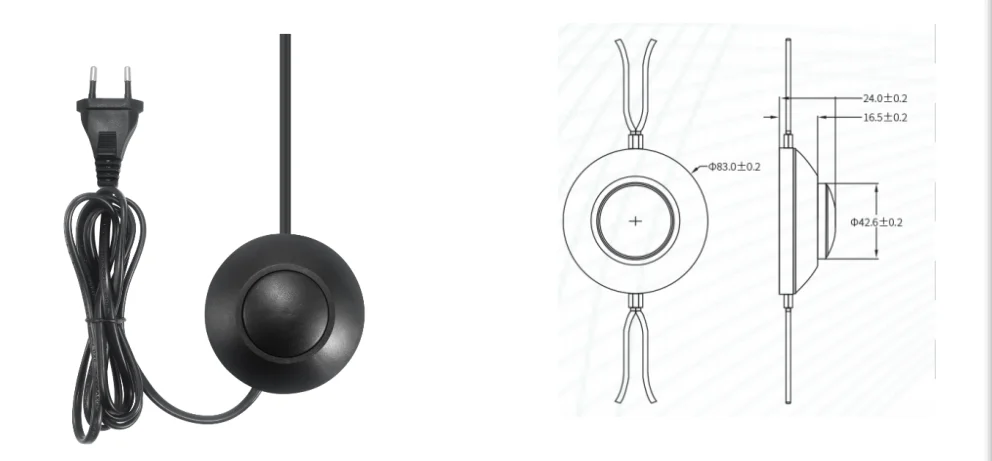

Foot dimmer switch's features
1.Minimum load 3W, compatible with incandescent bulb and dimmable LED lamps.
2.No Neutral required, easy for installation.
3.Colorful LED indicator design will guide user to find out problems easily.
4.Built in Short-circuit, overload and over temperature protection, make sure the connection safe when wrong wiring or failure load.
5.Resettable electronic circuit protection design replace the traditional fuse design, resettable protection make the dimmer will survive in wrong wiring or failure load. when problem is fixed and reset, the dimmer will keep working as normal.
Spec
|
Model No. |
FT-200W-001 |
|
Halogen/ Incandescent |
2-200W |
|
Input Voltage |
AC 200-240V 50Hz |
|
Temperature |
-5 ~40°C |
|
Dimming Mode |
Trailing Edge |
|
Over load protect |
Yes |
|
Maximum Load |
200W |
|
Short Circuit protect |
Yes |
|
Minimum Load |
2W |
|
LED Indicator |
Yes |
|
LED lamps |
2-150W |
|
Certificate |
CE & RoHS |

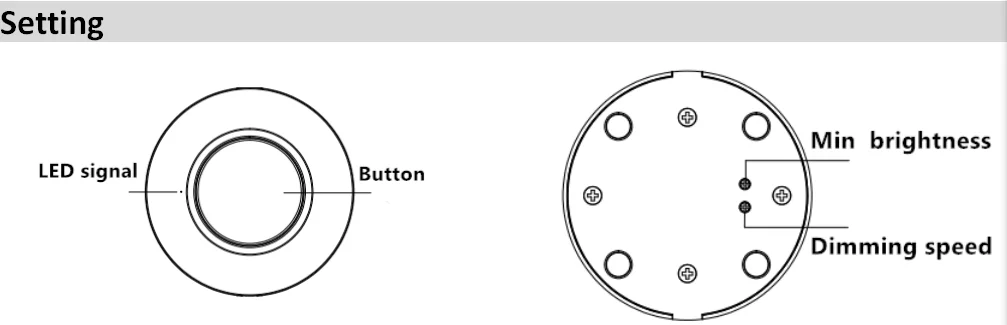

Press Button
ON/OFF/DIM via press button switch
A quick press turn on or off the lamps,A long press for dimming to Max brightness level or Min level
Dimming Speed
It allows user adjust dimming speed as request
Min Brightness
Setting the minimum light with MIN, make the light stable.
LED signal
Light up when power on:
Green light- Wiring and loading well.
Red light- 1. Short-circuit problem happened in the connection.
2. Wrong operation warning- The user didn’t Switch off electricity before changing loading lamp.
3. Yellow Lighting- Total loading lamp’s power consumption is beyond the the dimmer Maximum load limited.
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days,and mass production time needs 1-2 weeks.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
- Port:Shenzhen
- Lead Time :3-7 days after payment received
Our service
1.Your inquiry will be replied in 24 hrs;
2.Your special requirement about led light can be accepted;
3.Discount is available according to your order quantity;
4.Excellent after sale service;
5.Reliable warrant.
