Wavelength: 270-280nm+400-410nmLED Source: UVC+UVA
Bacteria Killing rate: 99.9%
IP Rate: IP20 Ambient temperature: -20°C~+50°C
Brand： |
none |
Address： |
China |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Product Details
LEDYi factory UVC germicidal UVA SMD3535 12/18/24leds UVA light flexible UVC Led strip
Product Description

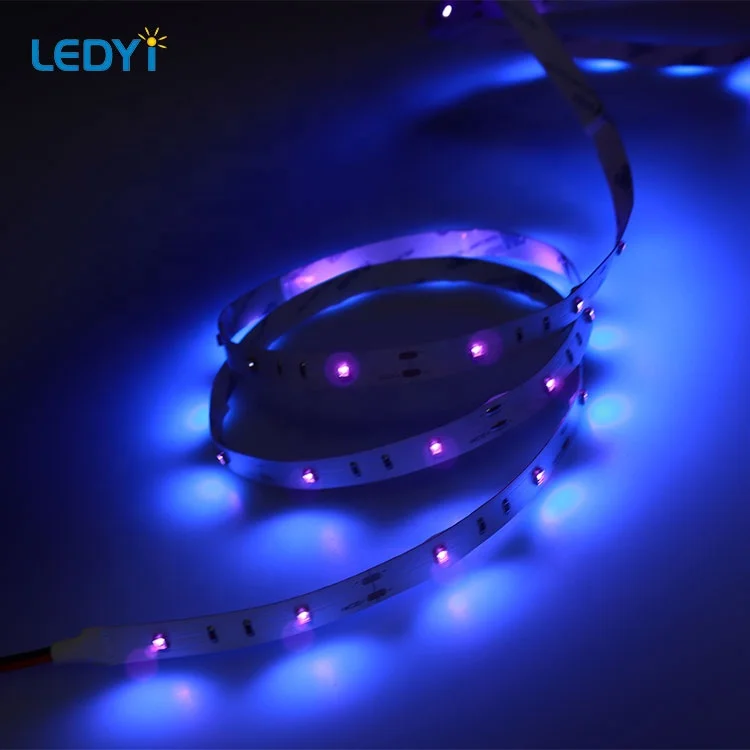

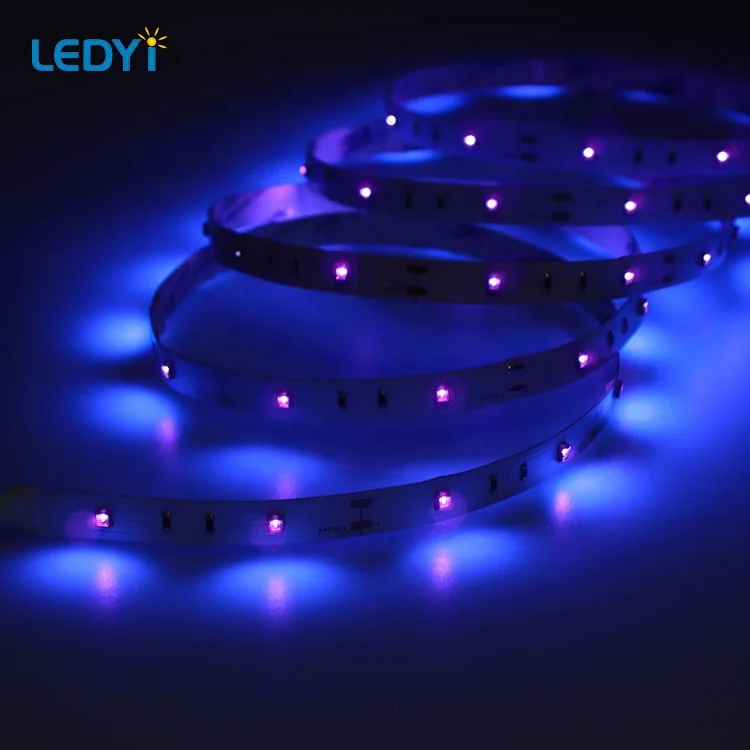

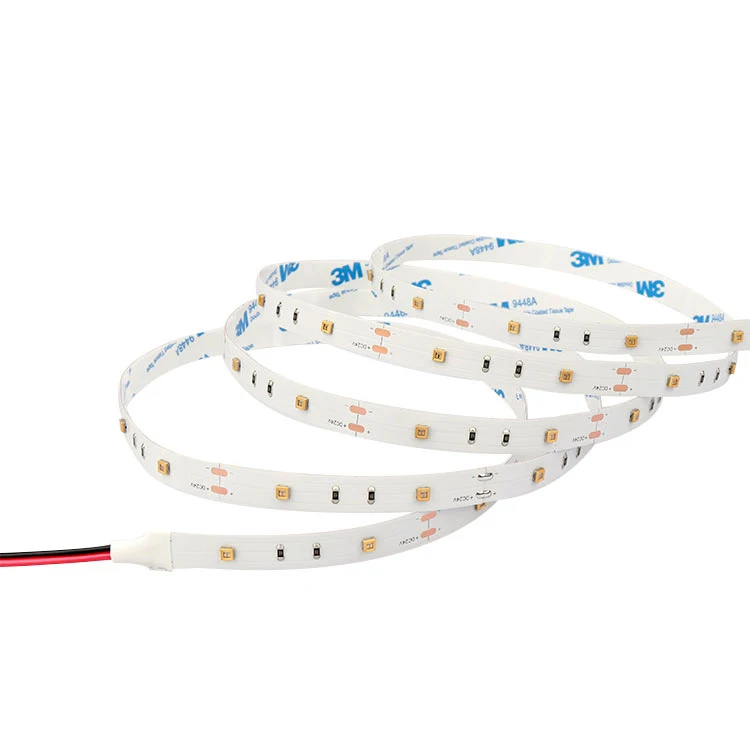

Flexible UVC UVA LED Strip
Dimension: 5000mm x 10mm x1.2mm LED QTY: 12LEDs/m; 18LEDs/m; 28LEDs/m Power(w/m): 2.88W; 4.32W; 6.72W Voltage(V): DC24V
Wavelength: 270-280nm+400-410nmLED Source: UVC+UVA
Bacteria Killing rate: 99.9%
IP Rate: IP20 Ambient temperature: -20°C~+50°C
Wavelength: 270-280nm+400-410nmLED Source: UVC+UVA
Bacteria Killing rate: 99.9%
IP Rate: IP20 Ambient temperature: -20°C~+50°C
Product Paramenters
Description:
LED UVC LED Strip Light can be used for daily disinfection of wardrobes, cabinets, jewelry showcases, supermarket shelves, etc.
The whole lamp adopts UVA + UVC. LED light source kills bacteria up to 99.9%, and is compatible with the LED flexible strip light
to achieve the the integration of lighting and disinfection;
1. Modularized ultra-thin and ultra-narrow design, the strip light to realize the integration of lighting and disinfection;
2. The UVA + UVC LED light source can efficiently kill germs, and the killing rate of Escherichia coli, Staphylococcus aureus and
Candida albicans can reach 99.9%;
3. 3M tape on the back for easy installation.
The whole lamp adopts UVA + UVC. LED light source kills bacteria up to 99.9%, and is compatible with the LED flexible strip light
to achieve the the integration of lighting and disinfection;
1. Modularized ultra-thin and ultra-narrow design, the strip light to realize the integration of lighting and disinfection;
2. The UVA + UVC LED light source can efficiently kill germs, and the killing rate of Escherichia coli, Staphylococcus aureus and
Candida albicans can reach 99.9%;
3. 3M tape on the back for easy installation.
What is Ultraviolet?
Ultraviolet (UV) light is one form of electromagnetic energy produced naturally by the sun. UV is a spectrum of light just below
the visible light and it is split into four distinct spectral areas – Vacuum UV or UVV (100 to 200 nm), UVC (200 to 280 nm), UVB
(280 to 315 nm) and UVA (315 to 400 nm).
the visible light and it is split into four distinct spectral areas – Vacuum UV or UVV (100 to 200 nm), UVC (200 to 280 nm), UVB
(280 to 315 nm) and UVA (315 to 400 nm).
What is Ultraviolet C?
The entire UV spectrum can kill or inactivate many microorganism species, preventing them from replicating. UVC energy at 253.7
nanometers provides the most germicidal effect. The application of UVC energy to inactivate microorganisms is also known as
Germicidal Irradiation or UVGI.
The entire UV spectrum can kill or inactivate many microorganism species, preventing them from replicating. UVC energy at 253.7
nanometers provides the most germicidal effect. The application of UVC energy to inactivate microorganisms is also known as
Germicidal Irradiation or UVGI.
UVC exposure inactivates microbial organisms such as bacteria and viruses by altering the structure and the molecular bonds of
their DNA (Deoxyribonucleic acid). DNA is a “blue print” these organisms use to develop, function and reproduce. By destroying the
organism’s ability to reproduce, it becomes harmless since it cannot colonize. After UVC exposure, the organism dies off leaving
no offspring, and the population of the microorganism diminishes rapidly.
Ultraviolet germicidal lamps provide a much more powerful and concentrated effect of ultraviolet energy than can be found
naturally. Germicidal UV provides a highly effective method of destroying microorganisms.
their DNA (Deoxyribonucleic acid). DNA is a “blue print” these organisms use to develop, function and reproduce. By destroying the
organism’s ability to reproduce, it becomes harmless since it cannot colonize. After UVC exposure, the organism dies off leaving
no offspring, and the population of the microorganism diminishes rapidly.
Ultraviolet germicidal lamps provide a much more powerful and concentrated effect of ultraviolet energy than can be found
naturally. Germicidal UV provides a highly effective method of destroying microorganisms.
Product Specification | ||
Dimension: | 5000x10x1.2mm | |
Voltage(V): | DC24V | |
LED Type: | SMD3535 | |
LEDs/m: | 12/18/24LEDs | |
Power(W/m): | 2.88W/4.32W/6.72W | |
Beam Angle: | 120° | |
Step Length: | 8.3mm | |
Operation Temperature: | -20℃-45℃ | |
Packing&Shipping
Related Products
Certificate
Our products are approved with ETL, TUV-CE, SGS-ROHS and REACH certifications. Thanks to the strict quality control
processing, on-time delivery and best after-sale service, strictly followed to UL, EU safety standards, our products have
been hot sold to Europe, North and South America, Russia, Southeast Asia, such as Germany, France, Italy, Spain, UK,
Australia, USA, Argentina, Chile, Venezuela, Brazil etc.
Company Introduction
LEDYi Lighting, founded in 2011, a specialized LED Strip manufacturer, with over 5000 square meters of standard workshop and over 150 employees.
We go through QMS certification ISO9001:2015, EMS certification ISO14001, OHS certification OHSAS18001.
Our R&D team have abundant experience in industrial design, electronic driver, heat simulation analysis, optical lens design, light control system. We adopt the high-grade raw materials, from our own led SMD encapsulation, auto soldering , SMT assembly, multiple strict QC, aging testing, to product package, we cater to every detail to make the perfect product for our clients.
Our products are approved with ETL, TUV-CE, SGS-ROHS and REACH certifications.
Our company have LED encapsulation line, auto SMT machines, reflow soldering machine, and professional test equipment, such as IP68 waterproof level test machine, integrating spheres, AOI tester, etc. We also have a professional trained QC team to ensure the quality of all the products.
We go through QMS certification ISO9001:2015, EMS certification ISO14001, OHS certification OHSAS18001.
Our R&D team have abundant experience in industrial design, electronic driver, heat simulation analysis, optical lens design, light control system. We adopt the high-grade raw materials, from our own led SMD encapsulation, auto soldering , SMT assembly, multiple strict QC, aging testing, to product package, we cater to every detail to make the perfect product for our clients.
Our products are approved with ETL, TUV-CE, SGS-ROHS and REACH certifications.
FAQ
1. Do you have certificate for your products ?
R: Yes, our products have CE (EMC+LVD), Rohs(SGS) and ETL certification.
2. Do you have warranty for products?
R: Yes, we have 3 and 5 years waranty for different kinds of products. During the period, if customers have the proof showing product quality issue and certified by LEDYi engineers, we will request customers to ship back the failure
parts and replace new items with free shipping cost.
3. Do you offer free sample and what's the MOQ?
R: Yes, we offer free sample and no MOQ for standard products, have MOQ for customized products.
4. What is the lead time of Ledyi Lighting?
R: Usually we ship orders in 2 weeks. But it will take a little longer if we have heavy burden of production task. It also takes more time for customized products.
5. Can Ledyi Lighting accept customized assembly or offer OEM products?
R: Yes, Ledyi lighting has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
6. What is the main market of Ledyi Lighting?
R: We are selling more to EU and North America because the markets have high quality standard for LED products. The rate accounts for 70-80% of our turnover. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
