Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term
Branch：	Array
Type：	Array
Size：	135X90X132 cm

Product Details

Overview

Quick Details

Power(W):: ,Gasoline Engine

Travel Speed:: 4000m/h

Static Linear Pressure:: 3.97KG/cm

Condition:: New

Type:: Double Drum Roller

Grade Ability:: 30%

Place of Origin:: Shandong, China

Brand Name:: LH

Dimension(L*W*H):: 2450*780*1100

Weight:: 530KG

Certification:: ISO

name:: two wheel road roller

Vibration frequency:: 75HZ

Climbing Capacity:: 30%

Walk Speed:: 4000m/h

Exciting force:: 30KN

road roller:: 450*600mm

Fuel consumption:: 313g/kwh

Water tank:: 30L

Engine Model:: HONDA or Chinese engine

Power:: 9HP(GX270)

After-sales Service Provided:: Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:: Single item

Single package size:: 135X90X132 cm

Single gross weight:: 560.0 kg

Picture Example:

Lead Time:

Quantity(Set)	1 - 20	>20
Est. Time(days)	5	To be negotiated

Product Introduction

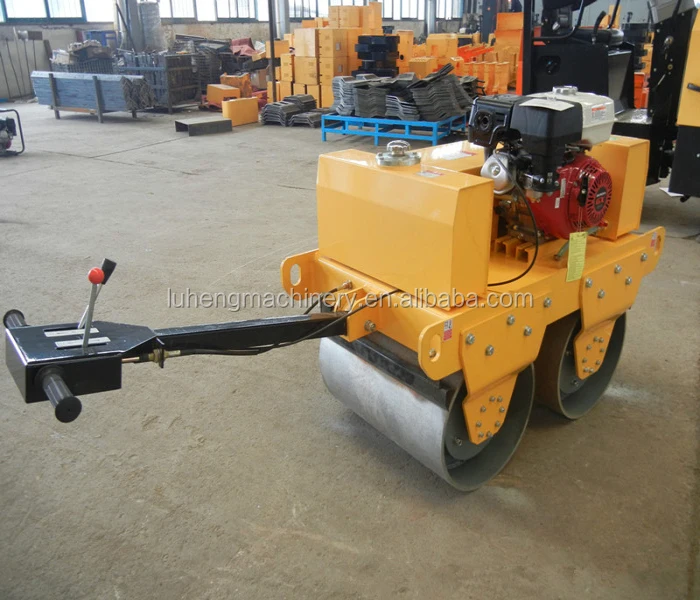

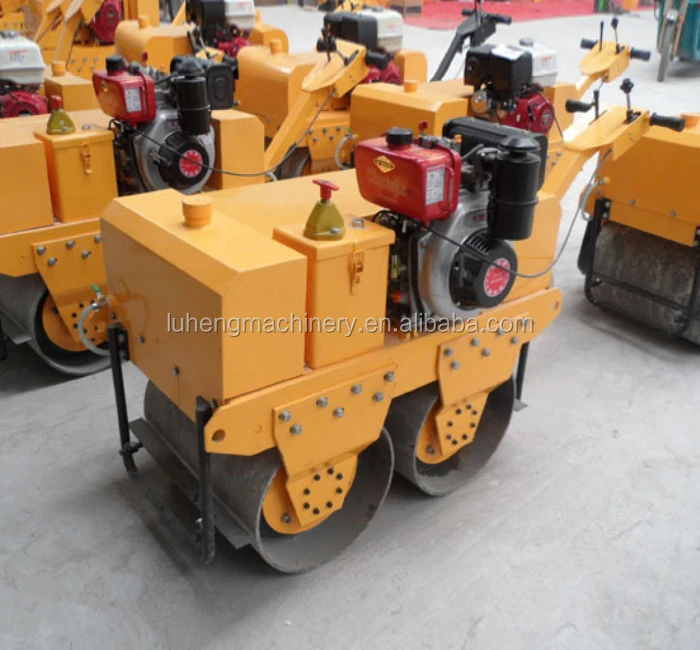

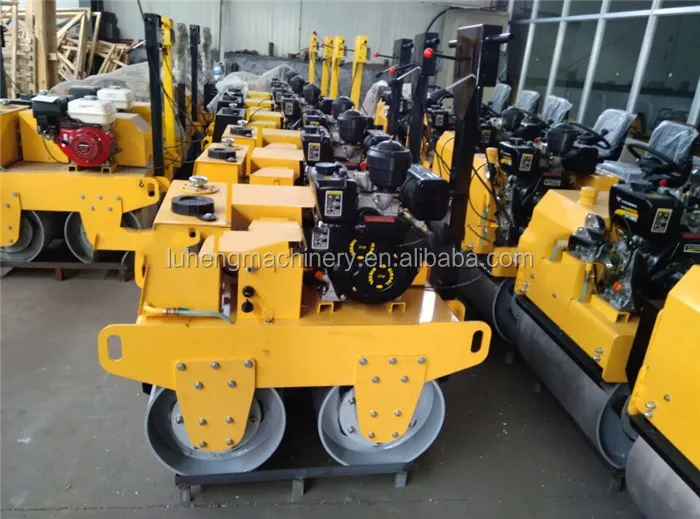

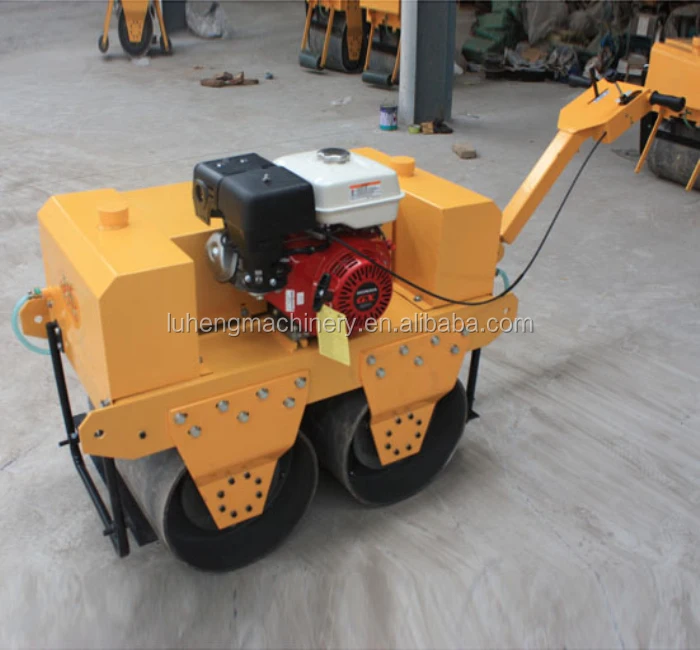

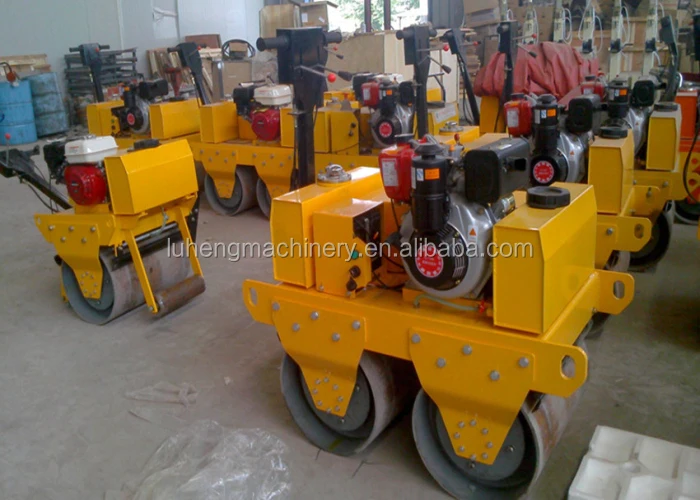

Walk Behind Double Drum Vibratory Road Roller

1).Operating radius is small, can work in a small area;

2).HONDA Petrol engine or famous diesel engine,international brands,quality assurance,superior performance, easy start;

3)The transmission mechanism of famous hydraulic drive system,and infinitely variable Vibratory speed,reversing is convenient,service life long.

4)Deisel power with electric startup,light and flexible.

5)Dual vibration mode and Dual drive, ensure whole compaction and climbing ability.

Technology Parameters

Model	HWLH-S600	HWLH-S600B	HWLH-S635	HWLH-S700A
Power	9HP(GX270)	4.0KW(CF178F)	5.0KW(CF180F)	6HP (CF178F)
Vibration Frequency	75 HZ	75 HZ	75 HZ	75 HZ
Driving Mode	hydraulic Station
No. of Roller/Size	2-Φ450×600mm	2-Φ450×600mm	2-Φ350×635	2-Φ450×700
Excitation Force	20 KN	20 KN	20 KN	20KN
Dimension	2450x780x1100	2450x780x1050	2450x680x1800	1460X910X1230
Grade ability	25%	25%	40%	30%
Weight	520Kgs	530Kgs	780kgs	760kgs
