Product Details

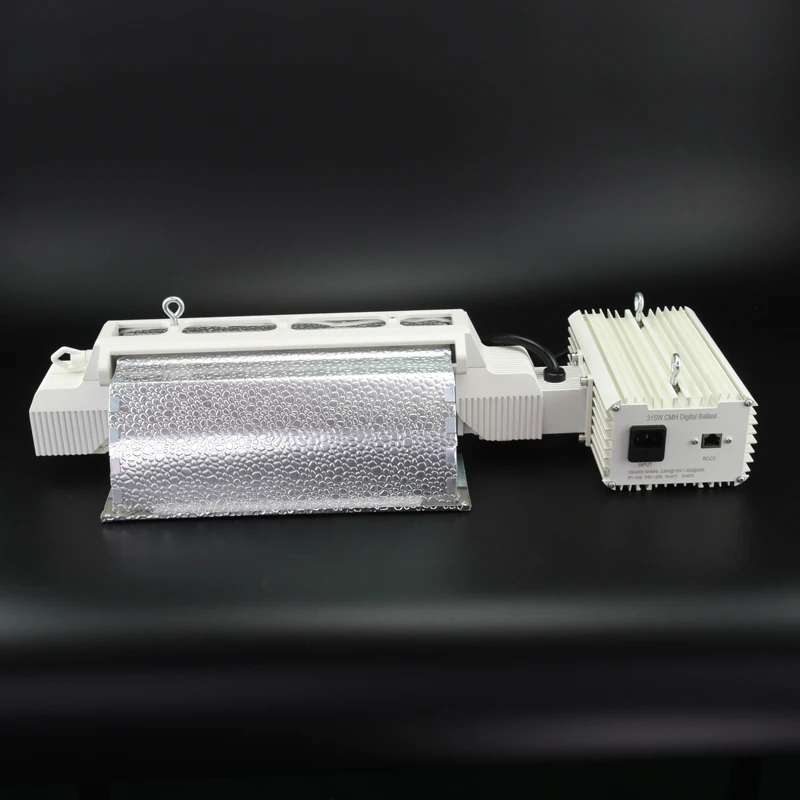

CMH Grow Light Ballast Kit 315W/630W/945W/1000W 120-277V

Key Features of CMH Digital Ballasts

l 120V/208V/220V/230V/240V/277V sensing input, 50/60Hz

l Easy installation, low profile, saving the space

l High standard components made by Japanese and Germany. E.g.: Nippon Chemi-con capacitors, high capability Infineon,IXYS(Germany)/Fairchild(USA) MOSFETS to bear large amperes, produce less heat, and offer reliability and performance

l Soft start and Random Start

l Microchip Inside for precise control

l Constantly output power when the voltage is fluctuating

l Low Frequency Square Wave, fully compatible with SE/DE CMH lamps

l Multi-protections: Open/Short circuit protection, High/Low voltage protection, Thermal protection, Hot-start protection

l Prolong lifetime of lamp at least 10%

l Energy saving up to 30%-50% compared with MAGNETIC BALLASTS

l Running 10%-15% than other digital electronic ballasts in the market

l Lower EMI/IF compared with other electronic ballasts

l 0.99 Power Factor, and less than 10% Total Harmonic Distortion

l 3 years factory warranty for ballast, 1 year warranty for reflector

l UL, cUL, CE certificates

l 6FT input power cord

l Remote Control by 0-10V controller Optional

Performance Description
Model		HLB-315SW-120-277V	HLB-630SS-120-277V	HLB-1000SW-120-277V
Rated Power		315W	630W	1000W
Input	Voltage Range	90Vac-305Vac	90Vac-305Vac	90Vac-305Vac
	Rated Voltage	120/208/240/277Vac	120/208/240/277Vac	120/208/240/277Vac
	Current	Imax=2.87Vac	Imax=5.5A	Imax=8.75A
	Frequency	50~60Hz
	Power	340W±5%	660W±5%	1050W±5%
	Power Factor	≥0.99
	THD	<10%
Output	Frequency Type	Low Frequency
	Frequency	100 Hz
	Power	315W±5%	630W±5%	1000W±5%
	Current Crest Factor	<1.5
	Open Circuit Voltage	<300V
	Ignition Voltage	3.5~5kV
	Dimming Function	0-10V/RS485 optional
	Lamp Voltage	100-130V	200-250V	200-250V
	Efficiency(@240Vac)	>93%
Protection	Short Circuit	Yes
	Open Circuit	Yes
	Ignition Failure	Yes
	End of Lamp Life(EOL)	Yes
	Overheated	Yes
	Soft-start	Yes
	Over Voltage	Yes
Lamp	Lamp Type	SE/DE 315W	DE 630W	DE 1000W
	Lamp Power	315W	630W	1000W
	Lamp Voltage	90-130V	200-250V	200-250V
	Distance to Ballast	<15m(50FT)
	Operating Position	SE/DE CMH Lamp- Vertical and Horizontal
Physical Description
Dimension(LWH) mm		224x115x82	314x115x82	263x183x123
Net Weight		2.8kg	4.0	5.5kg
Ventilation		No
Waterproof Grade		IP30
Working Humidity		10%~90%
Operating Temperature Range		-30℃~+50℃
Max Case Temperature		<90℃
Internal Temperature Rise		<30℃
Certificate and Standard
Certificate		CE, RoHS, UL, cUL
Safety Regulation		IEC 61347
Quality Standard		ISO9001
Environmental Standard		ISO14001
