MAX7219 Dot Matrix Module LED Display DIY Kit SCM Control Module for Arduino PI

Description:
Seamless splicing and so that the dot matrix c--an be flexible spliced
Common cathode with bright dot matrix(8*--8), display fresh and brilliant picture.
A screen roll freely, to achieve the perfect pi--ture display
Since the master chip is used in Max7219 to- make product have the
Following characteris--tics :
The transmission efficiency of up to 10MHz.
Can be individually controlled for each point.
Lowest power consumption of 450uA (one m--odule).
Power-on reset automatically display full black
Serial communication, a great saving of MCU IO, also can be extended To expand the prog--ram with SPI.
For each screen brightness control, by setting the Max7219 instructions.

Application:Education,DIY, Robot,etc

ABSOLUTE MAXIMUM RATINGS
Voltage (with respect to GND)
V+.....-0.3V to 6V
DIN, CLK, LOAD, CS...................-0.3V to 6V Current
DIG0-DIG7 Sink Curr.................500mA
SEGA-G, DP Source Current ..........100mA
Continuous Power Dissipation (TA=+85°C) Narrow Plastic DIP......0.87W
Wide SO .............................0.76W
Narrow CERDIP........................1.1W
Operating Temperature Ranges(Max7219) MAX7219..... 0°C to +70°C
Storage Temperature Range ............-65°C to +160°C
Lead Temperature (soldering, 10sec) ..+300°C

PIN Define
Pin Function
CLK Serial-Clock Input. 10MHz maximum rate.
CS Chip-Select Input. Serial data is loaded into the shift register while CSis low.
DIN Serial-Data Input. Data is loaded into the internal 16-bit shift register on CLK's rising edge
DOUT Serial-Data Output. The data into DIN is valid at DOUT 16.5 clock cycles later. VCC Positive Supply Voltage. Connect to +5V.
GND Ground


Package Included:

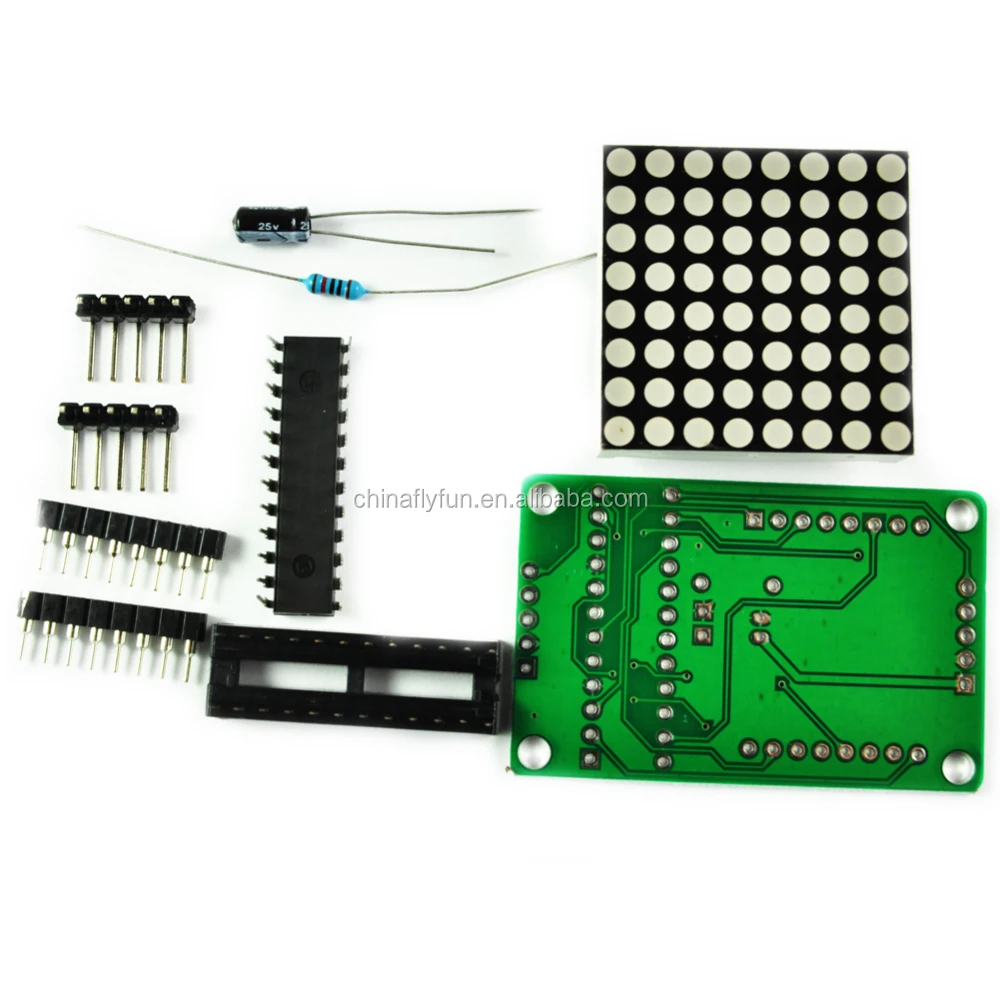

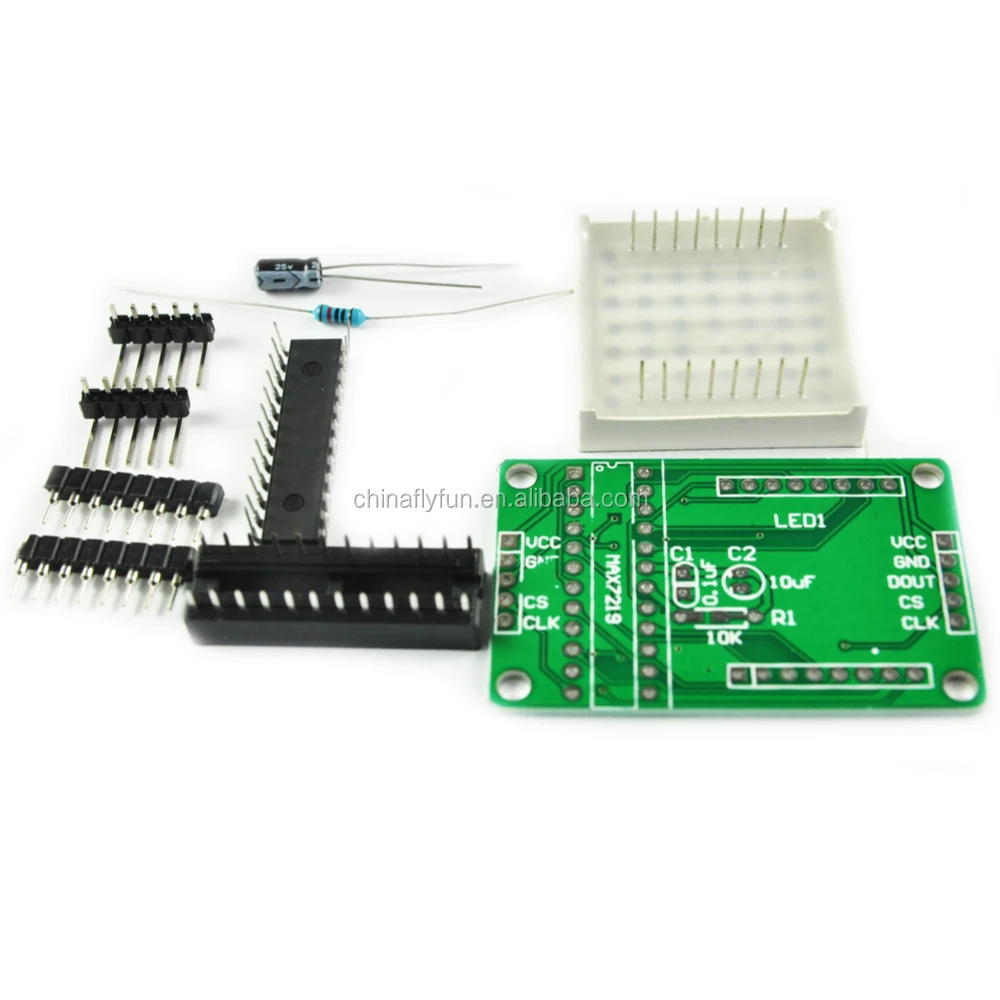

1 X MAX7219 Dot Matrix LED Display DIY Kit
