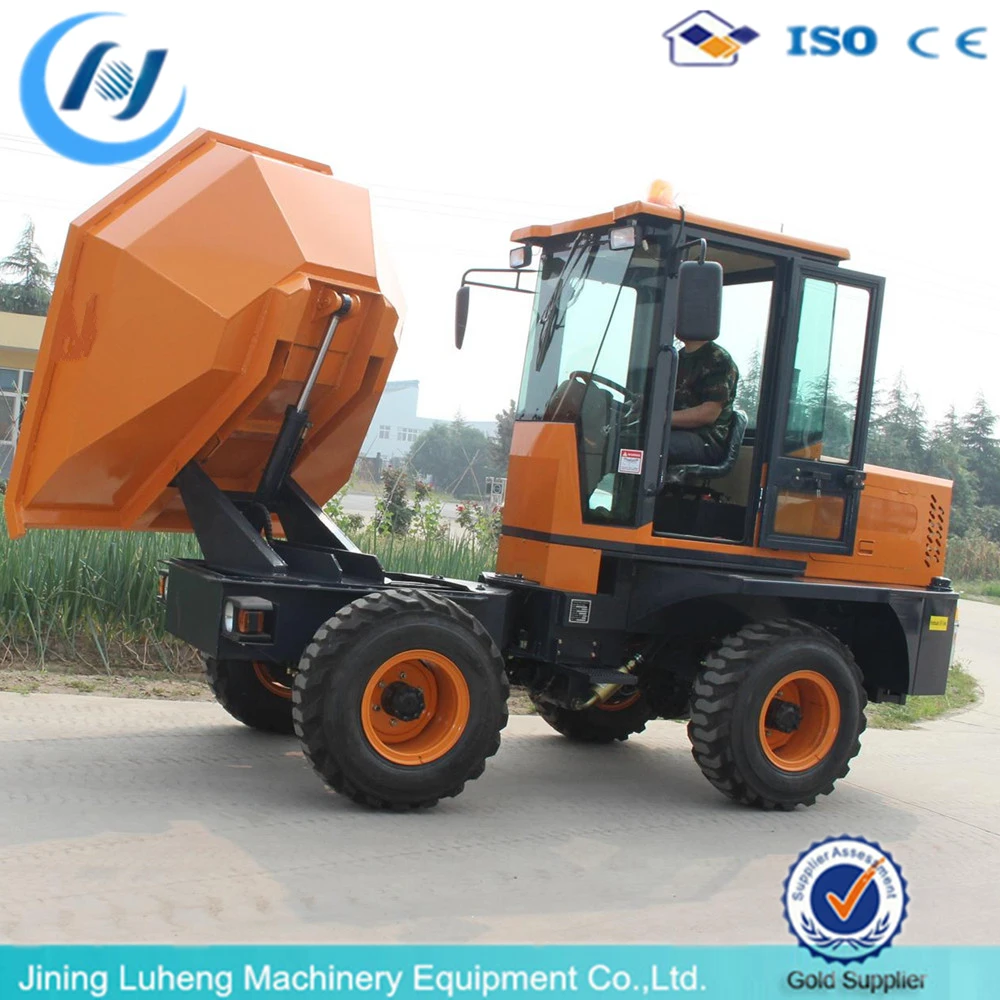

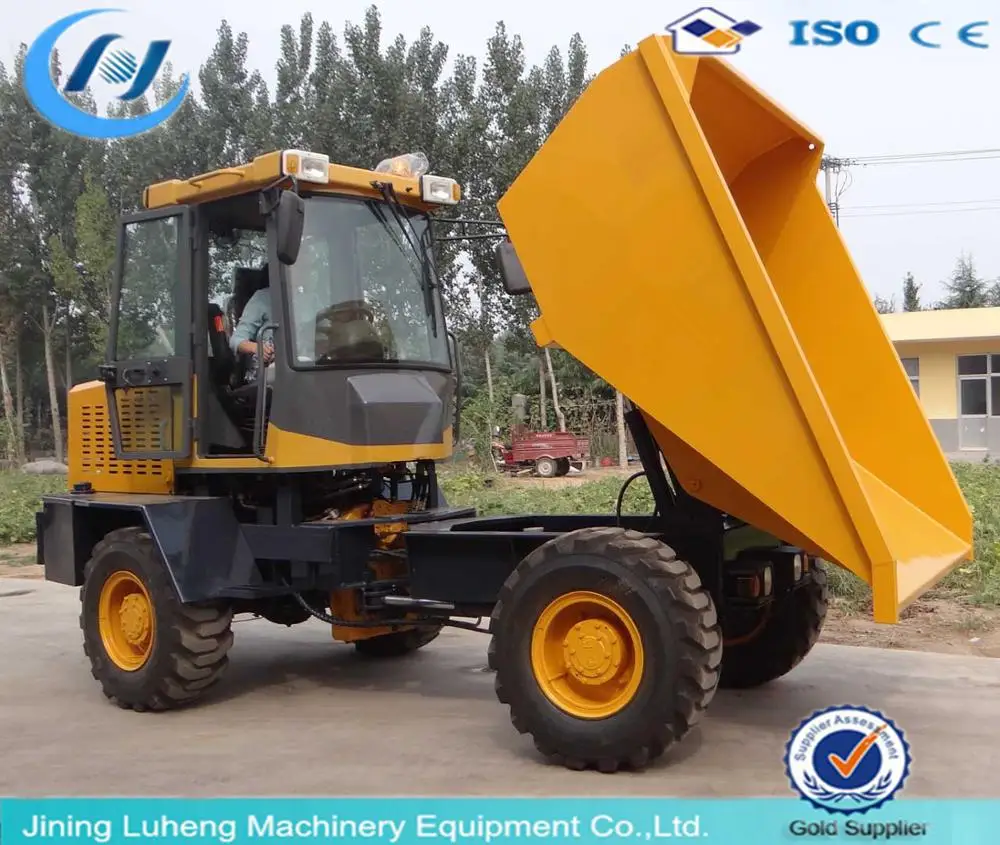

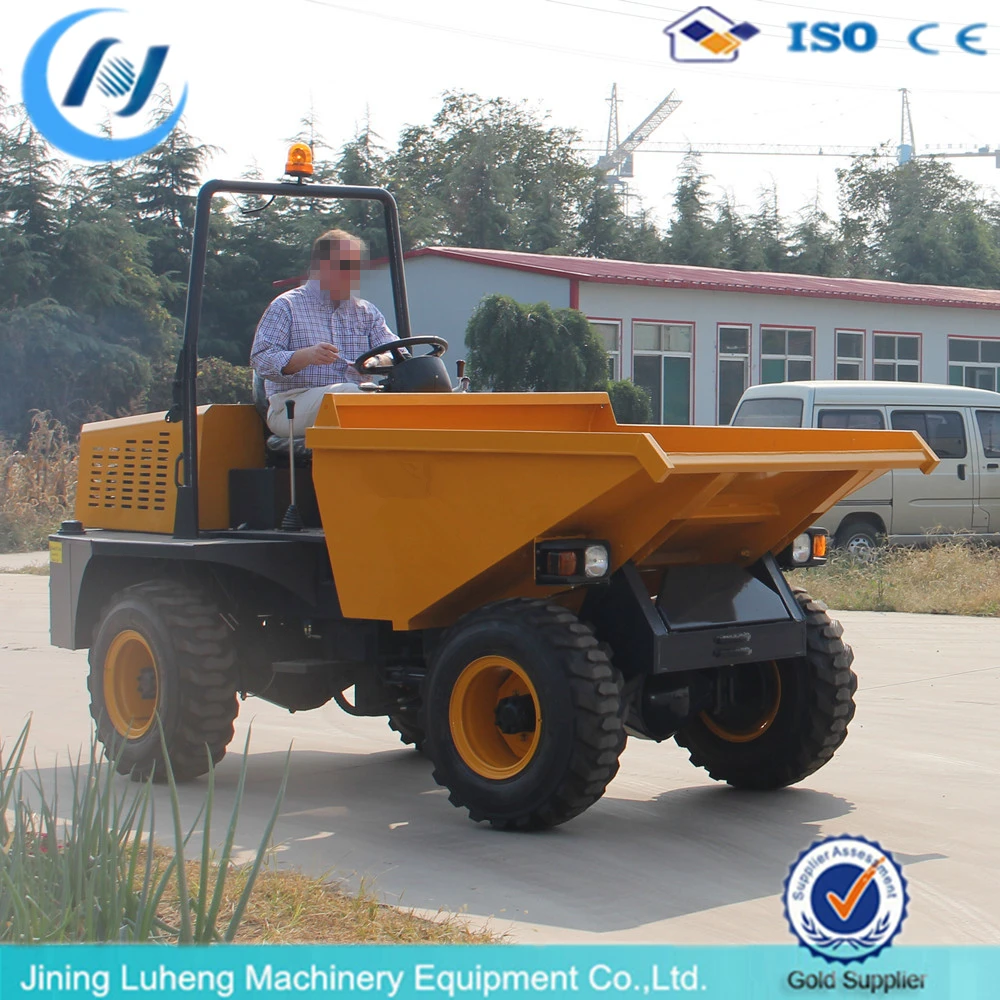

Name: Mini 2ton dump loader,2-10ton dumper with 180 degree rotation,high quality small dump truck
Availability: InStock

Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term
Type：	Array

Product Details

Overview

Quick Details

Dimension(Long * Breadth * High):: 3950*1600*2550mm

Condition:: New

Brand Name:: LH

Place of Origin:: Shandong, China

Type:: Front Loader, In-line, water-cooled, 3 cylinders, 4 stroke ,diesel engine

Moving Type:: Wheel Loader

Rated Load:: 2-10t

Certification:: ISO

Model Number:: LHY

Rated power:: 20KW/2200RPM

Bucket capacity:: 0.8m3

Rated loading weight:: 2-10t

Diesel oil tank capacity:: 30L

Hydraulic oil tank capacity:: 30L

Tire model:: 825-16

Shipment:: 2 units in 20 GP,4 Units in 40ft container

Hydraulic pump power:: 16mpa

Hydraulic pump:: Gear pump

After-sales Service Provided:: Overseas third-party support available

Warranty:: 2 years

Supply Ability

Supply Ability:: 500 Set/Sets per Week

Packaging & Delivery

Packaging Details: customized

Port: Qingdao

Model	LHY20
Engine
Model	KM385
Type	In-line, water-cooled, 3 cylinders, 4 stroke ,diesel engine
Rated power	20KW/2200RPM
Hydraulic system
Type	Hydraulic steering and hydraulic tipping
Hydraulic pump power	16mpa
Hydraulic pump	Gear pump
Performance
Bucket capacity	0.8m3
Rated loading weight	2000kgs
Total operating weight	1980kgs
Overall dimension
Total length	3950mm
Total width	1600mm
Total height	2550mm
Wheel base	1360mm
Tread	1960mm
Mini Turning radius	4000mm
Oil tank
Diesel oil tank capacity	30L
Hydraulic oil tank capacity	30L
Water tank capacity	10.5L
Tire
Tire model	825-16
Drive way	4*4
Shipment	2 units in 20 GP,4 Units in 40ft container
