Product Description

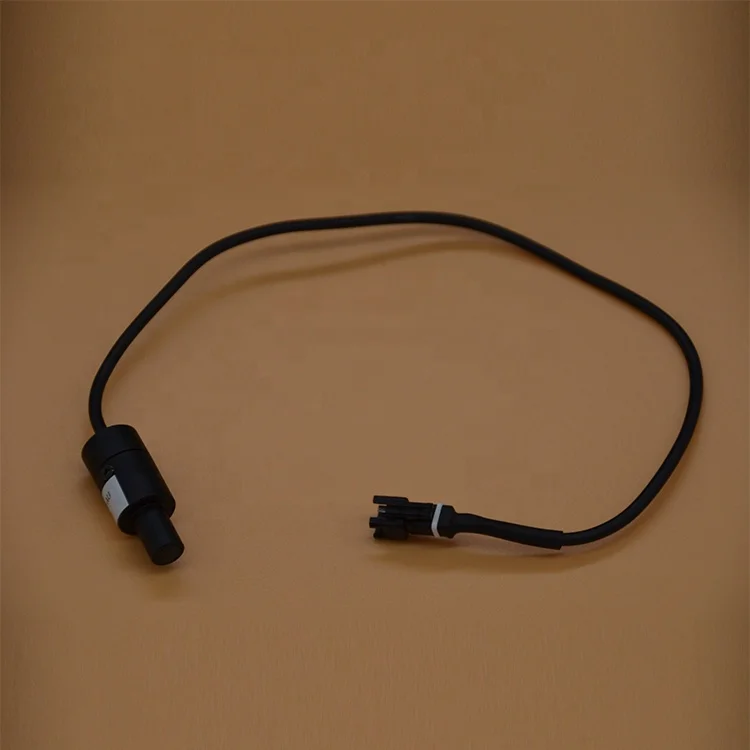

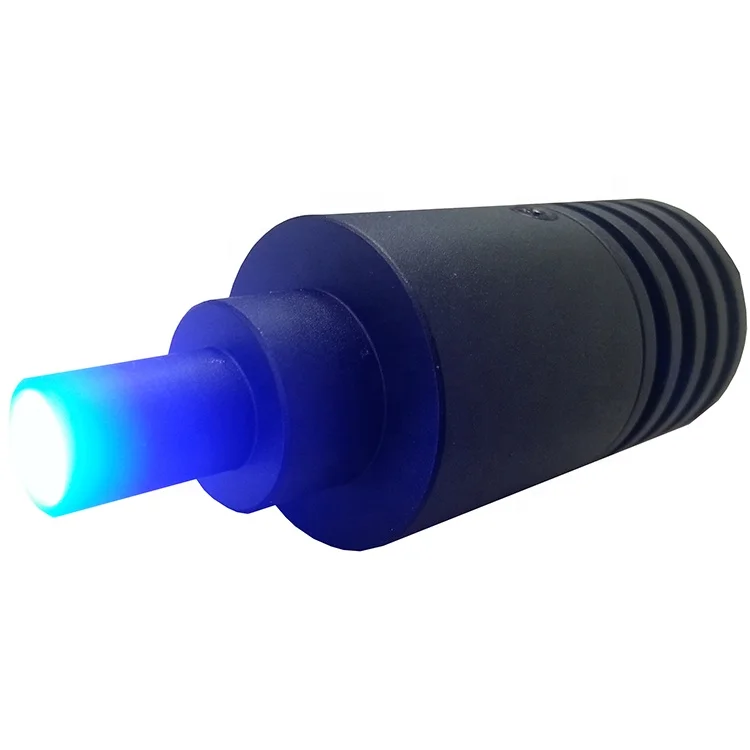

Wholesale 6V Machine Vision LED Lighting

Spot type lights


High output and ultra high intensity coaxial direct support for short working distance machine vision Telecentric, Marco lens.
Provide diffusion parts to reduce refractive from high sensitive material.

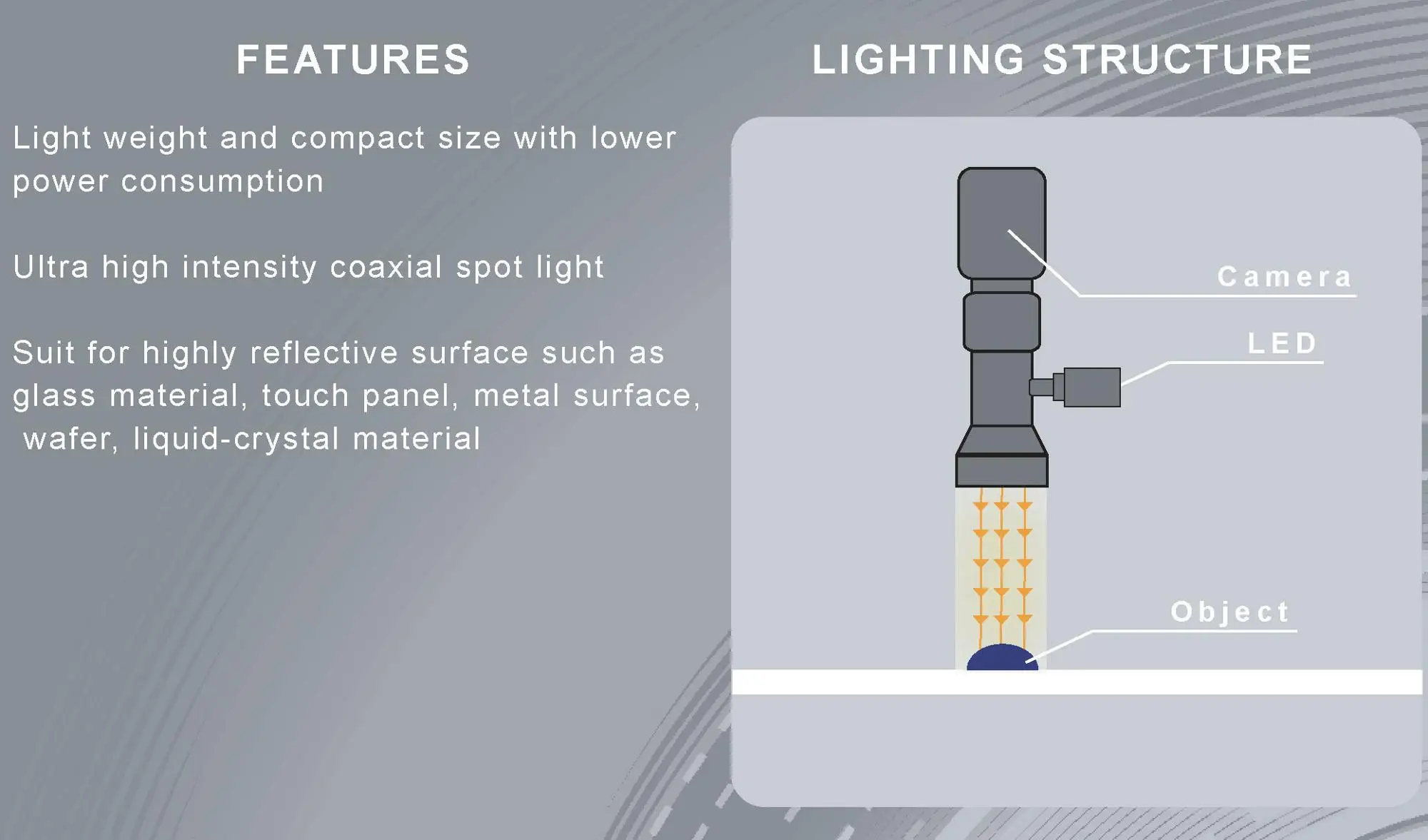

Features


Light weight and compact size with lower power consumption
Ultra high intensity coaxial spot light

Applications


Suit for highly reflective surface such as glass material, touch panel, metal surface, wafer, liquid-crystal material.

Image Samples

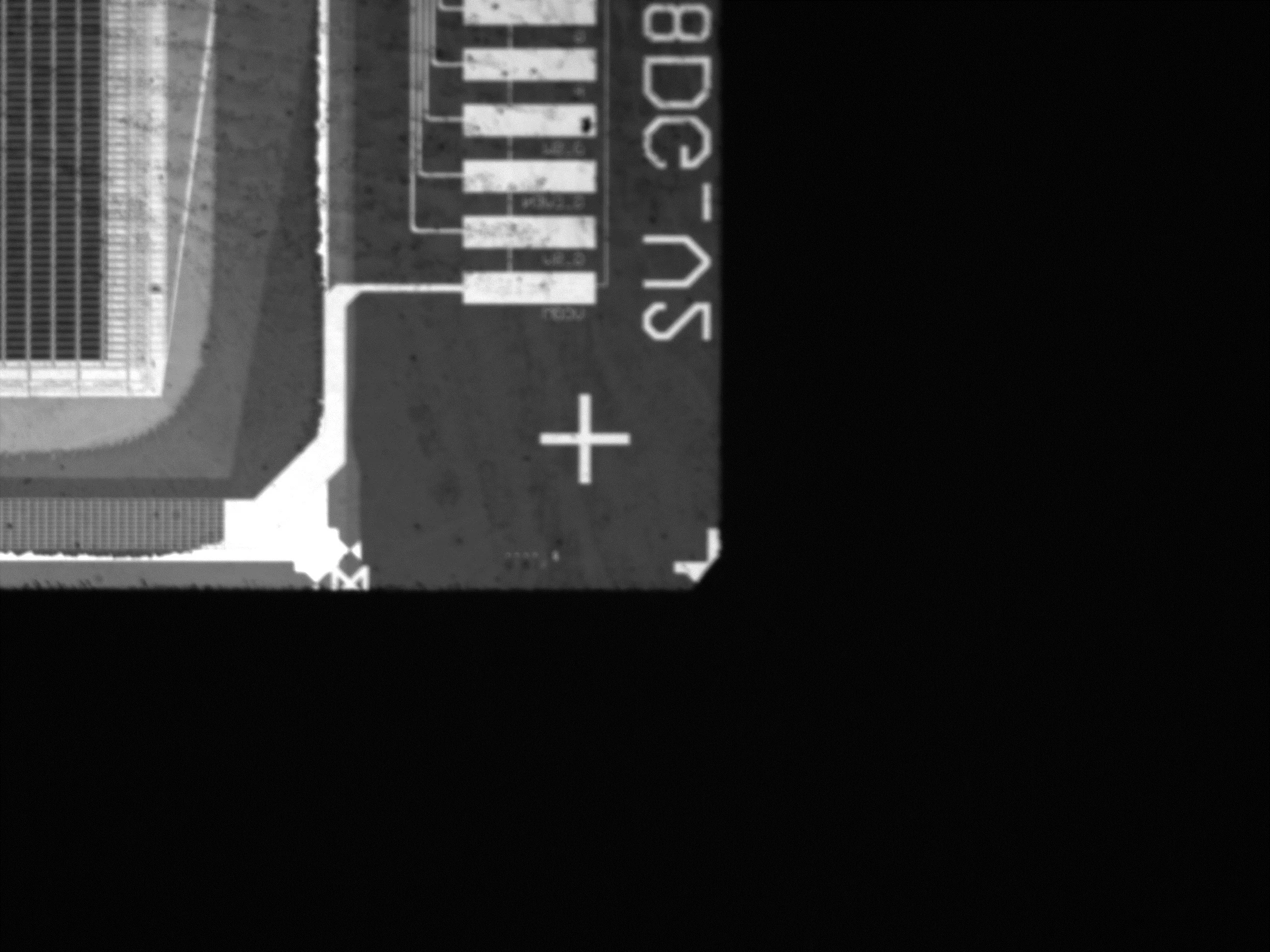

Alignment Mark on ITO glass

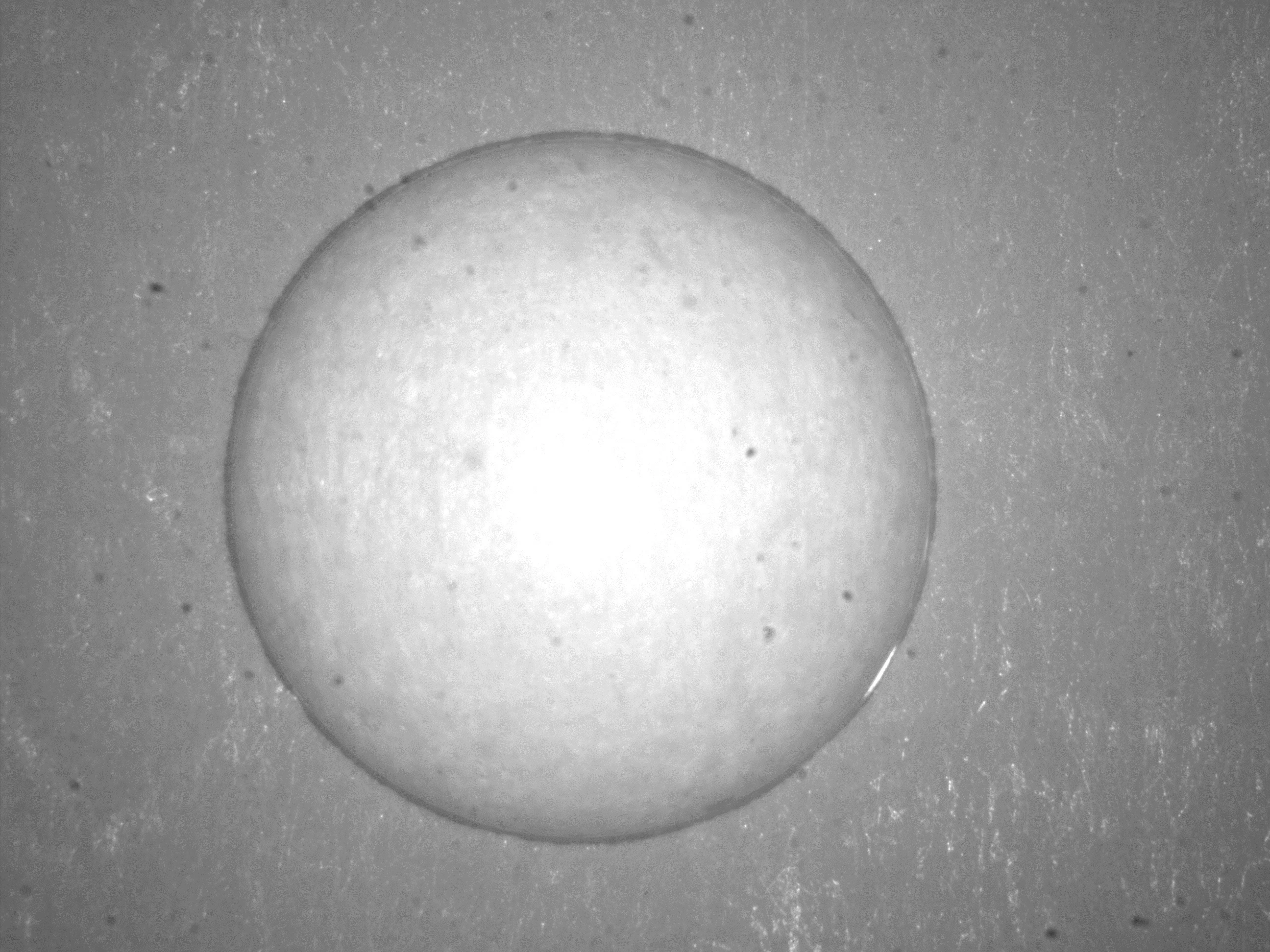

Lens outline check or measurement
Fiducial mark on wafer inspection

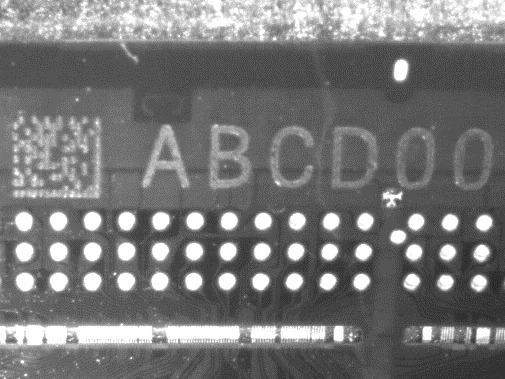

OCR inspection on material

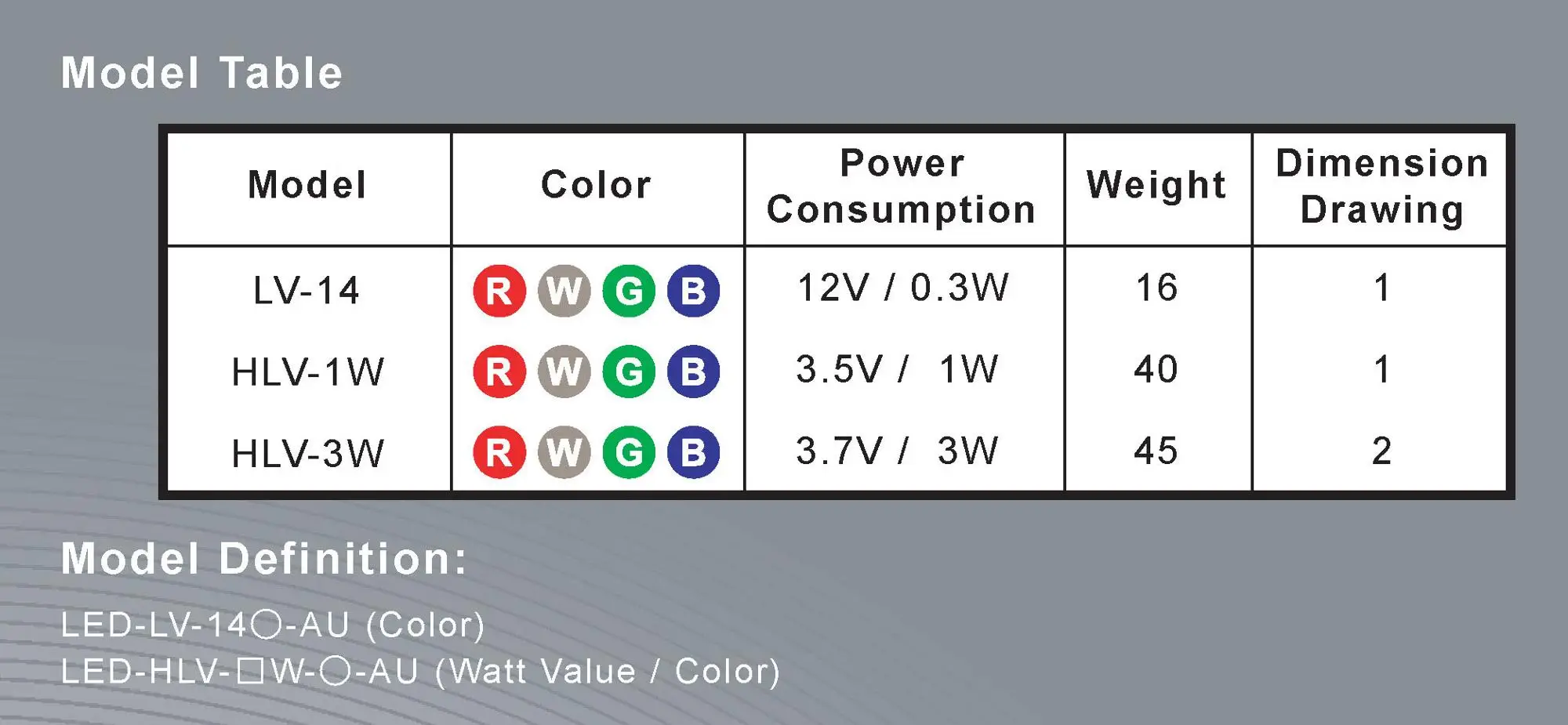

General specification
Color
(Wavelength)
Red
620-630nm
Green
525-530nm
Blue
465-470nm
White
6600-7000K
UV
365,405nm
IR
850,940nm
Operating environment
Temperature: 0 to 50 ℃, Humidity: 20% to 85% RH
Life time
30,000hrs theoretical value (depends on the operating environment, not a guarantee.)
Compatible Controller
PP series Analog Controller
PD series Constant Voltage Digital Controller
Optional Accessory
1. Lights source and lens adaptor. For machine vision lighting.
2. Diffusion plate, Polarizing plate.(Optional transmittance:60%,70%,80%,90%)
3. Extension cable: 1m/2m/5m/10m/15m(2 kinds of materials of the shell of wire :PVC of hardness; silicone of softness.)
Warranty
One year warranty, sample order and technical support(buyers pay for the freight)
Lights customization
Provide design and development service according to individual needs of customers. Reach the best image effects.
*Wholesale 12V LED Machine Vision Lighting Illuminators Industry Inspection light
