Product Details
Product Description

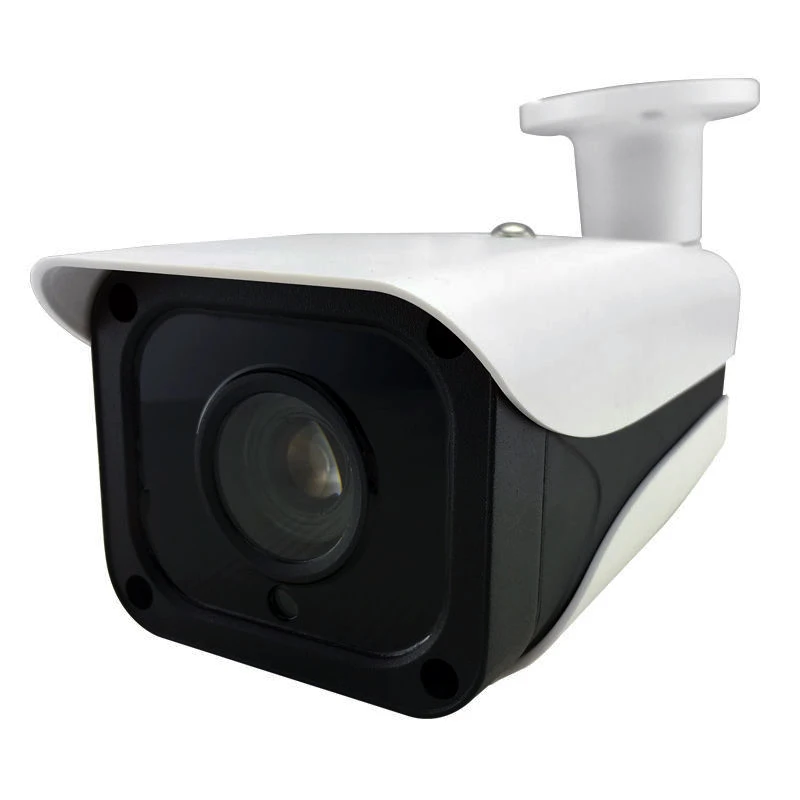

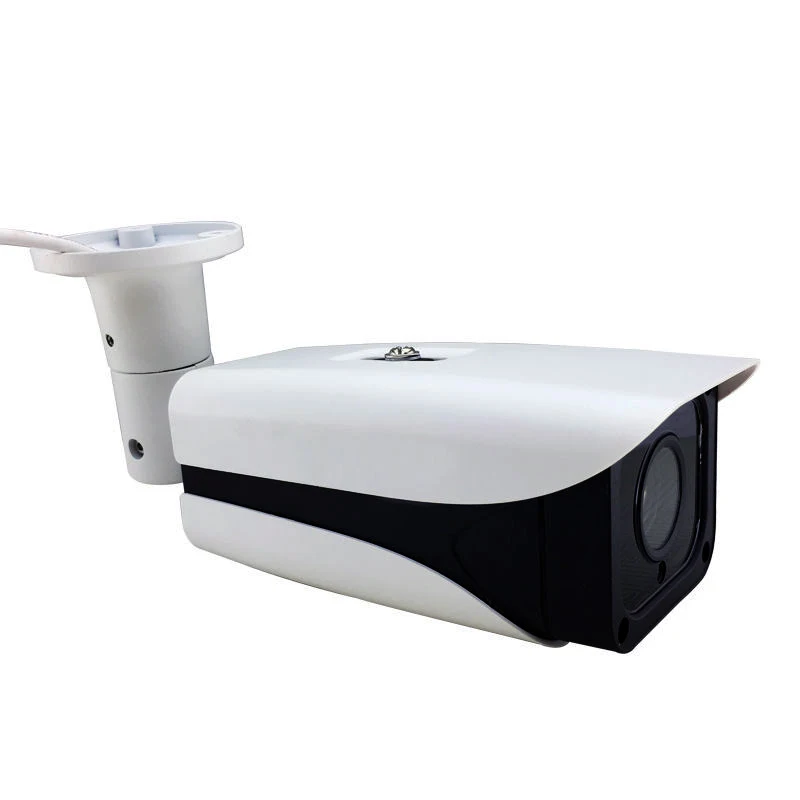

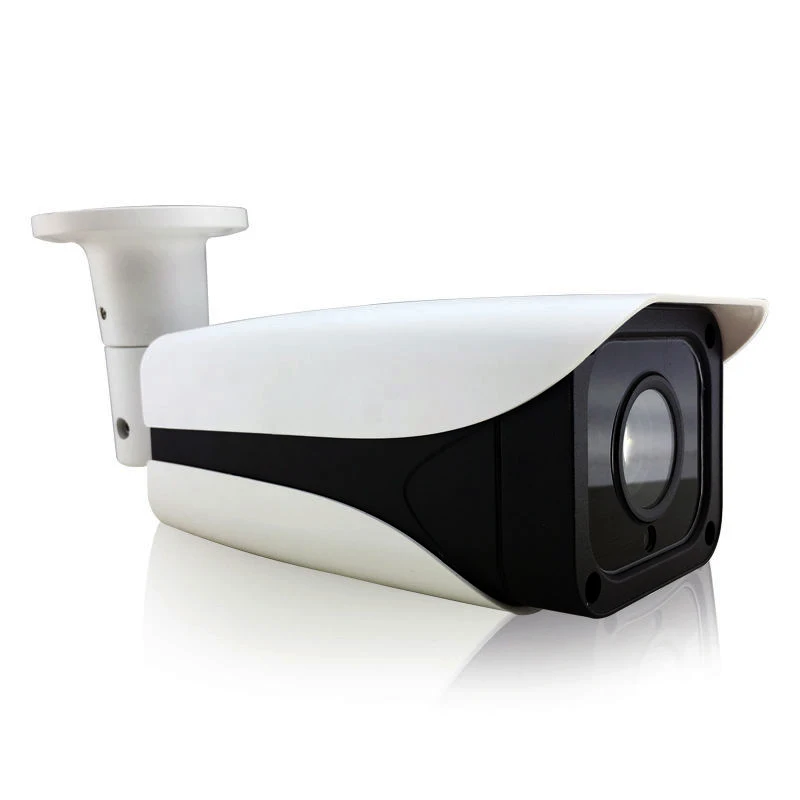

New WDR Outdoor 1080P IP Camera Wholesale OEM Low Light 2MP Sony IMX290+Hi3516D Smart Detect Security Camera
Model: SIP-E51-290D F
Highlights
Smart Stream,Smart Detect,Smart Control,Color Abnormal,
Sound Abnormal,Brightness Abnormal,Video Abnormal,
Cross-corder Detection,Regional Invasion,
Left-behind Items
| Model | SIP-E51-290D F |
| Camera Type | 2MP WDR IP Camera |
| Camera | |
| Image Sensor | 1/2.8" Square Pixel Array Color CMOS Image Sensor Sony IMX290 |
| DSP | Hisilicon 3516D |
| Effective Pixels | 1945 (H) X 1097 (V) approx. 2.13M pixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) |
| Min. Illumination | 0.001Lux/F1.2 |
| S/N Ratio | ≥50dB(AGC OFF) |
| IR-Cut | Support |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | WDR >120db |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D-DNR |
| Privacy Masking | Up to 4 areas |
| Image parameter | Bir/Con/Hue/Sat/Acu/Gamma |
| Image basic | Mirror/Flip/LSC/CTB/AntiFogging |
| IR-LED | 4 pcs LED Arrays |
| IR Distance | >60m |
| Lens | 3MP 6mm HD Fixed lens |
| Video/Audio | |
| Video Compression | H.265+/H.265/H.264/Mjpeg Dual-stream encoding |
| Resolution | Main Stream:1920X1080, 1280X720 (1~25/30fps) |
| Sub Stream:D1,VGA,CIF, (1~25/30fps) | |
| Frame Rate | 1~25/30fps |
| Bit Rate | 30Kbps~16Mbps, support VBR, CBR |
| Text Overlay | Channel, Date & Time, Bit Rate |
| Audio Compression | G.726/G.711A/G.711U |
| Audio bit rate | 16000 |
| Sampling rate | 8K |
| Network | |
| Data Storage | Video record, Picture format |
| Trigger | Manual, Automatic(motion detection, alarm, schedule, cycle ) |
| Alarm data transmission | FTP, E-mail, Browser, CMS |
| Protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
| ONVIF | ONVIF V2.4 |
| Max. User Access | 8 users, IE, Google, Firefox |
| Smart Phone | Support iPhone, iPad, Android View |
| Network Interface | 1 RJ45 Ethernet interface, 10/100M adaptation |
| P2P Service | Free P2P cloud |
| Reset | Support |
| Interface# | |
| Audio# | 1ch Audio MIC input/ line input, 1ch output |
| BNC Video out# | 1CH Analog CVBS Video Output |
| RS485# | 1ch |
| USB# | 1ch (Support 128G USB flash/WIFI/3G Extended) |
| Alarm# | 1ch input |
| Memory Card Slot# | Micro SD/TF card slot, max128GB (with Alarm 1ch output) |
| POE # | IEEE802.3af |
| General | |
| Power Supply | DC12V |
| Power Consumption | <9W |
| Working Environment | -20°C~+55°C , Less than 90% RH |
| Waterproof Criterion | IP66 |

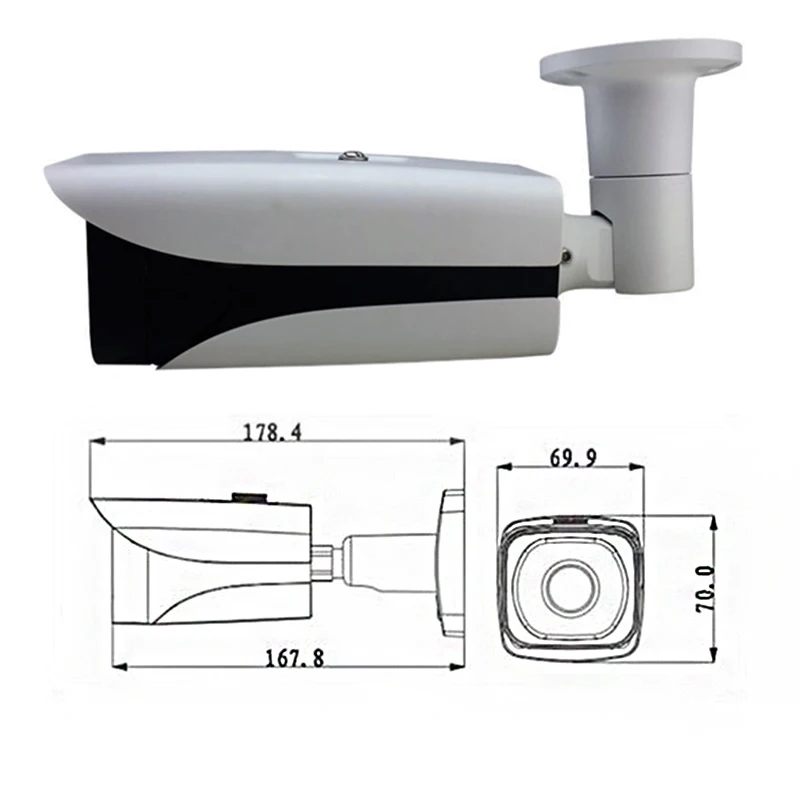

| Product Size | 180X70X70mm |
| Package Size | 220X100X100mm |
| Net Weight | 1.2kg |
| #Remark:Audio,USB,BNC,RS485,Alarm,POE,SD Memory Card Slot and Power Adapter are optional. Please consult with us if need any of them. | |
Packaging & Shipping
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
Our Services
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
