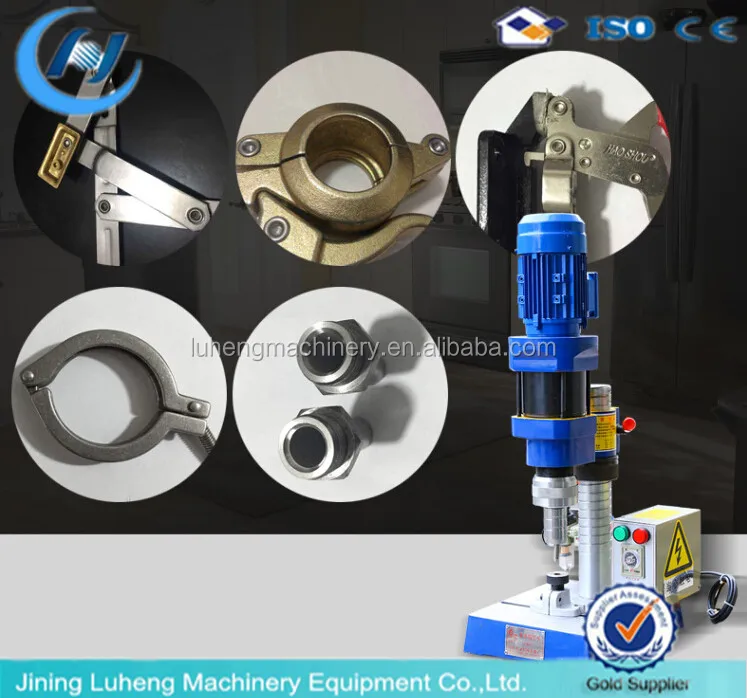

One. Features
1. Spindle design, durable, low breakdown rate, maintenance is rarely needed.
2. With strong riveting capacity, most suitable for use on mass-production lines.
3. Single-phase or three-phase voltage for your choice.
4. Max. riveting capacity up to diameter 5mm rivets.
Two. Specifications
Stroke of spin head | 20-40 mm |
Riveting capacity (mild steel rivet) | Solid: 2 - 5 mm Hollow:2 - 9 mm |
Distance between punch and table | 160 mm |
Depth of throat | 93 mm |
AC motor rating 4 poles (1720 rpm) | 1/2 HP or 3 Phase |
Gauge pressure | 2-7 Kgf/cm2 |
Max. Output | 720Kgf |
Working cycle time | 0.5-6 second |
Working table | 230x130 mm |
Dimension LxWxH | 510x415x930 mm |
N.W. | 98 Kgs |
Wooden case LxWxH | 600x495x1080 mm |
G.W. | 125 Kgs |
