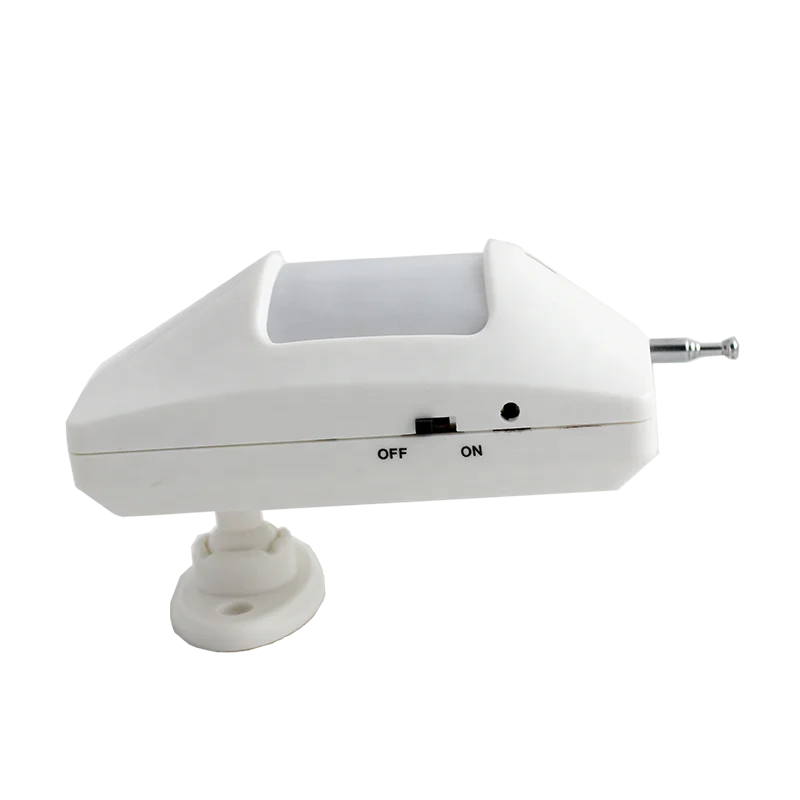

Name: Wireless Wide-angle Infrared Detector (DC9V)

Model: LS-818-5F

Feature:

1. Wireless signal transmitting

2. Low power alarm

3. Automatic temperature compensation

4. ASIC adopted

5. Low consumption to ensure long battery life

6. SMT adopted, anti-RFI& anti-EMI

Technical parameter:

1. Operating voltage: DC9V battery

2. Static current: ≤50uA

3. Alarm current: ≤15mA

4. Operating temperature: -10°C ~+50°C

5. Battery life: about 6-12months

6. Installation means: wall-mounted

7. Installation height: 2m (wall-mounted)

8. Detecting distance: 12m

9. Detecting angle: 110 degree

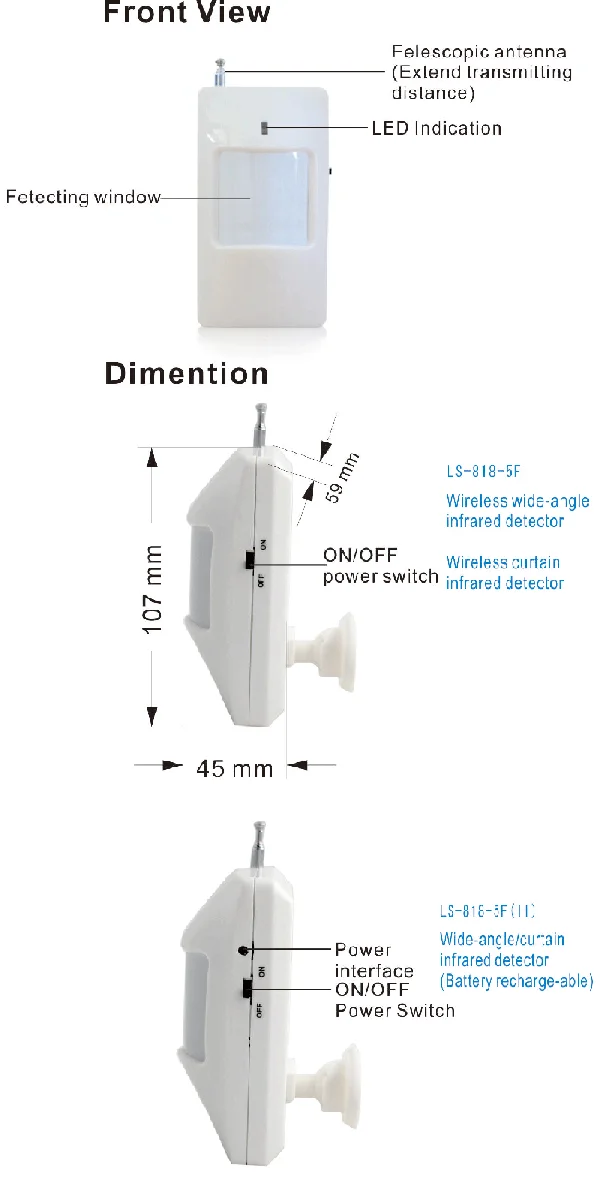

10. Dimension: 107*59*45mm

11. Transmitting distance without block: 200m

12. Emission frequency: 315/433MHz
