can show bus stop name,bus line route and number,also messages and videio.
Brand： |
none |
Address： |
China |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Product Details
Products Description

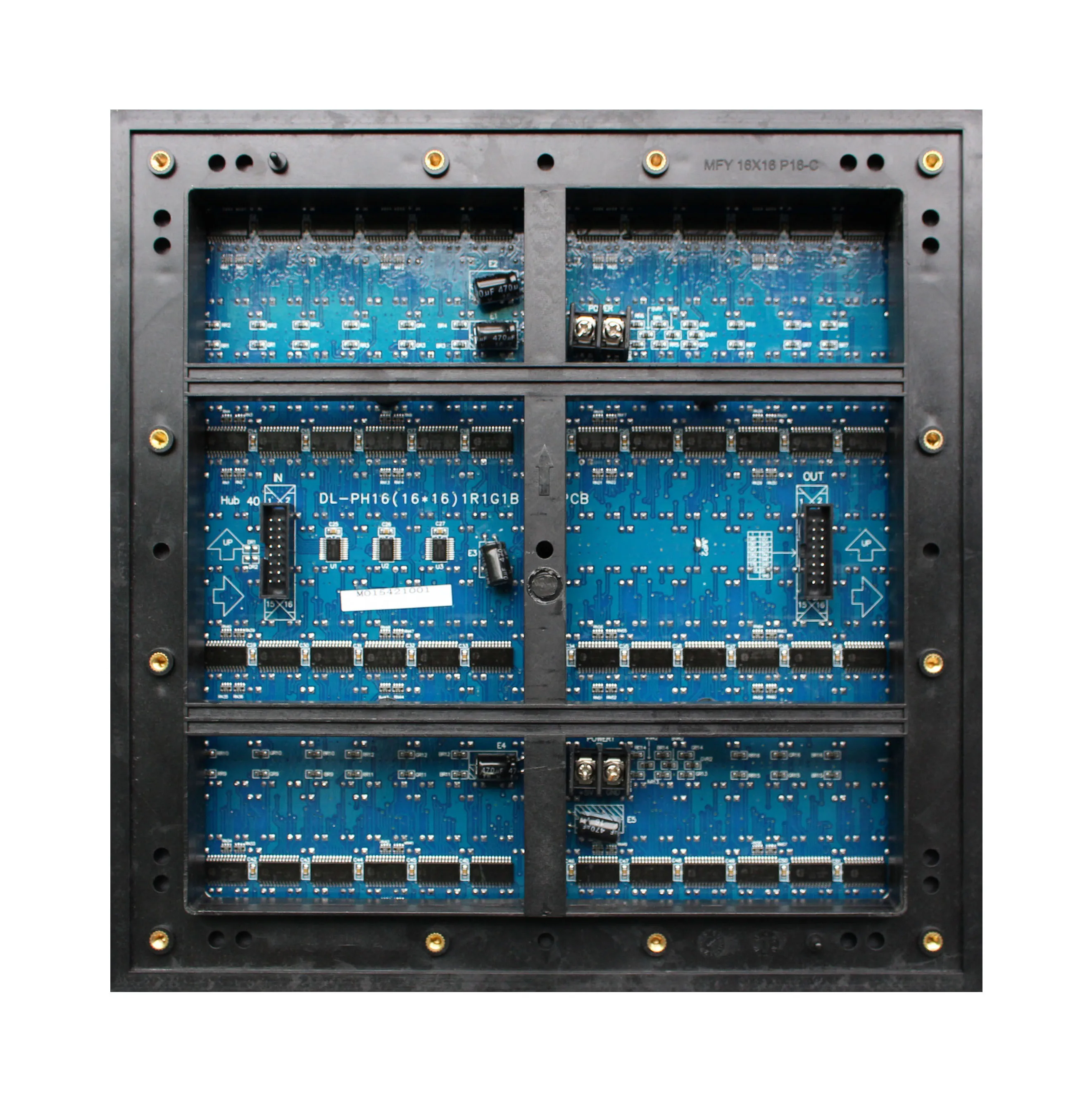

RGB Outdoor P16 LED Panel Full Color 256*256mm DIP LED Display Module waterproof export to USA CANADA AUSTRALIA
DIP outdoor full color P16 LED module/1R1G1B Outdoor Video Full Color P16 Led Modules
P16 outdoor led advertising display screen parameter table
| Unit Module | Item | Parameter |
| Module number | LJX-P16-static | |
| Moule size | 256mm x 256mm | |
| Pixel pitch | 16mm | |
| Pixel density | 3906dots/sqm | |
| Pixel configuration | 1R1G1B | |
| Package mode | dip346 | |
| Pixel resolution | 16 x 8 dots | |
| Max power consumpion | 18w | |
| Module thickness | 25.55mm(without magent) | |
| Module weight | 1.4kg | |
| Driver method | constant drive | |
| Driver method | static scanning | |
| Port type | HUB75 | |
| Brightness | >8000cd/sqm | |
| Unit Cabinet | Cabinet size | 1024mm x 766mm |
| Quantity of module | 9pcs | |
| Power supply | 5v/40A x 2pcs | |
| Thermal discharge | 2pcs cooling fans | |
| Pixel per cabinet | 48 x 48 dots | |
| Best viewing distance | 10m-330m | |
| Best viewing angle | 160°(w)120°(H) | |
| Temperature | storage:-35℃-+85℃ | |
| working:-20℃- +50℃ | ||
| Opration humidity | 10%-95% | |
| Thickness | 85mm | |
| Power | Working voltage | 220V±10% |
| Averange power consumption | 140W/sqm | |
| Max. power consumption | 420w/sqm | |
| Current | <20mA(single LED) | |
| Control system | CPU | Pentium 4 or above |
| Operation system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
| Driving device | Constant currentdriver IC | |
| Main technical parameter | Refresh frequency | >400HZ |
| Grey scale | 256levels of each color /16.7 colors | |
| Power switch | Auto matic switch | |
| Display mode | 800*600/10 |
Good service After-sale
1.Two years warranty for the whole system except human factor and force majeure
2.Three years quality warranty, lifetime maintenance, and guarantee the maintenance time in contract.
3.During the warranty period: solve problems for users through the phone, fax or E-Mail. Update the software free of charge.
4.As to the product quality problems caused by design, manufacture, installation technology, material, the replacement and maintenance are free. The system damage caused by force majeure(flood, fire, earthquake, war and so on) as well as users) man-made disturbance(construction, cleaning ) should be coordinate by both sides to solve.
Product Features
Mainly for outdoor advertising, information publishing, journalism and communication in some places , such as cultural square, traffic arteries, stations, terminals, information centers, entertainment venues, shopping, centers, commercial city and etc.
1. High brightness DIP LED is used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly.
2. With Anti-UV ray mask, the color of the mask would never change .
3. Weatherproof design, completely outdoor use.
4. Easy for assembling and connection with the connector added.
5. High color uniformity and clear image can bring you a vivid audio visual effect.
6. Both front and rear access are available.
