Product Details

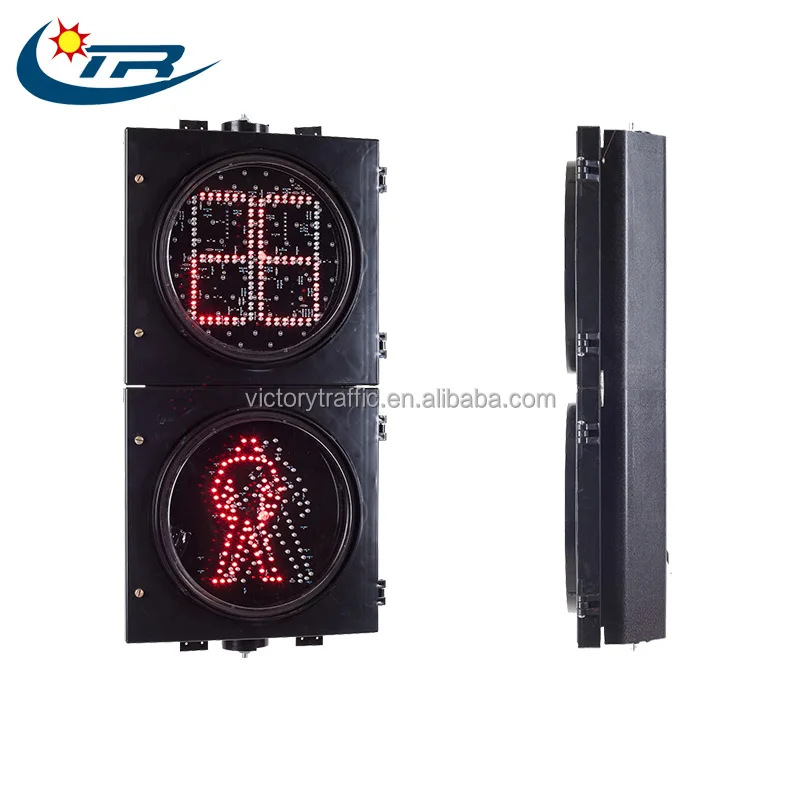

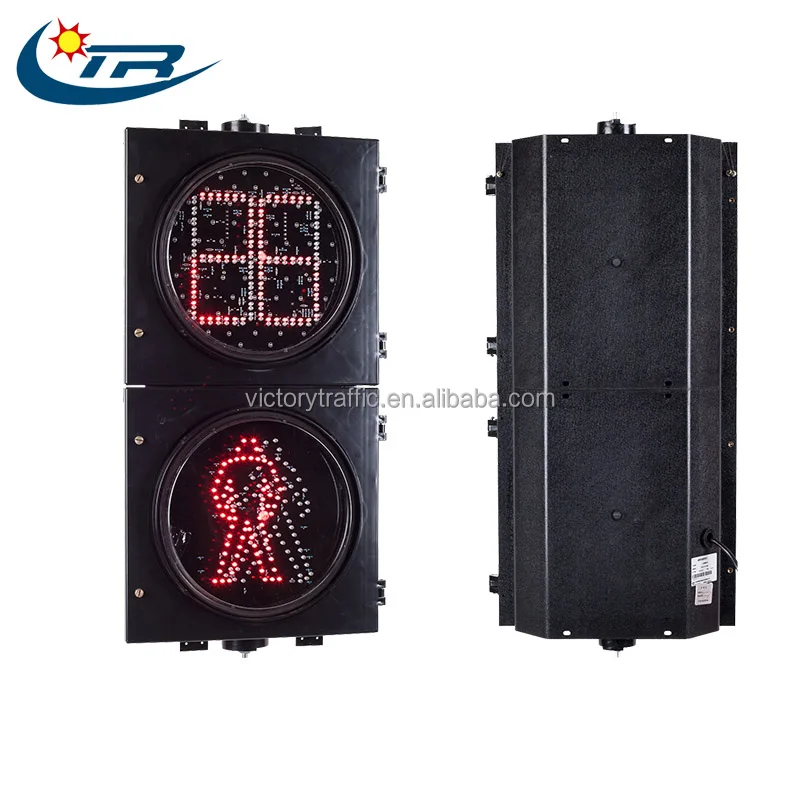

Pedestrian crossing light specification
Specification | |||
Model | RX3003-221S/L-2M2K | ||
Luminous diameter | 300mm | ||
Color | Red | Yellow | Green |
Qty of LED | 241 | - | 233 |
LED Light intensity | 500-5500mcd | 4000-5000mcd | 9000-10500mcd |
LED Chromatic value | 620-625nm | 589-591nm | 503-505nm |
LED Irrigation angle | 30º | ||
LED Lifetime | ≥50000h | ||
Rated Voltage | DC24V±20%,optional AC220V | ||
Max Power | 5.59w | ||
Average Power | 3.61w | ||
Housing material | PC | ||
Standard | GB14887-2011 | ||
IP grade | IP54 | ||
Working Temperature | -40ºC~80ºC | ||
Environment Humidity | ≤95% | ||
Packing Size | 860*405*330 mm(2 pieces/Packing) | ||
Gross Weight | 16.2Kg | ||
Advantages of LED Traffic Light:
High Brightness: adopts to high quality LED Chip light-emitting unit colorful, bright
Low-Power: adopts to low power dissipation circuits design, power consumption only one-tenth of incandescent power, working power is less than 10W;
Long Life: Life of up to 50,000 hours or more;
High Consistency: LED light units go by the strict separation, color temperature, brightness high degree consistency.
Limiting control: automatic calibration load current;
Brightness Balance: Balance current circuit coupled with specially designed optics, flash light special uniform;
Strictly aging: products go through power aging test, performance more stable;
Coating Protection: circuit board with environmental Three-Prevention coating, moisture proof, leak-proof electric, shockproof to extend operating life
