Product Details
POE has the capability to manufacture pcb ranging from basic single sided boards up to 28 layer multilayers ,and provide one stop turnkey services, including pcb layout, manufacture, assembly, components source and function testing. The superior service we offer our customers is the key to our success and our mission has remained the same since we started business in 1996: to provide high quality, technically advanced products within the customer’s timescales. This commitment, combined with the wealth of experience and expertise we have built up over the years, means we can offer a total solution to our customers PCB requirements – from front end engineering through to in time deliveries.
POE is specialized in high quality PCB & PCB Assembly production.We strive to provide the best contract manufacturing services.
- PCB Production Service. (FR-4,HI-TG,Aluminum,FPC,TEFLON,Rogers,CEM-1 )
- FPC,PCB Copy Service.
- PCB Assembly Service. (SMT, BGA, DIP)
- IC program with HEX file.
- PCBA Housing assembly serivce.
- PCBA Final Functional Testing.
- PCBA Copy Service.
- Electronic Components Purchasing & BOM List Purchasing Services.
- PCB SMT Stencil. (Laser cut & Etching)
- Cable assembly
Why us ?
Professional engineer team
To help you to check design and do engineering before production
Rich expierences in pcb production industry
To provide high quality and competitive price pcb.
After-sales service
Every problem you have will get our professional advice and solution.
Constant follow up
To make us have the fast reaction of your requirement.
Inspected by the Inspection Institution
ISO,UL,ROHS cerfiticated
Item | Capability |
1.Base Material | FR-4 / High TG FR-4 / Halogen Free material/Rogers/Arlon/Taconic/Teflon |
2.Layers | 1-28 |
3.Finised inner/outer copper thickness | 1-6OZ |
4.Finished board thickness | 0.2-7.0mm |
7.Min hole size | Mechanical hole: 0.15mm Laser hole: 0.1mm |
9.Controlled Impedance | +/-5% |
13.Plugging vias capability | 0.2-0.8mm |
15.Outline profile | Rout/ V-cut/ Bridge/ Stamp hole |
16.Surface treatment | HASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP… |
Our equipments | |
1.Drilling workshop | 4 drilling bits of drilling machine: 4 sets 2 drilling bits of drilling machine: 2 sets |
2. photo plotting workshop | Israel “ORBOTECH” Photo Plotters |
3.AOI | AOI machine |
4.IPQC | “OXFORD” CMI 700 Copper Thickness Tester |
5.Impedance test | USA “Tektronix” DSA 8200 Impedance Tester |
6.Outline workshop | CNC routing machine: 7 sets angle-cutting machine V-cut machine |
7.Testing Workshop | Surpass X-600: 2sets WTD FT-2808: 5sets WTD HV300: 1set |
8.X-ray | X-ray machine |
PCB
Layer | Quick Turn/Usual Time | Mass production |
2L | 24hours/ 4-5days | 8-10days |
4L | 48hours/ 6-7days | 10-12days |
6L | 72hours/ 7-8days | 12-14days |
8L | 72hours/ 8-10days | 16-18days |
10L | 96hours/ 12-14days | 18-20days |
... | ... | ... |
PCB Assembly
Quantity | Usual Time |
<20pcs | 2days |
20-100pcs | 3days |
100-1000pcs | 6days |
>1000pcs | Depend on BOM |
Application Fields
We produce PCBs for our customers working in frequency ranges from LED products to communication equipments and in industries as diverse as Medical devices through to automotive, aerospace and Bluetooth etc.
Product Showcase

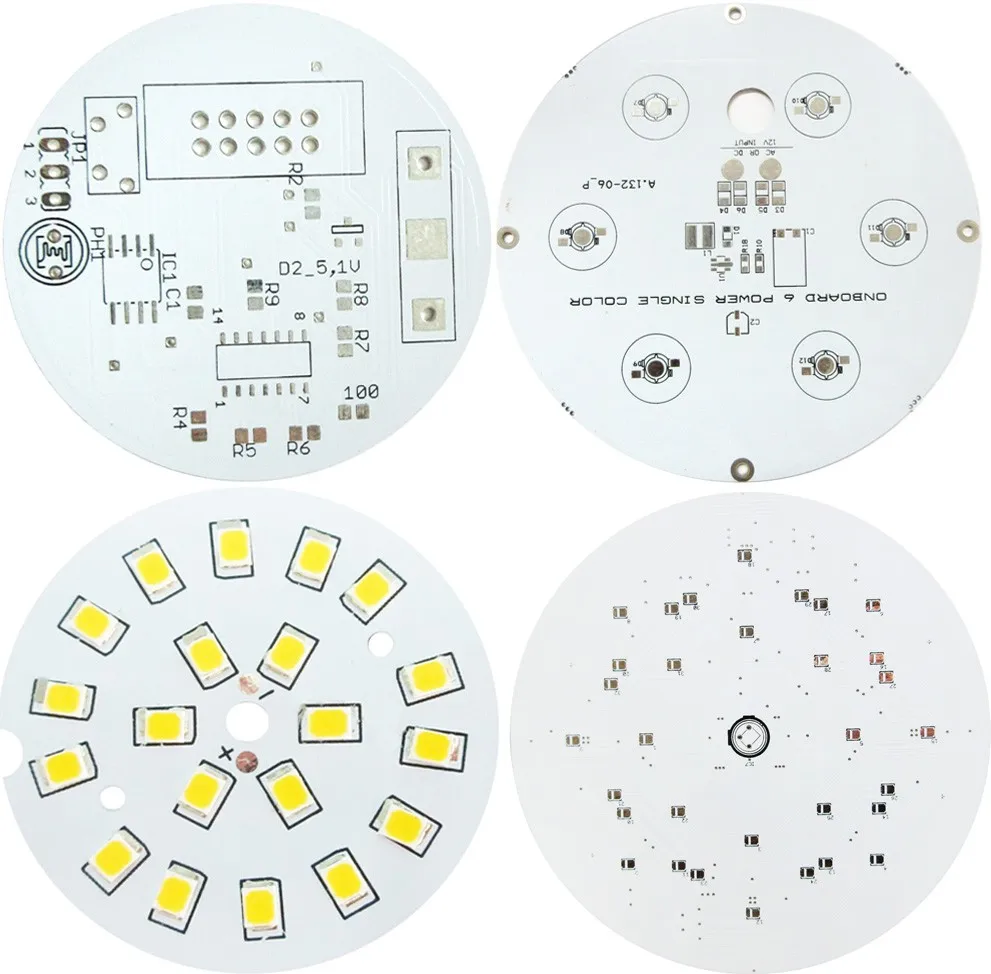

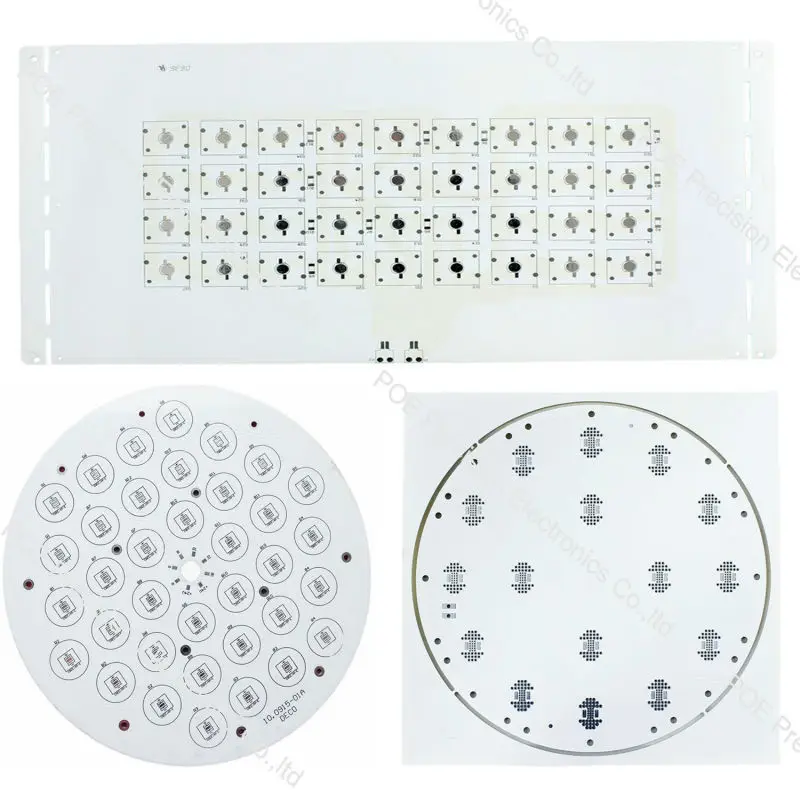

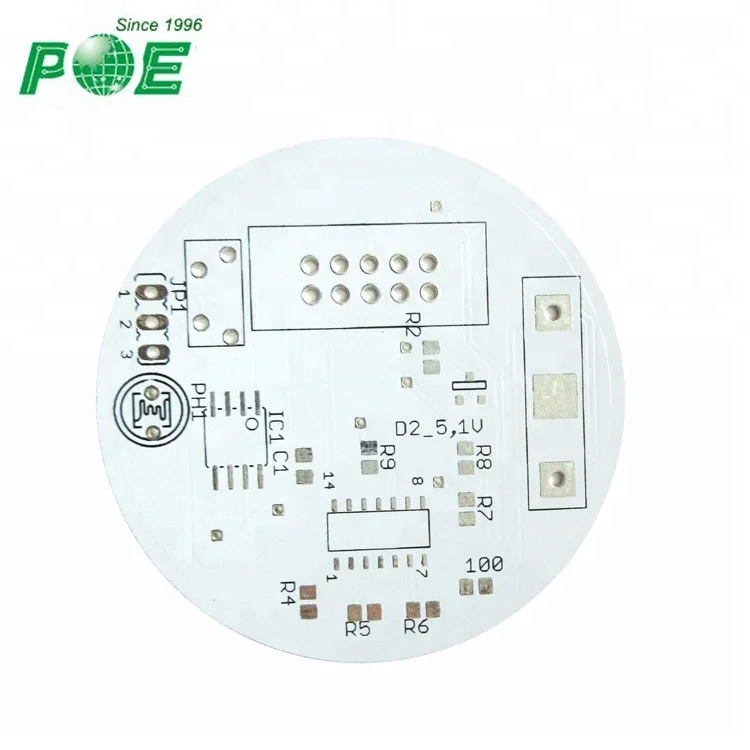

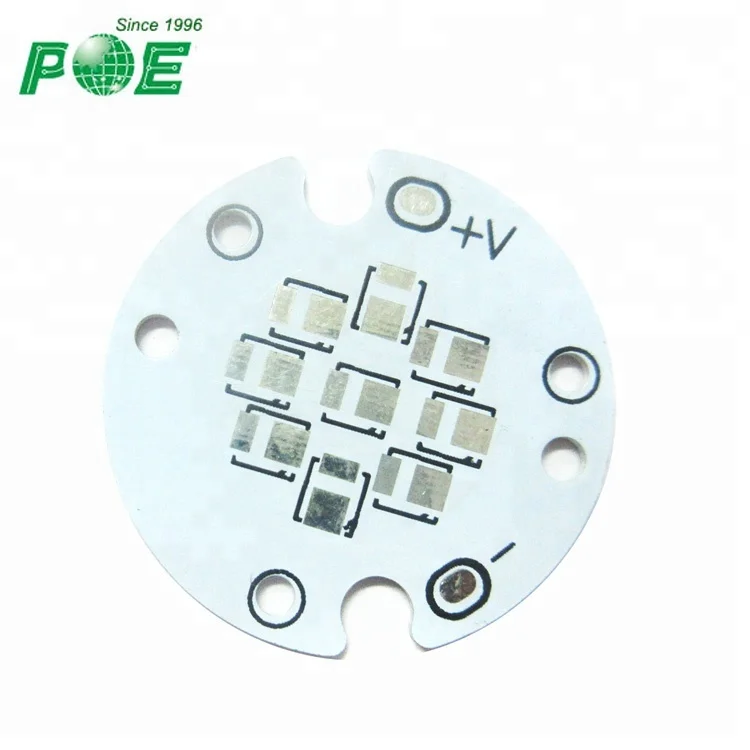

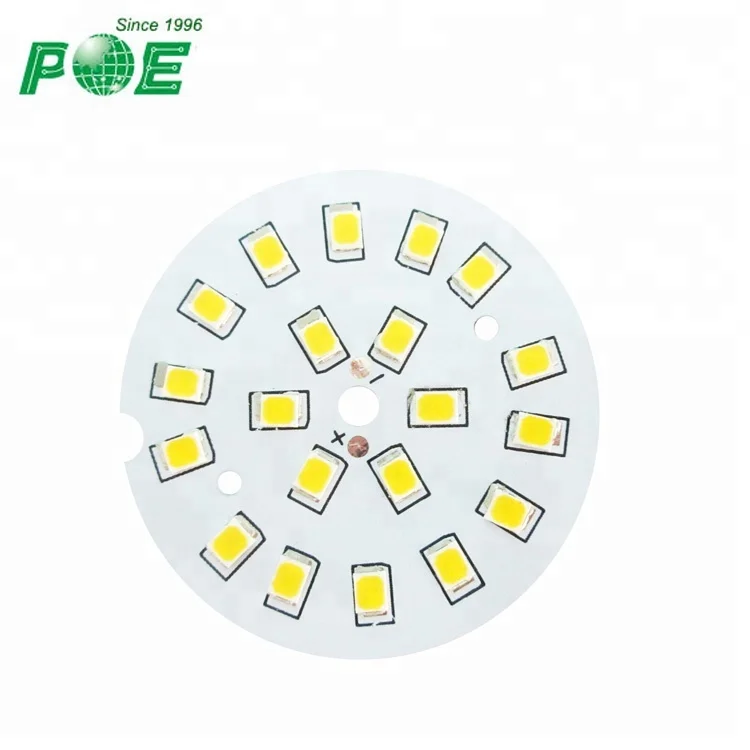

ROHS Aluminum Base Plate PCB LED
Q1.What is needed for quotation?
- PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
- PCBA: PCB information, BOM, (Testing documents...)
Q2. What file formats do you accept for production?
- Gerber file: CAM350 RS274X
- PCB file: Protel 99SE, P-CAD 2001 PCB
- BOM: Excel (PDF,word,txt)
Q3. Are my files safe?
Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
