Product Details

Product Description

Technical parameters

● Input voltage: 12-24VDC
● Output power: 12V, Max 144W 24V, Max 288W
● Output current: 3CH, 4A/CH
● Size: 86x86x37mm

● Output signal: RF(2.4GHz)+PWM

Detailed Images

Summary

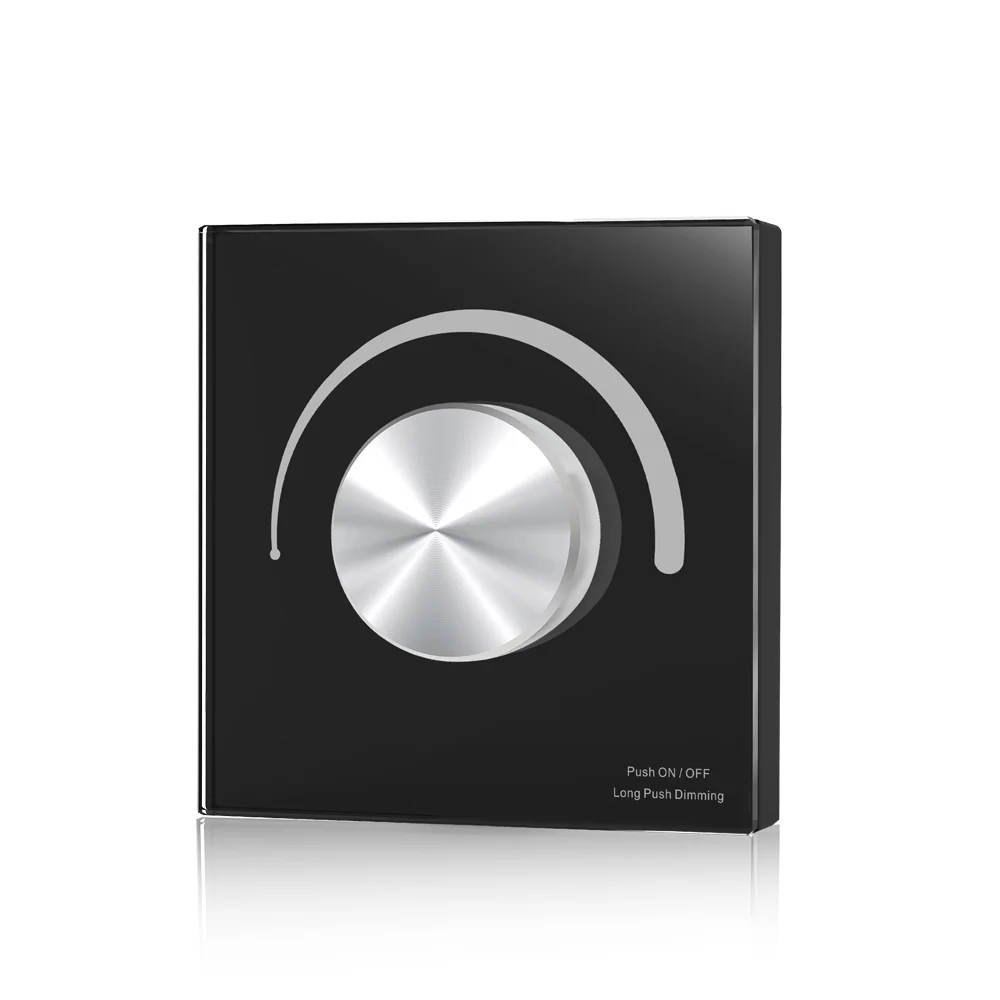

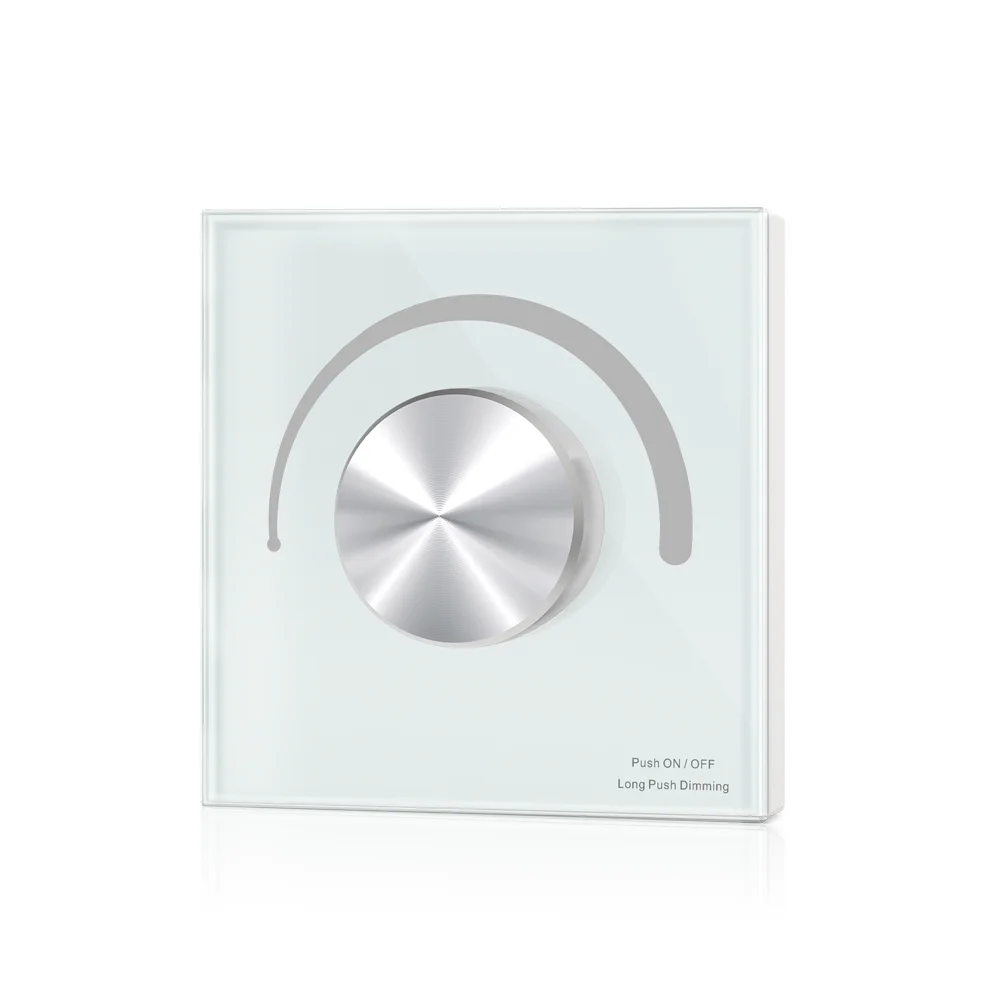

● Rotary panel single color, dual color or RGB PWM constant voltage controller, can also be used as single color, dual color, RGB remote.

● Rotate knob to change RGB color, color temperature or brightness.

● Smooth dimming and switch without any flickering.

● Adopt 2.4GHz wireless technology, remote distance up to 30m. when used as controller, can accept up to 10 remote control. when used as remote, can remote control multiple controller.

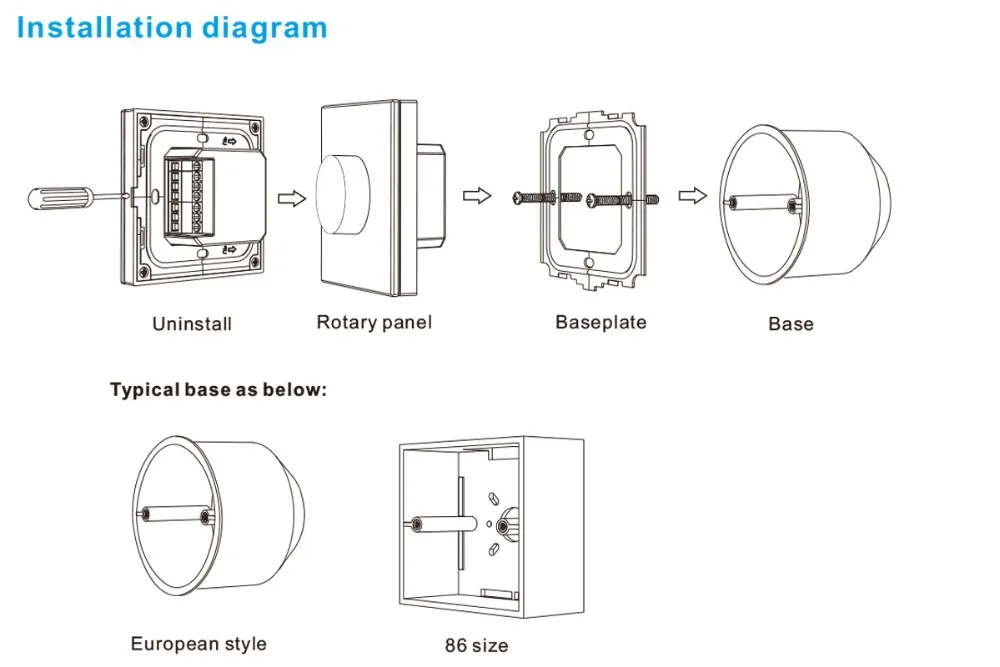

● Standard sizes: European 86x86mm

Our Service

Safety information

1. The product shall be installed and serviced by a qualified person.

2. This product is non-waterproof.Please avoid the sun and rain.

3. Goodheat dissipation will prolong the working life of the LED driver, please ensure good ventitation.

4. Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages to the LED lights.

5. If a fault accurs please return the product to your supplier.Do not attmept to fix this product by yourself.

Warranty agreement

1. 5-year warranty

●The warranty is for free repair or replacement and covers manufacturing faults only.

●Do not include fees of on site maintenance and consumumable parts.

2. Limited warranty

●Artificial damage caused by improper use, such as improper accessories, improper installation, did not follow the instructions, error using or negligence.

●Any damages caused by force majeure, such as natural disaster, abnormal voltage.

●The normal use of products caused by aging, wear and tear, but it does not affect the normal use.

Packing & Delivery

FAQ

1. Are you a manufacturer or a trading company?

We are a light control manufacturer with professional R&D team and strong production capacity.We also have more than 20 patents.

2. What kinds of export certifications of Skydance products?
All Skydance items are CE and RoHS approved.

3. Could you provide the OEM or ODM service?
We provide OEM&ODM service for customers according to customer demand.

4. Are Skydance products self-development?
Yes, all of our items are self-research and self-development.We release new designs every month to support our agent&clients with better competition in this industry.

5. What is the warranty for Skydance product?
All Skydance controllers and remotes have 5 years warranty; Dimmers and drivers have 3 years warranty from the purchase date, free repairs or replacements during this period.
In both the material selection and structure design, we have been adhering to a philosophy that we will offer the most durable controller for consumers .

6. What' s the main products of Skydance?

Skydance mainly specilized in two kinds of product lines.
One is professional line control system for LED lighting project which includes DMX system, 0/1-10V system, AC Triac series, SPI system, Signal Converter and power repeater etc.
The other is retail line wireless control system for smart home LED lighting control which includes RF 2.4G system, 433 system, smart touch panel controllers, WIFI series, RF remote and Dimmable drivers etc. It goes with color box set package or blister set package for good retail display.

7. How to purchase Skydance products?
Send inquiry to us or chat on line.Professional sales team will follow up immediatelly.
