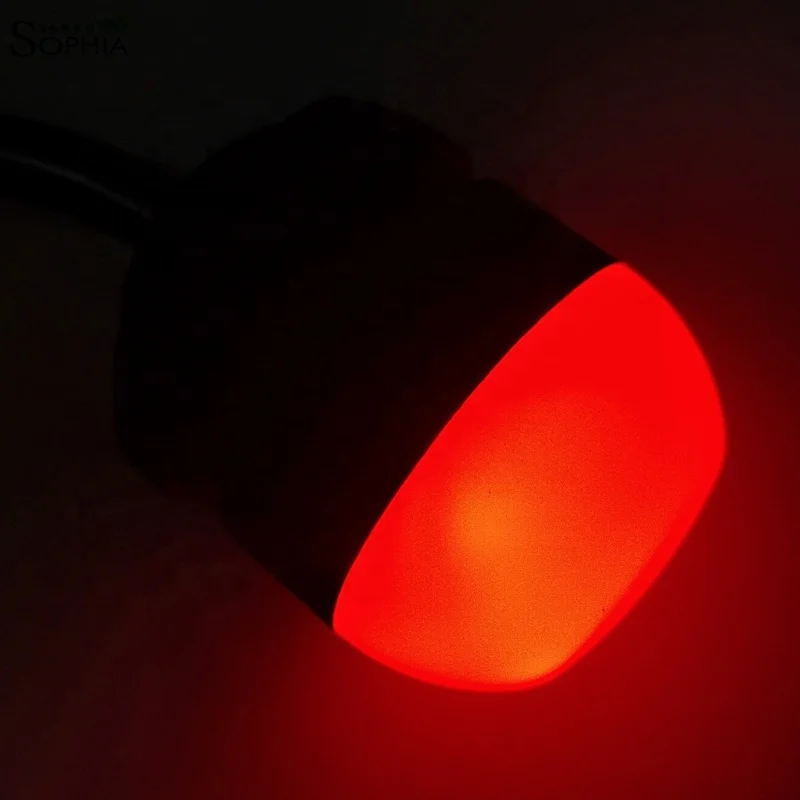

Sophia 30mm diameter 12V R, G, B, Y led indicator light, pilot light IP69K
M22x1.5 thread with Nut, Gasket for direct mount
With Red, Yellow, Green, Blue colors
Quick Spec
Item No. | RL30 series |
Standard voltage | 12V dc(10% fluctuation), 24V dc(10% fluctuation) |
Maximum current(LED color) | 40mA@12V dc; 20mA @24V dc |
Buzzer | No buzzer available |
Color options | Four: Red, Yellow, Green or Blue. Each color control separately, and can combine randomly |
Polarity | No |
Response time(on/off) | <10 ms |
Body color | Black |
Lens color | Milk color |
Connection | 1 meter cable or 30cm cable with M12 quick disconnet |
Working temperature (℃) | -40℃~50℃ |
Max Op. Relative Humidity | 95% at 50℃ |
IP rating | IP69K |
Dimension | 30mmx38.2mm(ODxH) |
Mounting thread | M22x1.5mm |
Material | ABS and Polycarbonate |
Approval | CE FCC |
