Product Details

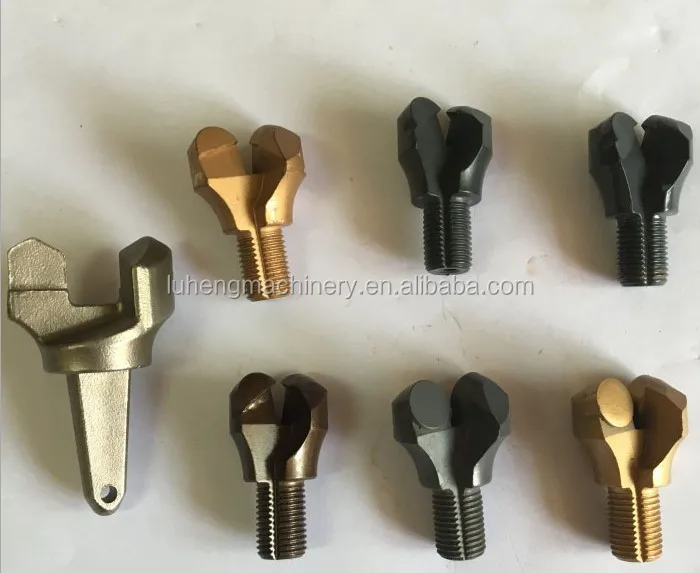

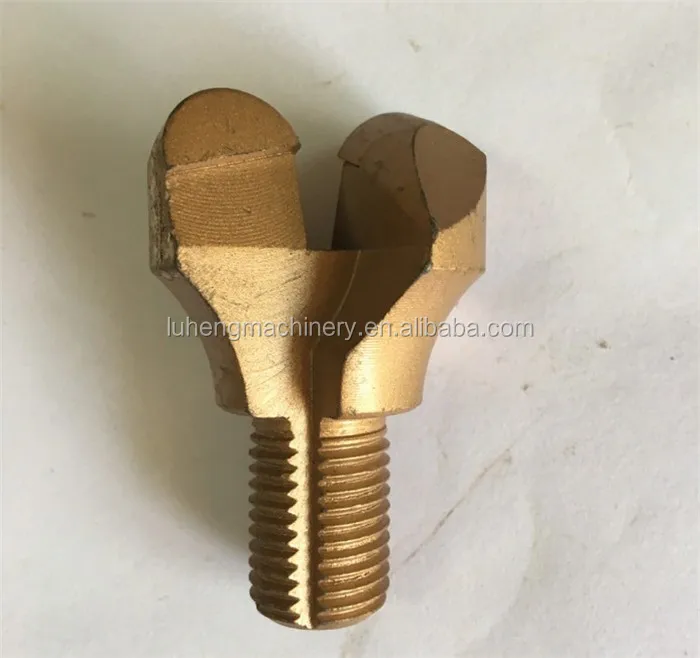

Two-wing PDC anchor shank coal mining drill bits
Two-wing PDC anchor shank coal mining drill bits
Technology Parameters
| Name | button bits | ||||||
| Brand | Drills-King | ||||||
| Size | dia25mm~dia127mm | ||||||
| Application | Soft rock, loose-medium rock, hard rock and any other special formations | ||||||
| Button bit face design | flat face, dome face, drop center face | ||||||
| Thread | R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60 | ||||||
| Taper | 7 ° , 11 ° , 12 ° | ||||||
Specifications of Taper/Thread button drill bit
| Diameter | NO*Button Dia | Gauge | Flushing | Approx"s | Part No. | |||
| Dia | Front | Gauge | Buttons | Hole | Weight | |||
| mm | inch | EA | EA | Angle | Front | Side | kg | |
| 32 | 1 1/4 | 2*7 | 3*8 | 35 | 1*6 | 2*4 | 0.2 | Q532-722 |
| 33 | 1 19/64 | 2*7 | 4*7 | 40 | 1*5 | 1*5 | 0.2 | Q633-722 |
| 33 | 1 19/64 | 2*7 | 5*7 | 35 | 2*4 | 1*4 | 0.2 | Q733-722 |
| 34 | 1 11/32 | 2*7 | 4*7 | 40 | 1*5 | 1*5 | 0.29 | Q634-722 |
| 35 | 1 3/8 | 2*7 | 5*7 | 35 | 1*5 | 1*5 | 0.22 | Q735-722 |
| 36 | 1 27/64 | 1*8 | 3*9 | 40 | 1*6 | 1*6 | 0.3 | Q436-722 |
| 36 | 1 27/64 | 2*7 | 4*7 | 40 | 1*6 | 1*6 | 0.35 | Q636-722 |
| 36 | 1 27/64 | 2*7 | 5*8 | 35 | 1*6 | 1*5 | 0.3 | Q736-722 |
| 38 | 1 1/2 | 1*9 | 3*9 | 40 | 1*6 | 1*6 | 0.35 | Q438-722 |
| 38 | 1 1/2 | 2*8 | 4*8 | 40 | 1*6 | 1*6 | 0.35 | Q638-722 |
| 38 | 1 1/2 | 2*7 | 5*8 | 35 | 1*6 | 1*5 | 0.35 | Q738-722 |
| 38 | 1 1/2 | 2*7 | 5*9 | 40 | 2*4 | 1*4 | 0.35 | Q738-722A |
| 40 | 1 37/64 | 1*9 | 3*9 | 40 | 1*6 | 1*6 | 0.35 | Q440-722 |
| 40 | 1 37/64 | 2*7 | 5*9 | 35 | 1*6 | 1*5 | 0.35 | Q740-722 |
| 41 | 1 5/8 | 2*7 | 5*9 | 35 | 1*6 | 1*5 | 0.35 | Q741-722 |
| 42 | 1 21/32 | 1*9 | 3*9 | 30 | 1*6 | 1*6 | 0.35 | Q741-722 |
| 42 | 1 5/8 | 2*7 | 5*9 | 35 | 1*6 | 1*5 | 0.35 | Q442-722 |

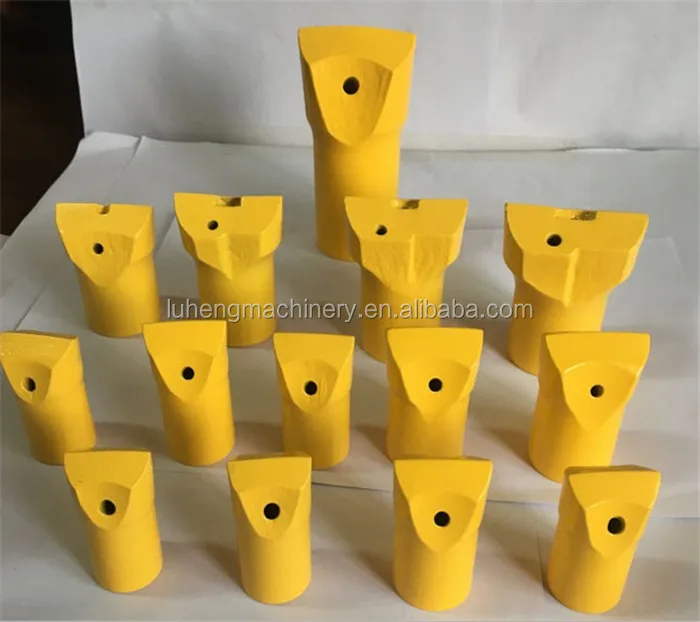

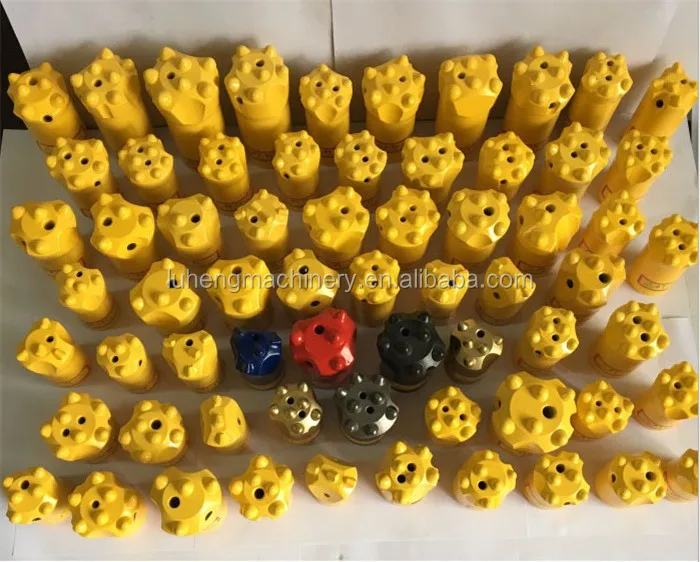

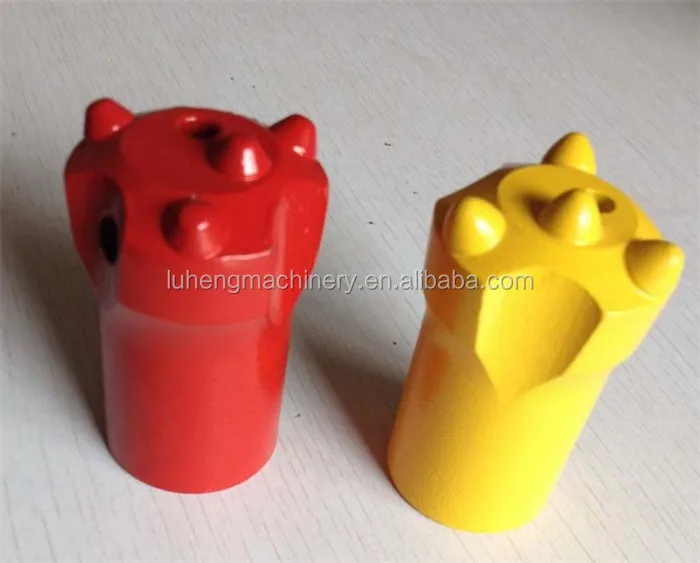

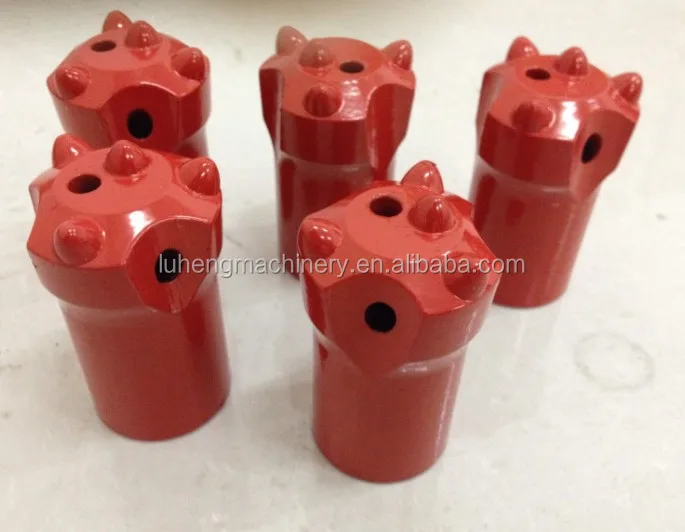

The real details photo
