Product Details
Length | Product code | Power | Lumen | Luminous efficacy(Im/w) | Input Voltage | CCT | Function |
|---|---|---|---|---|---|---|---|
600mm | T012D-20 | 20W | 2200LM | 120LM/W | AC 220-240V | 3000K-4000K-5000K 6000K or Tri-color 3000-4000-5000K 3000-4500-6000K 4000-5000-6000K | Non-Dimmable 1-10V DALI Emergency PIR Sensor Microwave Sensor |
T012D-30 | 30W | 3400LM | |||||
1200mm | T014D-40 | 40W | 4800LM | ||||
T014D-50-TC | 50W/46W/42W/36W | Max 6000LM | |||||
1500mm | T015D-40 | 40W | 4800LM | ||||
T015D-60 | 60W | 7200LM | |||||
T015D-60-TC | 60W/55W/50W/40W | Max 7200LM |
Length | Product code | Power | Lumen | Luminous efficacy(Im/w) | Input Voltage | CCT | Function |
|---|---|---|---|---|---|---|---|
600mm | T012S-20 | 20W | 2600LM | 140LM/W | AC 220-240V | 3000K-4000K-5000K 6000K or Tri-color 3000-4000-5000K 3000-4500-6000K 4000-5000-6000K | Non-Dimmable 1-10V DALI Emergency PIR Sensor Microwave Sensor |
T012S-30 | 30W | 4000LM | |||||
1200mm | T014S-40 | 40W | 5600LM | ||||
T014S-50-TC | 50W/46W/42W/36W | Max 7000LM | |||||
1500mm | T015S-40 | 40W | 5600LM | ||||
T015S-60 | 60W | 8400LM | |||||
T015S-60-TC | 60W/55W/50W/40W | Max 8400LM | |||||
T015S-80 | 80W | 11000LM |
Ceiling mounted

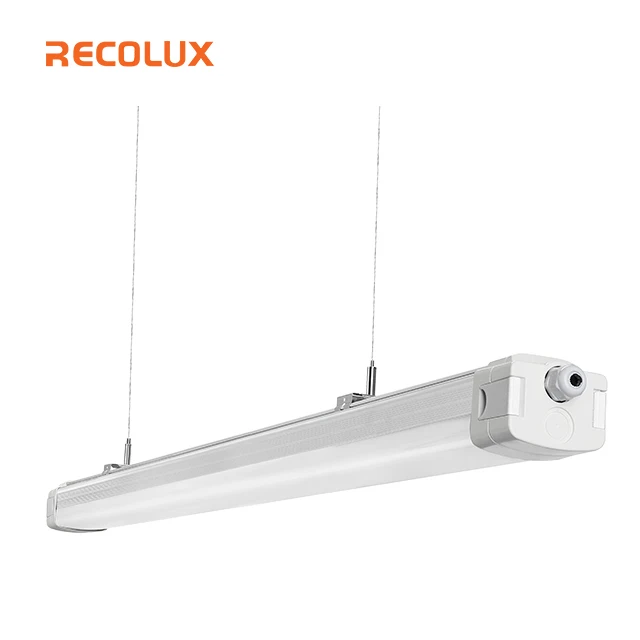

Suspension

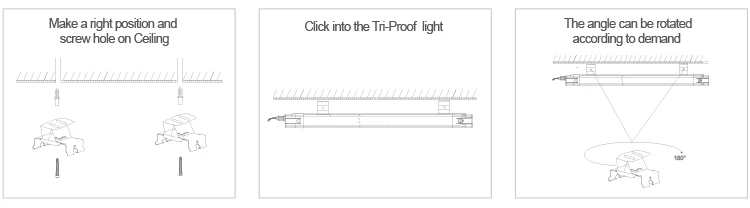

Rotatable Ceiling Mounting

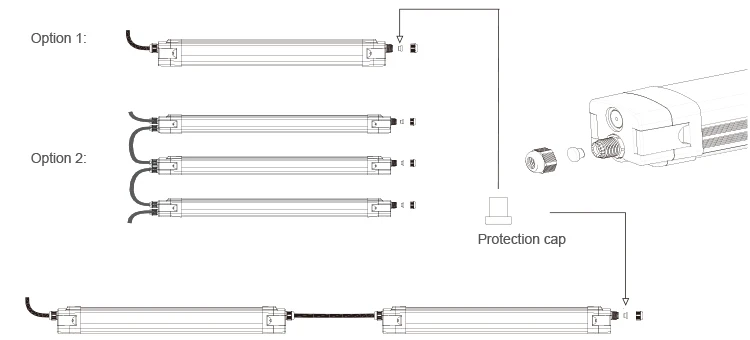

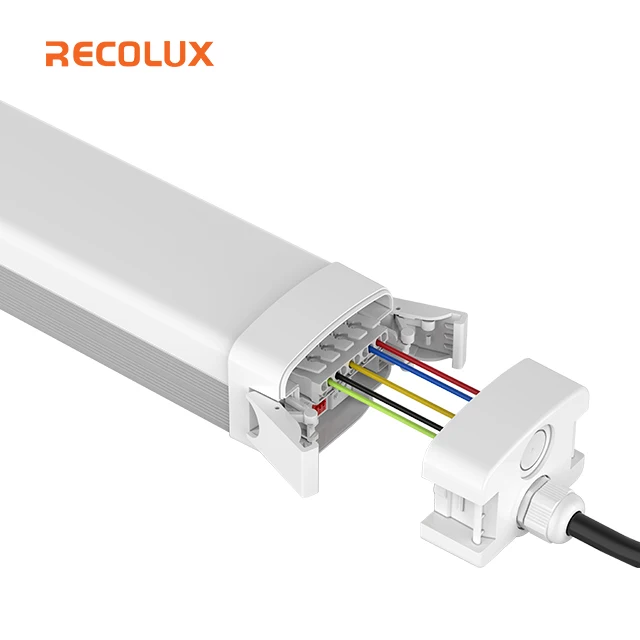

Single Wired or Linkable ( Double Wired )
Length | Single Box | Outer Carton | Qty/Carton | Unit N.W | G.W/Carton |
|---|---|---|---|---|---|
600mm | 1Pcs | 730*285*180mm | 6Pcs | 1350g | 8.5Kg |
1200mm | 1Pcs | 1320*285*180mm | 6Pcs | 2450g | 14Kg |
1500mm | 1Pcs | 1630*285*180mm | 6Pcs | 3250g | 17.5Kg |
1800mm | 1Pcs | 1930*270*210mm | 6Pcs | 3550g | 22Kg |
2400mm | 1Pcs | 2530*280*180mm | 6Pcs | 4950g | 30Kg |
Q1. Do you have any MOQ limit for led light order?
A: We have no MOQ limit.
Q2. What about the lead time?
A: Sample order: 5~7 working days Bulk order: 10~20 working days after deposit ~/ full payment, it usually depends on the quantity.
Q3. How do you ship the goods and how long does it take to arrive?
A: Small quatity is usually shipped by UPS/Fedex/TNT/DHL/Air. Sea shipping for bulk order are also available.
Q4. How to proceed an order for led light?
A: Step 1, Pls tell us about your requirements or applications.
Step 2, We quote in accordance with your requirements.
Step 3, Customer confirms the samples and places deposit for formal order.
Step 4, We arrange the production.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 5~7 years warranty to our products.
Q6: Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you have OEM or ODM experience?
A7: Yes, we focus on led lighting for years and have lots of big cases. We are able and will be happy to be your official supplier.
Q8. What's your production line?
Our products include LED Tri-proof Light, LED Linear Trunking System, LED Linear Track Light, LED Batten, etc.
