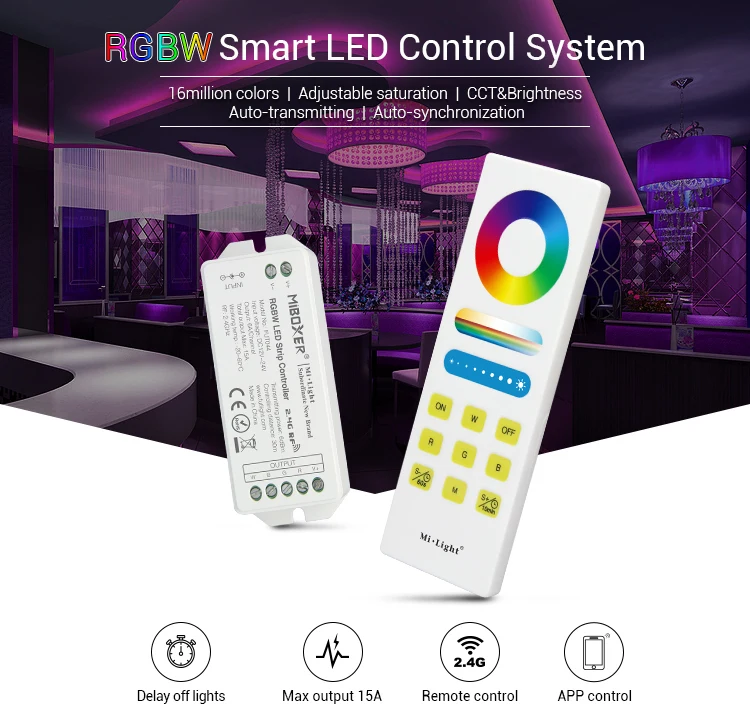

ZigBee 2.4G Smart RGB LED Strip Controller RGBW LED Controller for Led light
Key Feature:
Smart(set) LED strip control system is our newly developed high-end LED controller controlled by wireless remote controller, also with smart phone control and 4G long distance control(2.4GHz gateway is needed).

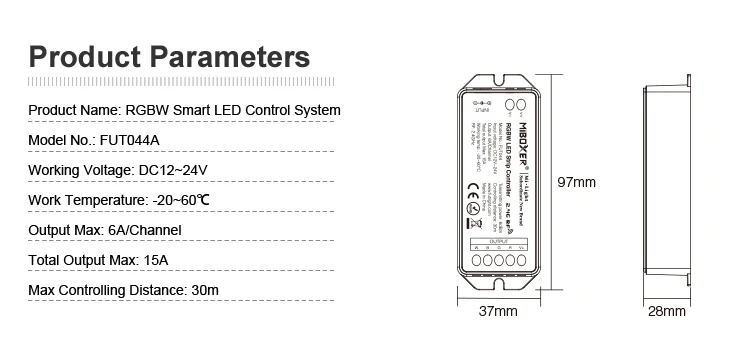

Product Paramenters
| Controller |
Remote control
|
|
Model No.: FUT043 / FUT044 / FUT045
|
Model No.: FUT088 |

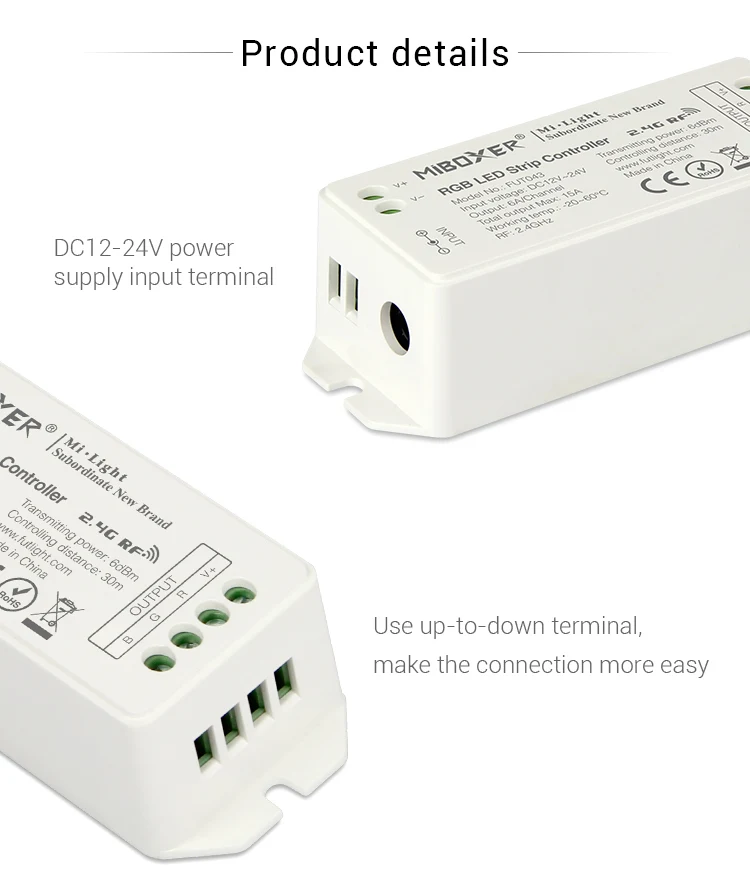

| Working Voltage: DC12V~24V | Working Voltage: 3V(2*AAA Battery) |
| Output Max: 6A/Channel | Transmitting Power: 6dBm |

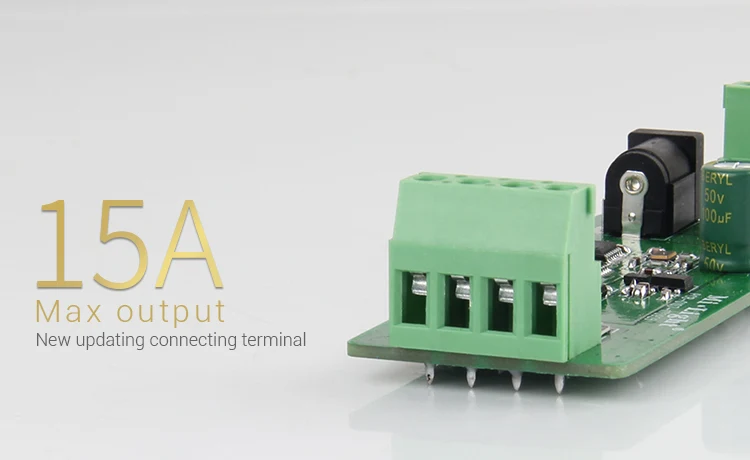

| Total Output Max: 15A | Standby Power: 20uA |
| Working Temperature: -20~60°C | Working Temperature: -20~60°C |
| RF: 2.4GHz | Radio Frequency: 2400-2483.5MHz |
| Max Controlling Distance: 30m | Modulation Method: GFSK |
| Output Connection: Common anode | Control Distance: 30m |
| Size: 37*28*97mm |
| Dynamic Mode Sheet |
|
Number
|
Dynamic Mode
|
Brightness &Speed
|
Saturation
|
|
1
|
Seven color gradual change
|
Adjustable
|
Adjustable
|
|
2
|
White light Gradual change
|
Unadjustable
|
|
|
3
|
RGB gradual change
|
Adjustable
|
|
|
4
|
Seven color jump to change
|
||
|
5
|
Jump to change randomly
|
||
|
6
|
Red light gradual change+Flash 3times
|
||
|
7
|
Green light gradual change+Flash 3times
|
||
|
8
|
Blue light gradual change+Flash 3times
|
||
|
9
|
White light gradual change+Flash 3times
|
Unadjustable
|
Remark: The light can be working after linking with the remote controller.
Code Matching
1.Switch off the light, after 10 seconds switch on again.
2.When the light on, short press " ON " 3 times within 3 seconds.
3.The light blink 3 times slowly means the linking is done successfully.
Need your attention:
If the light not blink slowly, the linking failed, Pls switch off the light again, and follow the above steps again.
Code Clearing
1.Switch off the light, after 10 seconds switch on again.
2.When the light on, short press " ON " 5 times within 3 seconds.
3.The light blinking 10 times quickly, means the unlinking successfully.
Need your attention:
If the light not blink quickly, the unlink failed, pls switch off the light again, and follow the above steps to unlink again.
We specialize in this field for several years,with best quality,best service and competitive price always for you!
1. Professional free Design
2. OEM Support
3. Low MOQ
4. Fast Delivery
5. Door to Door Service
6. Win-Win Cooperation
We undertake the production of various kinds of LED lamps and lanterns and led lighting accessories, technical support and output,welcome you to contact us for any help in any time,thanks.
