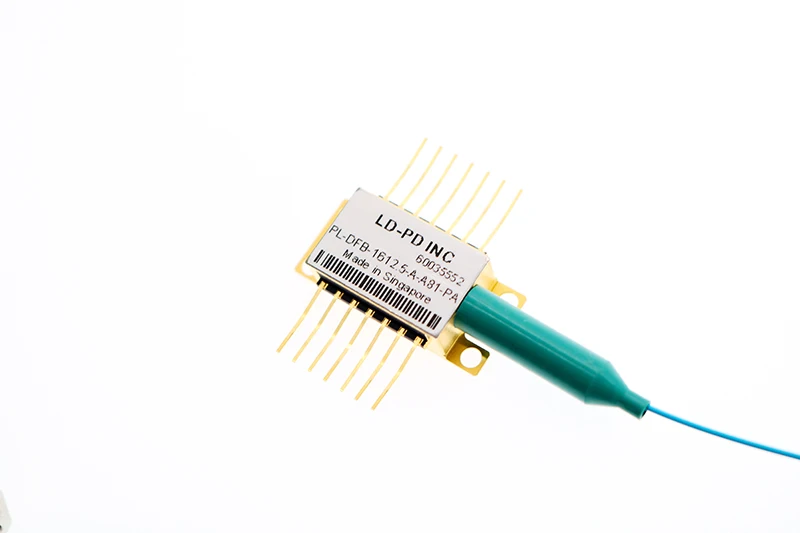

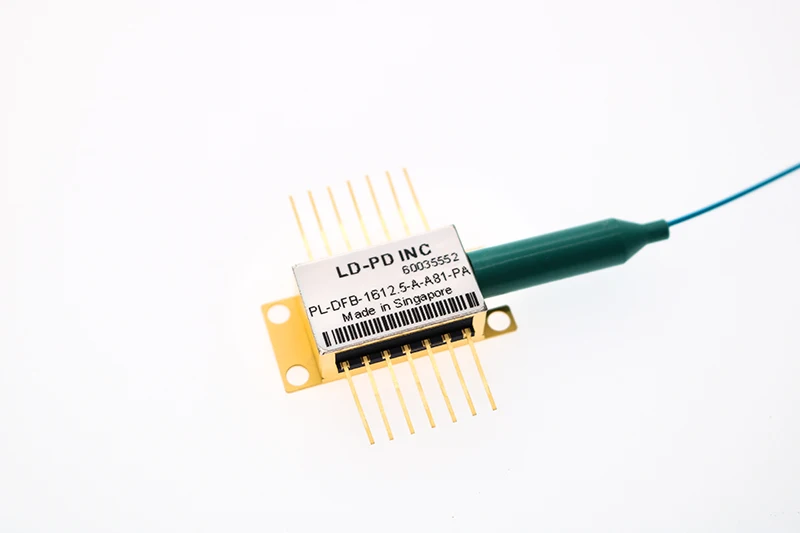

Product Description








Features

Narrow Linewidth < 2MHz

 Excellent wavelength control and stability

 Industry Standard 14 pin Butterfly package

Mode-Hop free tuning

Excellant reliability

 Customer specific wavelengths available

Laser Specifications

Electrical/Optical Characteristics (Tsub=25°C, CW bias unless stated otherwise)



Parameter Symbol Min Typ Max Unit
Centre Wavelength λ 1612 1612.5 1613 nm
Side Mode Suppression Ratio SMSR 30 40   dB
Threshold Current Ith   20 30 mA
Operating Current Iop   80 120 mA
Chip output Power Pf 10 15 30 mW
Quantum Efficiency η 0.08 0.12   mW/mA
Current Tuning Coefficient λ/I   0.015   nm/mA
Temperature Tuning Coefficient λ/T   0.12   nm/K
Forward Voltage Vf   1.3 2 V
Thermistor Resistance RT 9.5 10 10.5
Thermistor Temp. Coefficient     -4.4   %/°C
Connector FC/APC

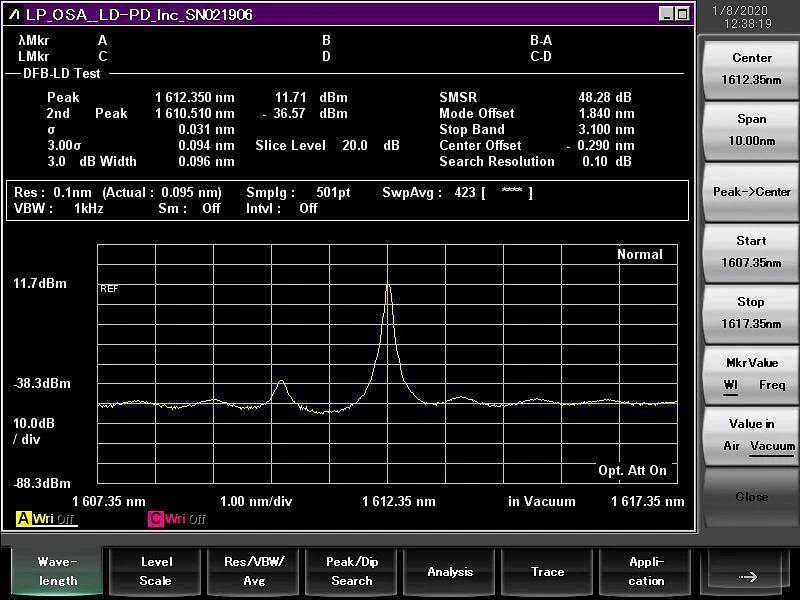

Spectrum

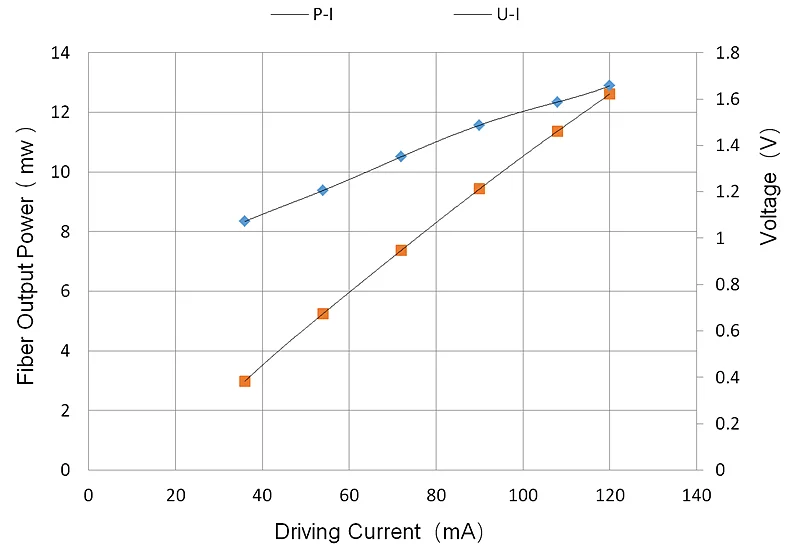

L-I Curve

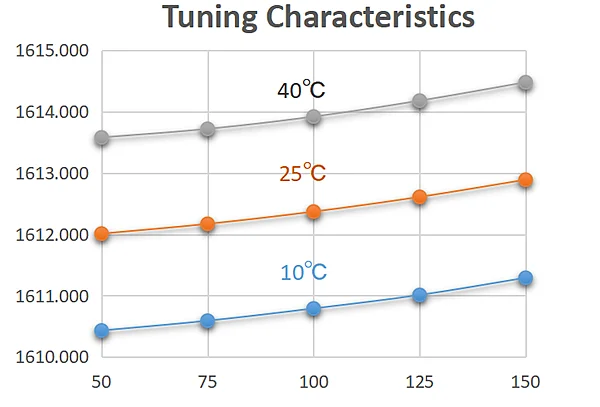

Tuning Characteristics

DFB Linewidth Testing Result

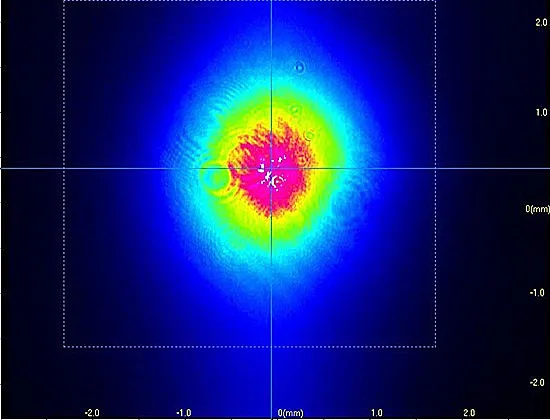

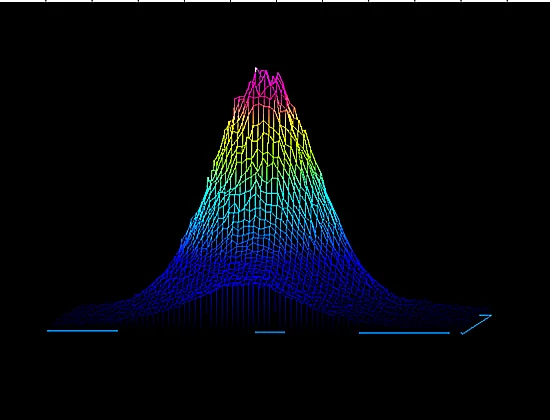

Beam Quality Profiler (2D/3D)

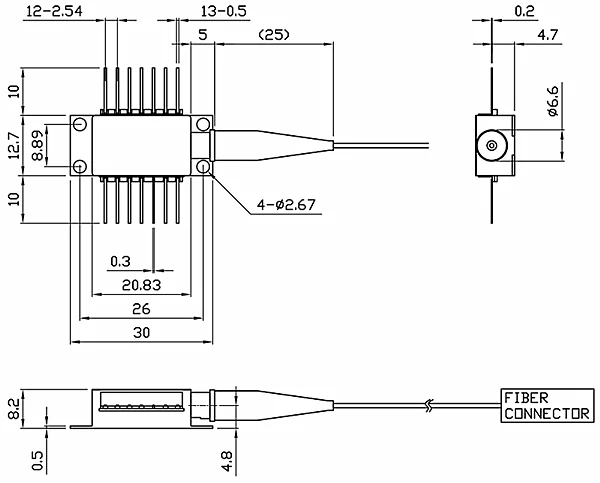

Pin Connection

PIN# Function PIN# Function
1 Thermistor 8 NC
2 Thermistor 9 NC
3 NC 10 NC
4 PD Monitor Anode (-) 11 Laser Anode (+),Case Ground
5 PD Monitor Cathode (+) 12 RF Laser Input Cathode (–)
6 Thermoelectric Cooler (+) 13 Laser Anode (+),Case Ground
7 Thermoelectric Cooler (–) 14 NC



Absolute Maximum Ratings

Item Unit Min Typ Max
Case Temperature   ℃ -5 25 70
Chip Temperature 10 25 40
Operating Current mA 0 100 150
Forward Voltage V 0.8 1.2 1.8
TEC Current A - - 1.2
Reverse Voltage(LD) V - - 2
Reverse Voltage(PD) V - - 20



Application

 Tunable diode laser absorption spectroscopy

 CH4 Monitoring

OEM Info

PL-DFB-1612.5-A1

: Wavelength

1392: 1392nm

1512: 1512nm

1567: 1567nm

1572: 1572nm

*****

1612.5: 1612.5nm

: Output Power

A: 10mW

B: 20mW

: Wavelength Tolerance

1: ±1nm

2: ±2nm

XX: Fiber and Connector Type

SA=SMF-28E+ FC/APC

SP=SMF-28E+ FC/PC

PP=PM Fiber+ FC/PC

PA=PM Fiber+ FC/APC
