High quality 660nm 100mw red laser diode for medical instruction testing

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Electronic Components & Supplies
  • Validity Period:

    Long Term

  • Published on:

    2020-12-18 13:59

  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

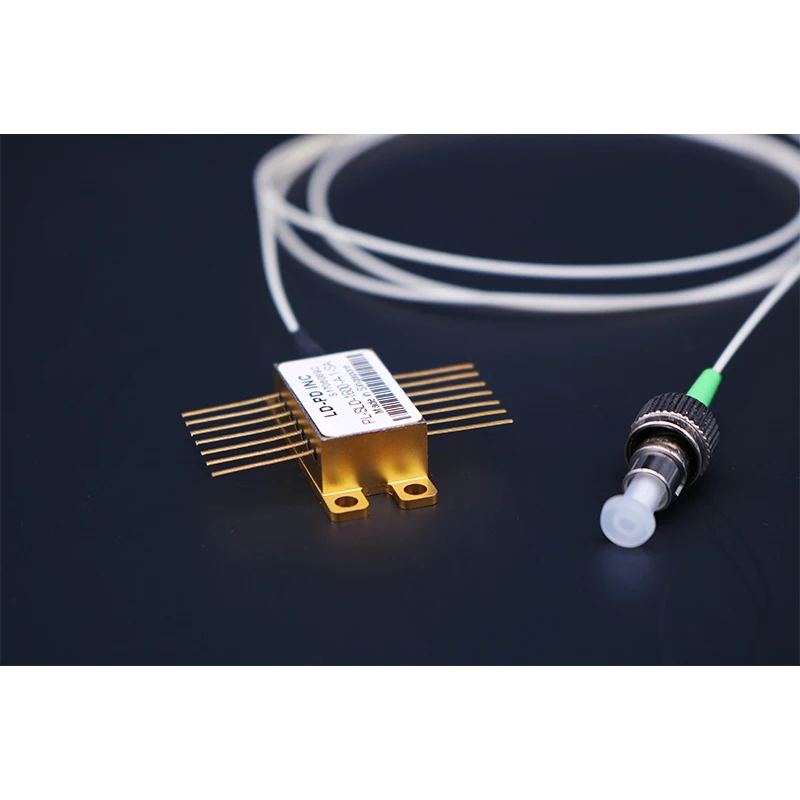

Product Details

Product Description








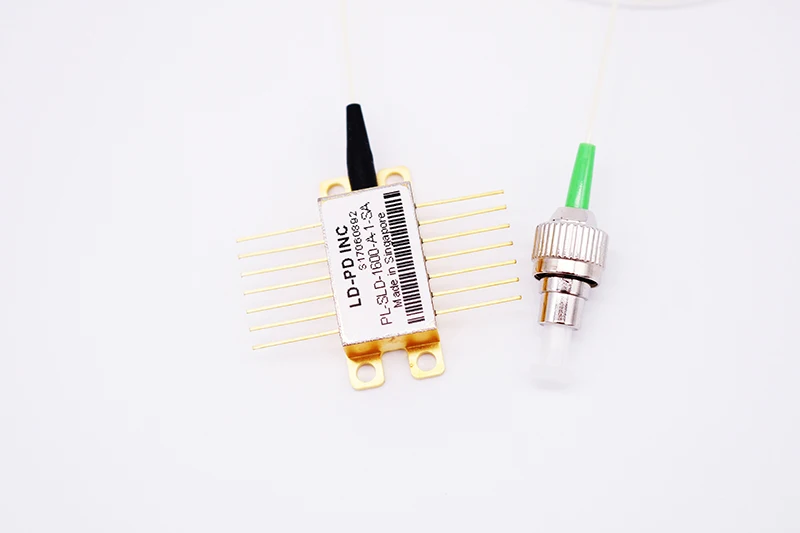

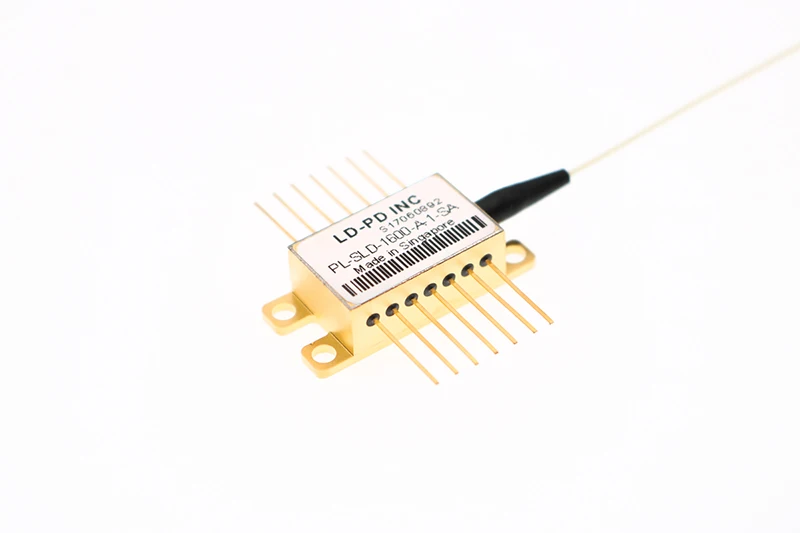

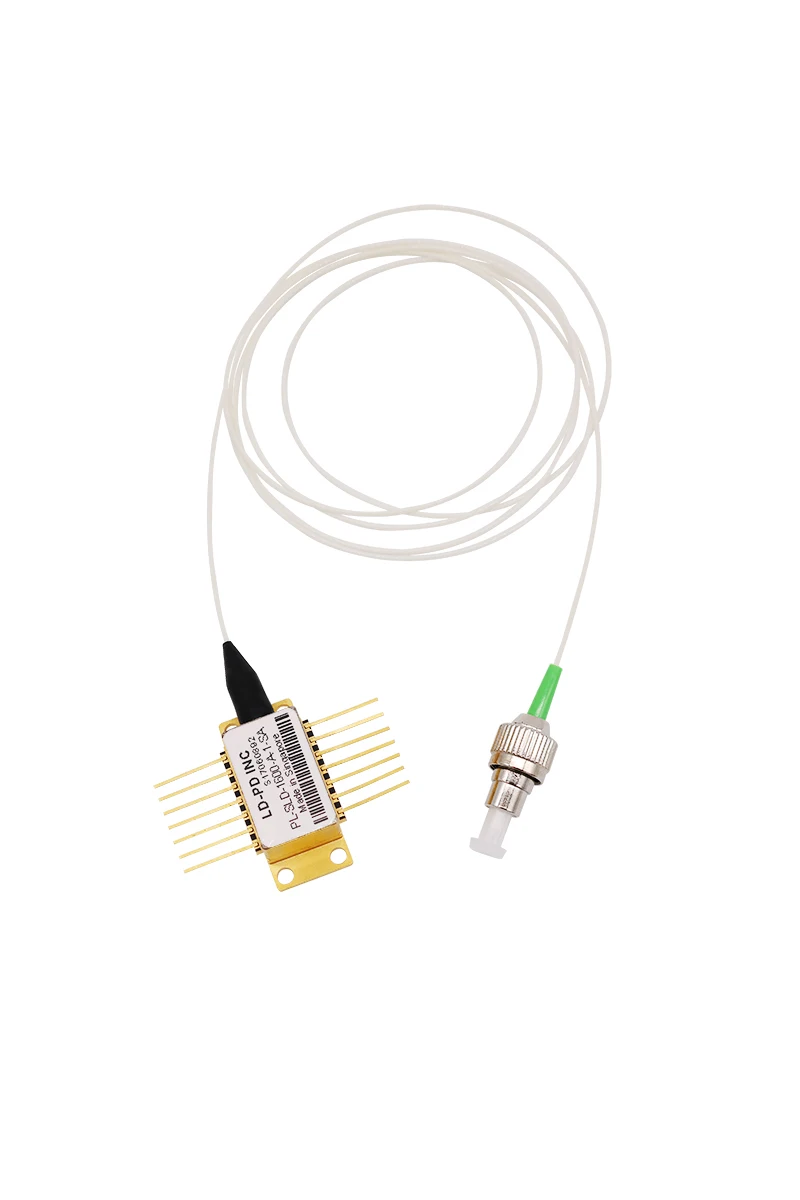

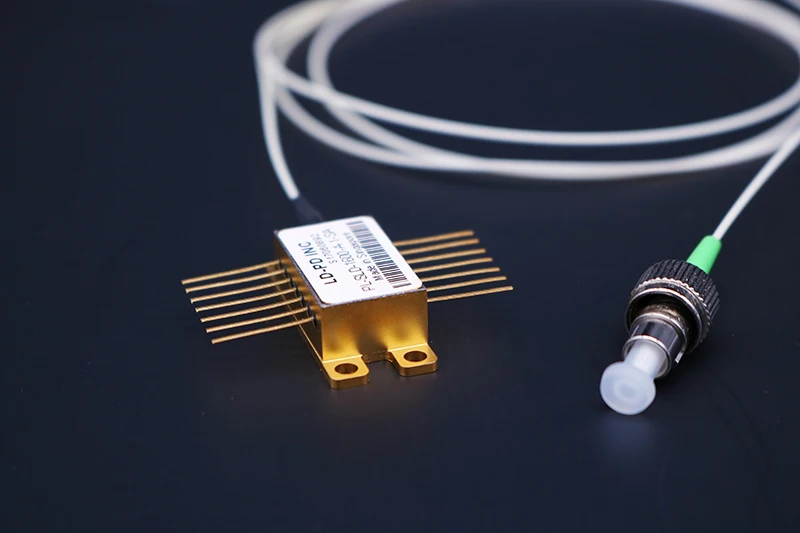

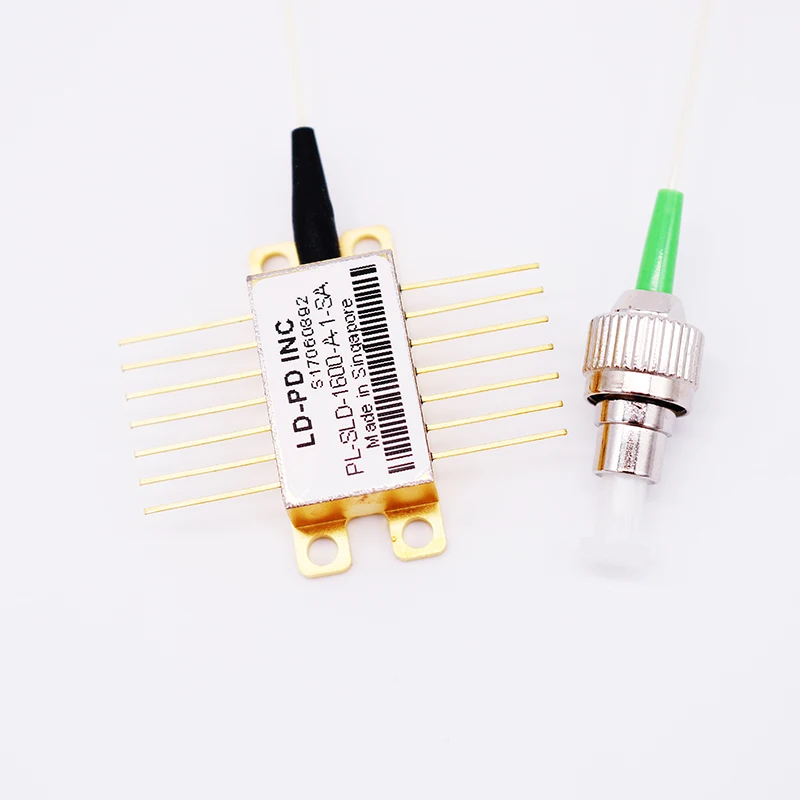

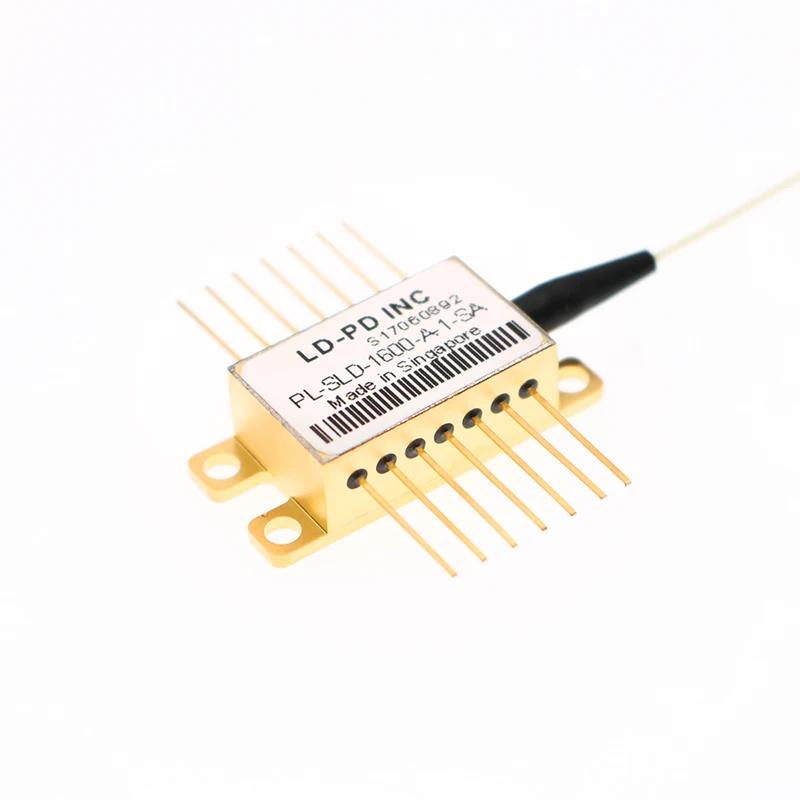

Features

Optical output: 5mW

 FC-APC connector

 Efficient coupling into single mode fiber

 14-pin butterfly package

 High optical output power

 Wide spectral half width

 Built-in monitor photo diode

Laser Specifications

Electrical/Optical Characteristics (Tsub=25°C, CW bias unless stated otherwise)



Parameter Symbol Min Typ Max Unit
Centre Wavelength λ 1590 1600 1610 nm
Spectral Width Δλ 40 50   nm
Threshold Current Ith   30 40 mA
Operating Current Iop   400 500 mA
Fiber output Power Pf   10   mW
PD Dark Current (VRD=5V) Id     0.1 uA
Extinction Ratio PER 17 20   dB
Coupled Fiber Type SMF-28E/PM1550
Forward Voltage Vf   1.8 2.5 V
Thermistor Resistance RT 9.5 10 10.5
Thermistor Temp. Coefficient     -4.4   %/°C
Connector FC/APC

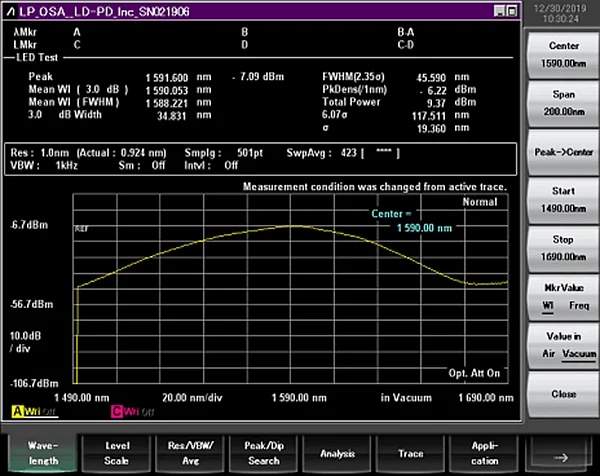

Spectrum

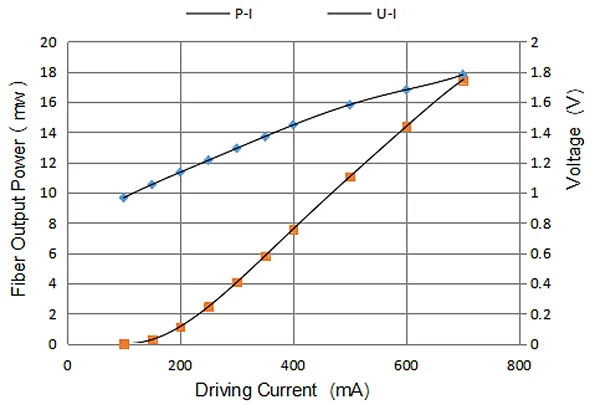

L-I Curve

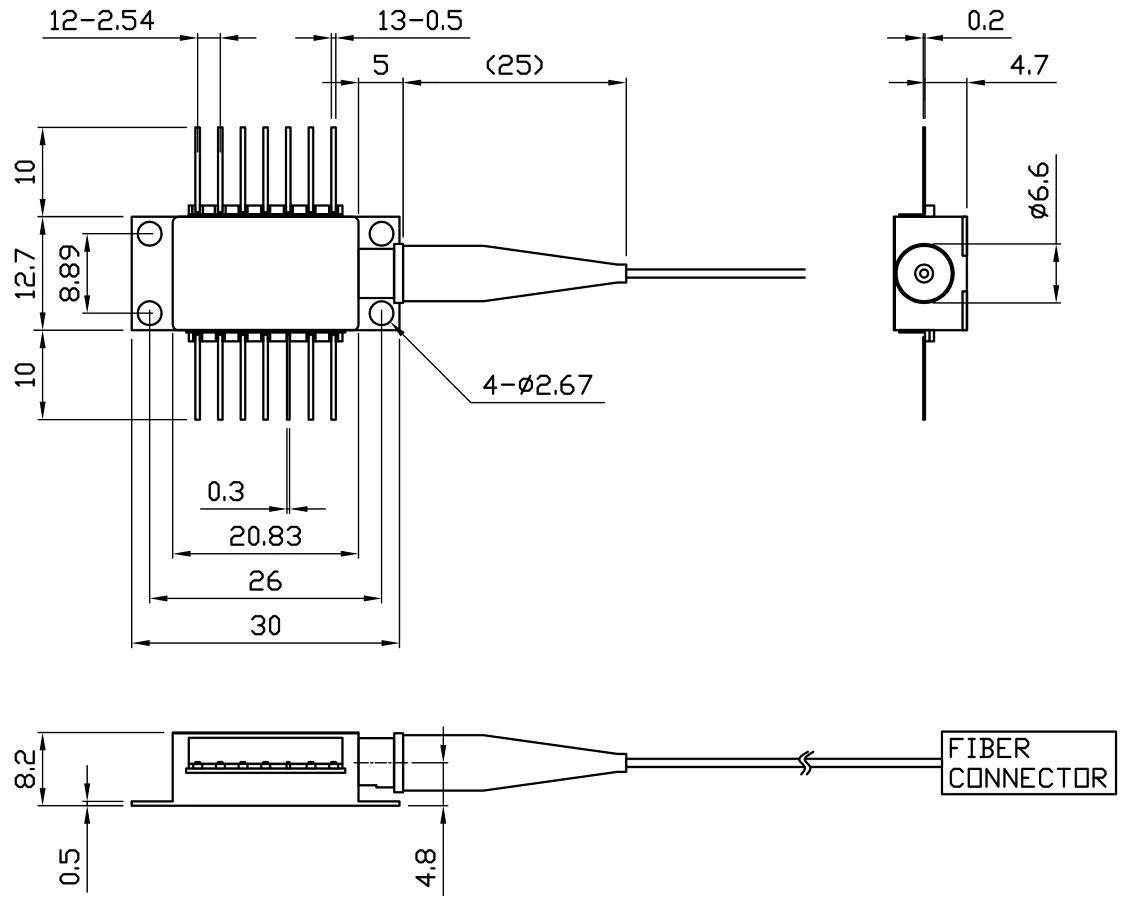

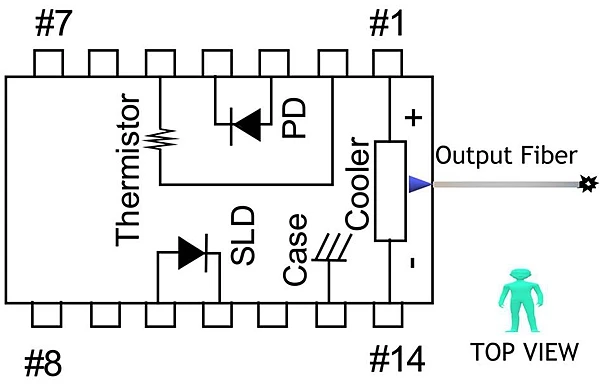

1 Thermoelectric Cooler (+) 8 N/C
2 Thermistor 9 N/C
3 PD Monitor Anode (-) 10 SLD Anode (+)
4 PD Monitor Cathode (+) 11 SLD Cathode (–)
5 Thermistor  12 N/C
6 N/C 13 Case Ground
7 N/C 14 Thermoelectric Cooler (–)



Absolute  Maximum Ratings

Item Unit Min Typ Max
Case Temperature -20 25 70
Chip Temperature 10 25 40
Operating Current mA 0 350 500
Forward Voltage V 0.8 1.2 1.8
TEC Current A - 1.2 2
Reverse Voltage(SLD) V - - 2
Reverse Voltage(PD) V - - 10
PD Forward Current mA - - 10



Application

 Fiber transmission systems,

 Fiber optic gyros,

 Fiber optic sensors,

 Optical coherence tomography,

 Testing Light source

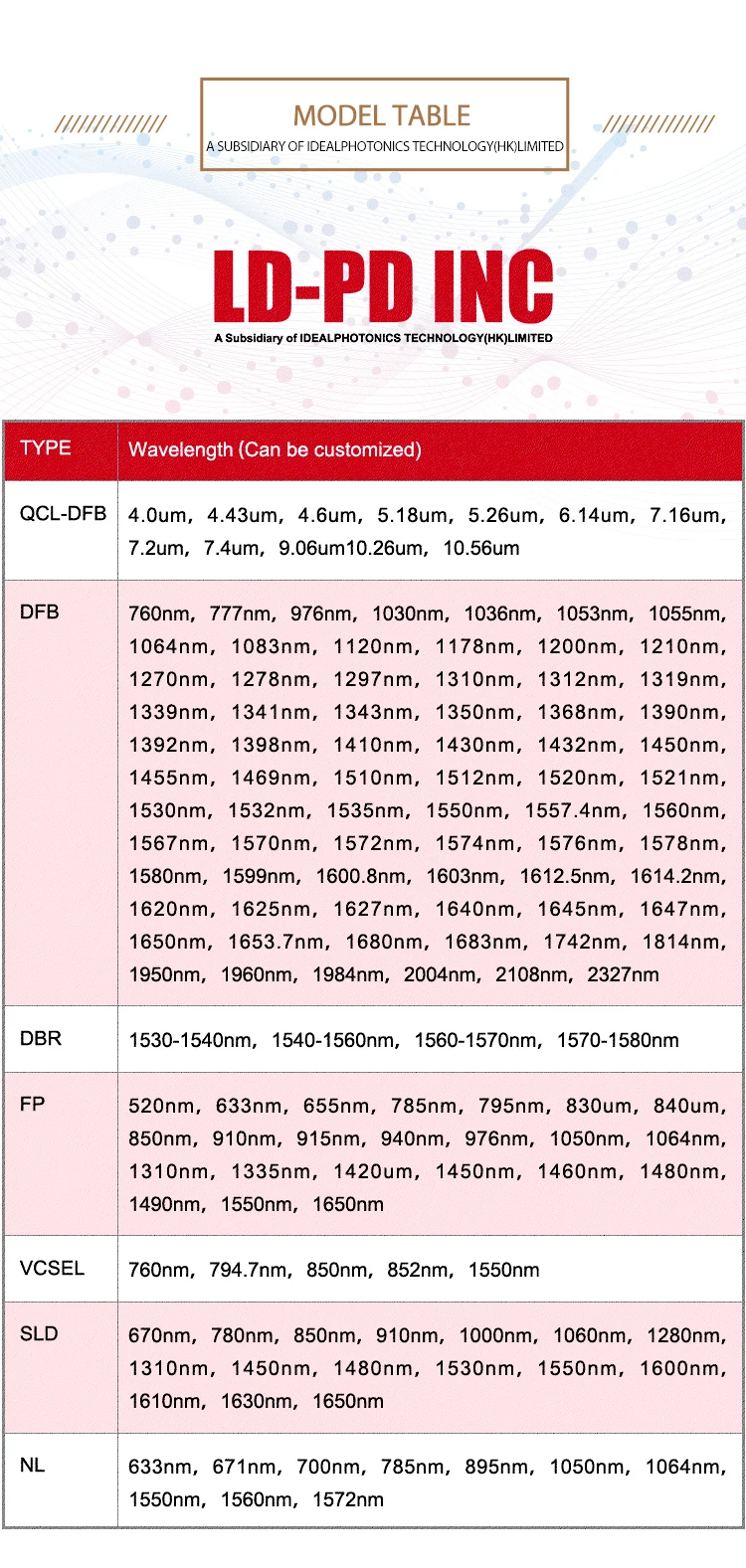

OEM Info

PL-SLD-1600-1-A81-PA

:Wavelength

680: 680nm

850: 850nm

*****

1310: 1310nm

1480: 1480nm

1550: 1550nm

1600: 1600nm

 : Output Power

A: 5mW

B: 10mW

: Spectral Width

1: 60-70nm

2: 30-40nm

XX: Fiber and Connector Type

SA=SMF-28E+ FC/APC

SP=SMF-28E+ FC/PC

PP=PM Fiber+ FC/PC

PA=PM Fiber+ FC/APC
