Product Details

Pixels control range:

Single color: 512*32

Dual color: 256*32

Workable HUB port type:

2 groups of HUB12
1 groups of HUB08

Function features:

via U-Disk & wifi to update program.

text, animation, time, clock etc.

Software "HD2016" and App"LedArt".

1	Support all languages(Software :HD2016)
2	Support 7 color effects and 64 colors Gray level (HD-W62/63/64)
3	Support Add Animation,Background ,Smart setting ,Area overlapping.Showing Text,Photo,Time, Clock etc
4	Support Add Count down/up,Count by Button;Digital Count
5	Support Add Text Rotation of 90°、180°、 270° for Vertical display, Text function of Hollow,Stroke etc
6	Support Add payment collection function
7	Updated program by U-disk & WIFI
8	Support 1000pcs Programs and 8 Districts
9	Support More than 200 types showing effects
10	Support Second develop SDK
11	Support More high brightness,more moving speed ,more refresh
12	Support Remote function,temperature,humidity,brightness etc.Remoter can select1-999 Programs
13	Model U62/U63/U64 support Pharmacy cross signs and RGB module

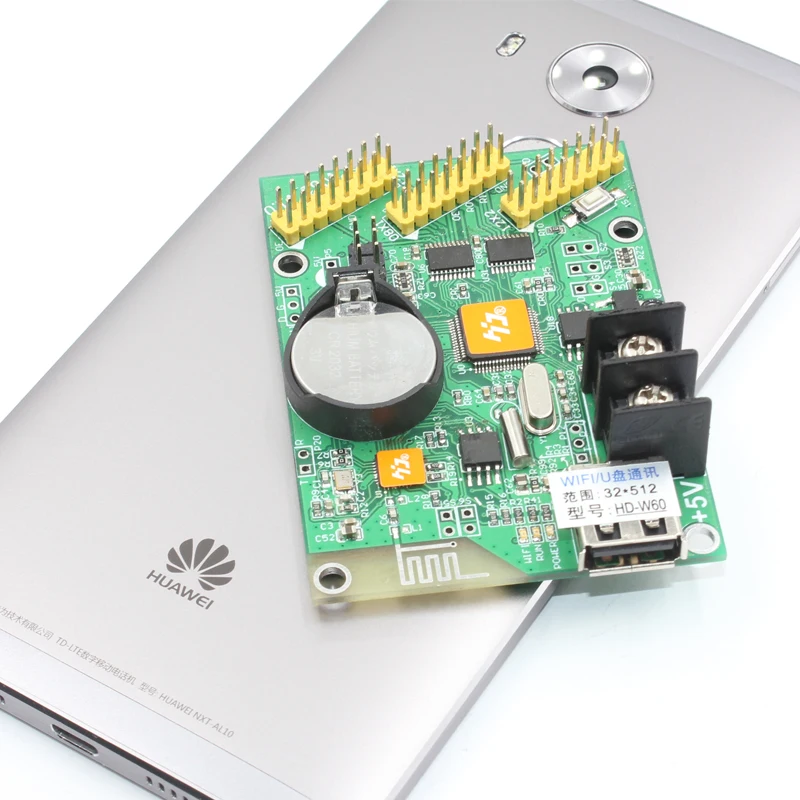

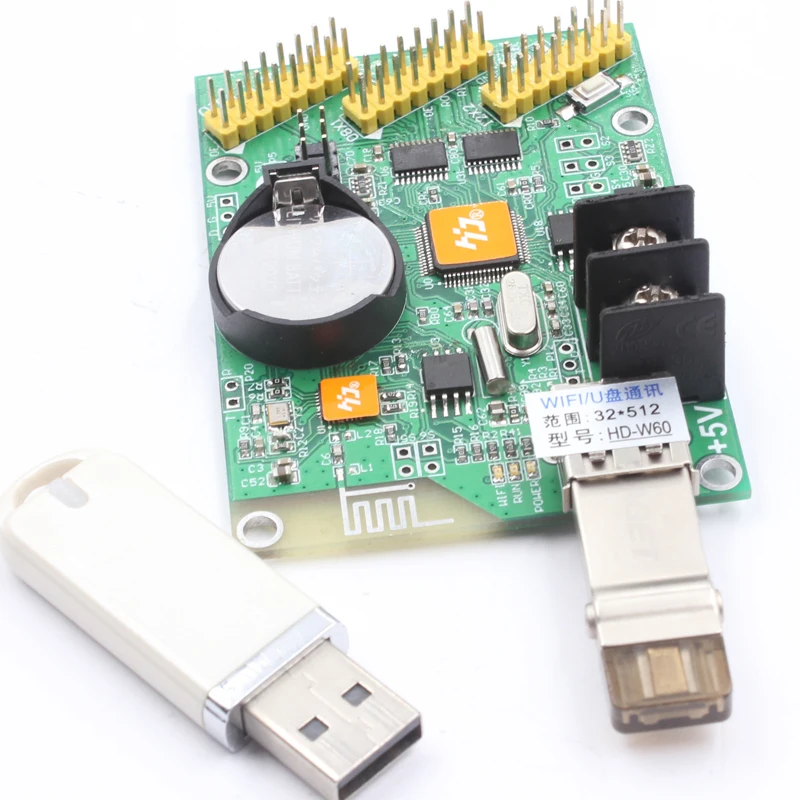

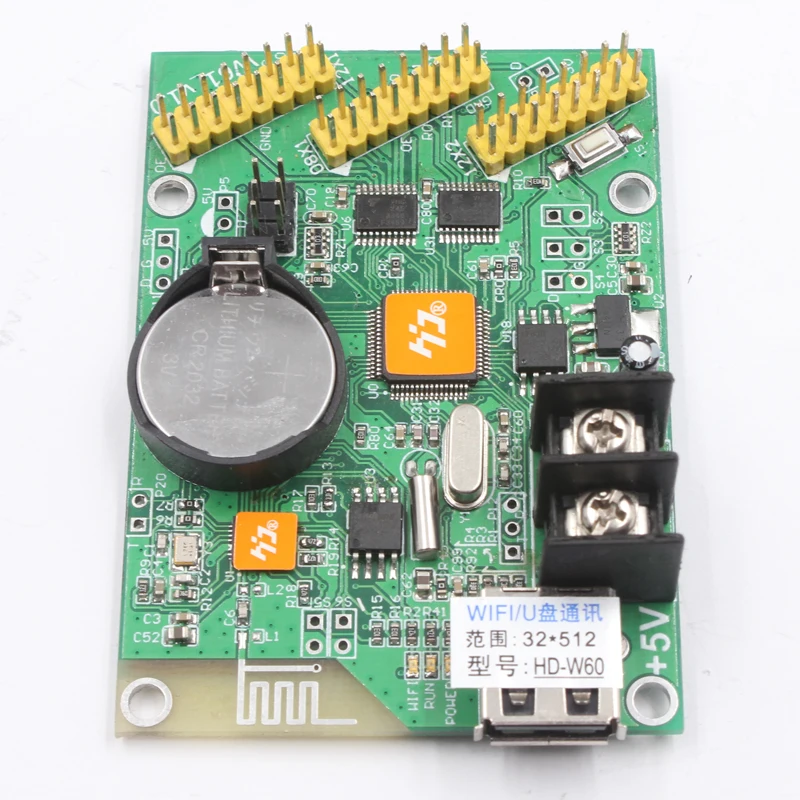

1. Features of W60 wifi LED display control card:

Types	Single Color/ Dual Color /Tricolor
Scan modes	Static, 1/2、,1/4、、1/8、1/16 common modes etc
Communication type	U-Disk & wifi
Power supply	+4.2－5.5V
Power consumption	≤0.5W
Work environment	-40℃--75℃
Languages	Support All languages
PC Software	Software HD2016
Control range	Single color: 51232 Dual color： 25632

2. Details Parameter of W60 wifi LED display control card:

Model number	HD-W60
Flash Capacity	2M Byte(Can be expand 8M)
Communication Port	U-Disk and wifi to edit and updated programs
Signal HUB Port	2 groups of HUB12 , 1 groups of HUB08
Program Quantity	switch them by button or remote if weld sensor (Remoter can select1-999 Programs)
Area Quantity	8 areas with separate zone, and separated special effects and border
Display Showing	Text, Hypertext (GIF、 Picture、 Animation Character、SWF、Video),Excel, Time, Count, Digital, Temperature, Humidity, Brightness ,Background etc
Program Modes	Playing by Sequence or by Remoter or by Button
Display effects	Add Border functions of Program border, area border and Custom design border.
Time / Clock /Count Function	1. Support Digital Clock/ Dial Clock / Lunar Time/ 2. Countdown /Count up, Button Countdown / Count up 3. The font、size、color and position can be set freely 4. Support multiple time zones
Digit Function	1.Used in Parking place、Scoring device、Calculate by piece. 2.From Minimum to Maximum, from Maximum to Minimum
Expand function	Remote function, temperature, humidity, brightness etc. (If weld sensor) .Remoter can select1-999 Programs
Brightness Control	Brightness setting by Custom, Automatic(weld sensor), by time period regulation
Automatic close /open display	Support Switch o/off display by time automatically

3. Software "HD2016" operation Interface:

4. Connection guide for LED Pharmacy cross signs Function:

(HD-W62/W63/W64 / E62 / E63/ E64 / E65 support Pharmacy cross signs)

5. Connection guide for LED double side signs to display same content:

6. Expand function and accessories instruction of LED display controller:

7. Our W60 wifi LED controller Application case in many LED display projects:

8. About us and Contact us.

Shenzhen Huidu Technology Co., Ltd. was founded in 2009, integrating R&D and sale. With our abundant experience and industrious and hardworking staff members, we can meet various requirements from different types of customers. Our production capacity amounts to 30,000pcs per year.
We are mainly engaged in LED display control systems & controllers, and our products sell well in Southeast Asia, the Middle East, South America and so on. We conduct strict quality inspections over each product.
We will try our best to serve you and hope to become one of your friends and business partners.

Please contact me HD

We have many kinds of LED display control card, controller for different LED display and requirements.

Please contact me to get properly LED display control solution.

Engineer&Sales	Kevin Wang
Skype&Email	wsh(at)huidu.cn
Whatsapp ID	+8613510540791
Wechat&Phone	+8613510540791
QQ	2851017773
Website:	www.huidu.cn/en

HD-W60 wifi card

* Inquiry Title
* Content
* E-mail
* Security Question	[Another problem]

HD2016 led display p10 mobile App control huidu card W60

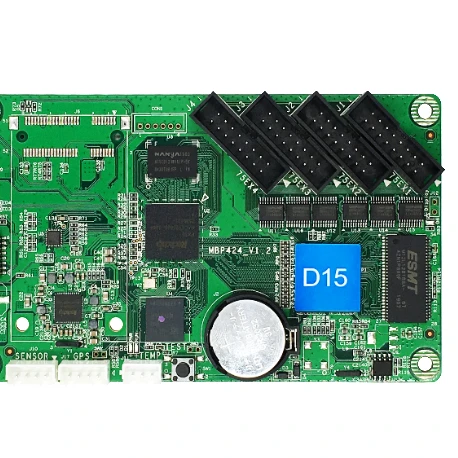

high quality 16x32 P10 Outdo

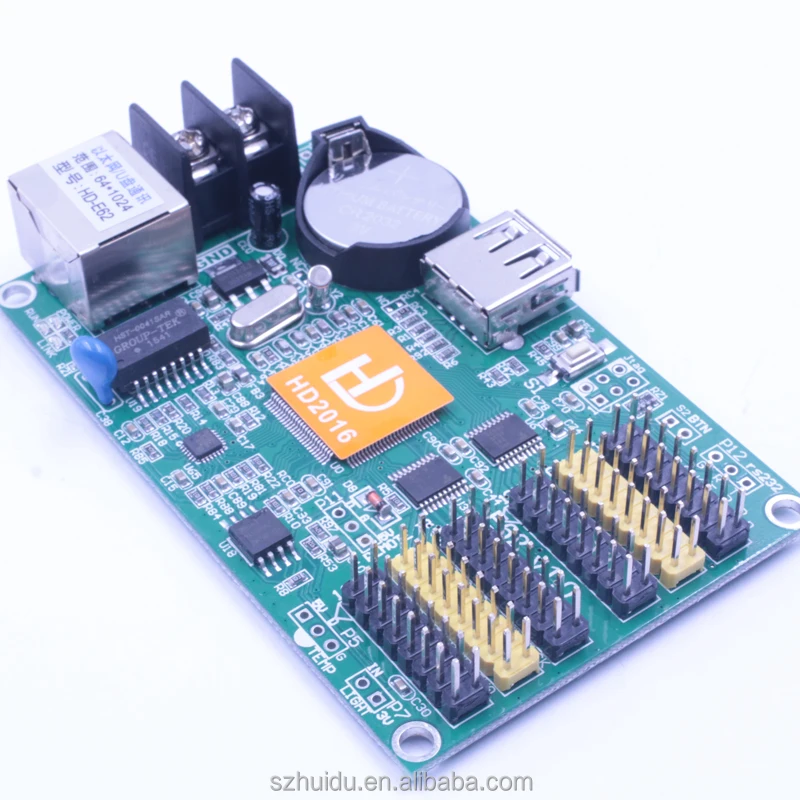

Huidu USB+Ethernet Port LED

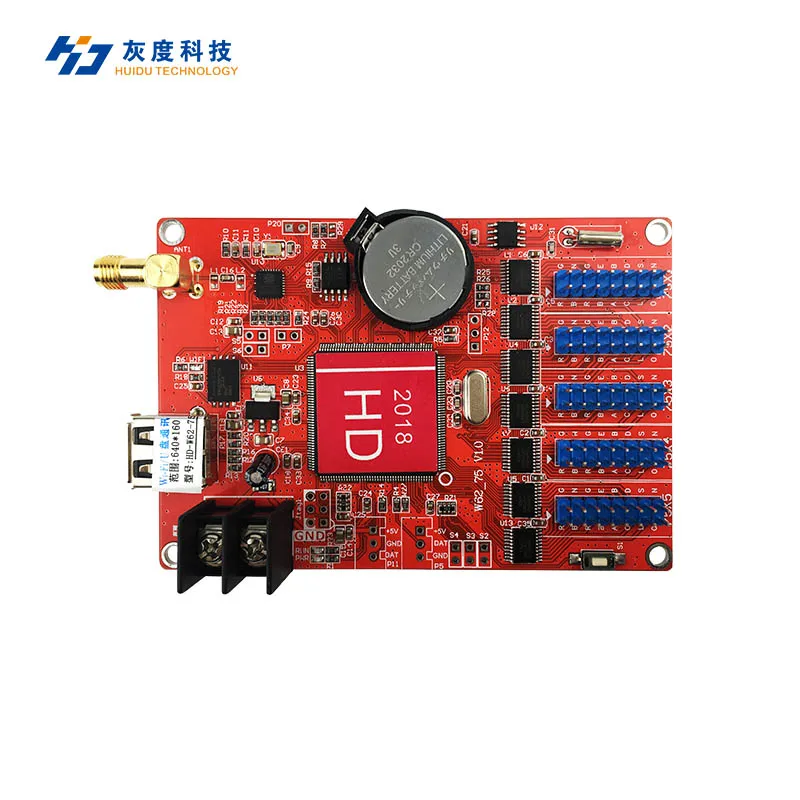

HD- RGB full color wifi cont
