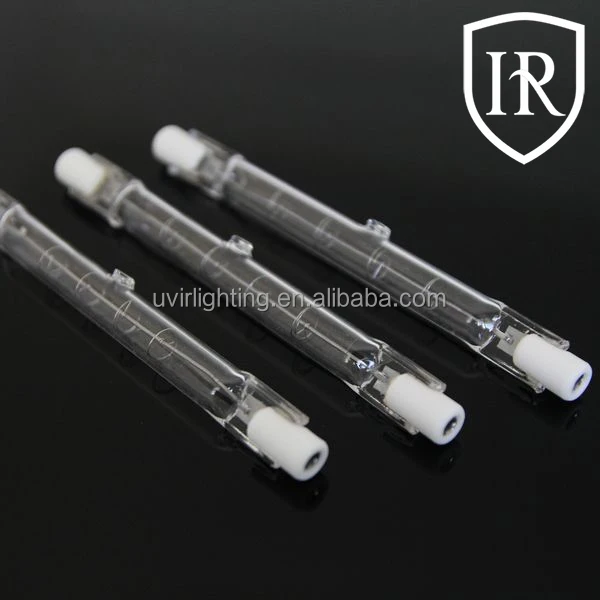

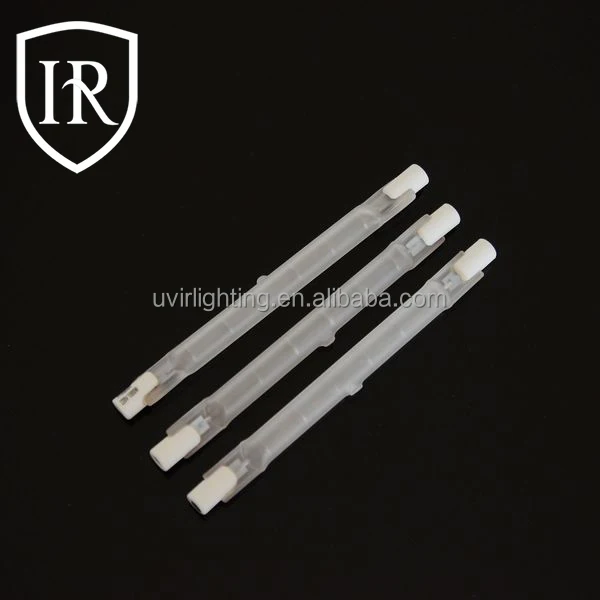

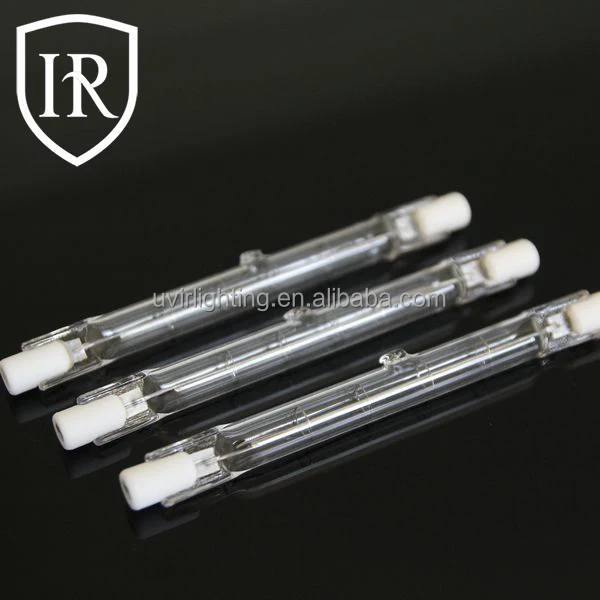

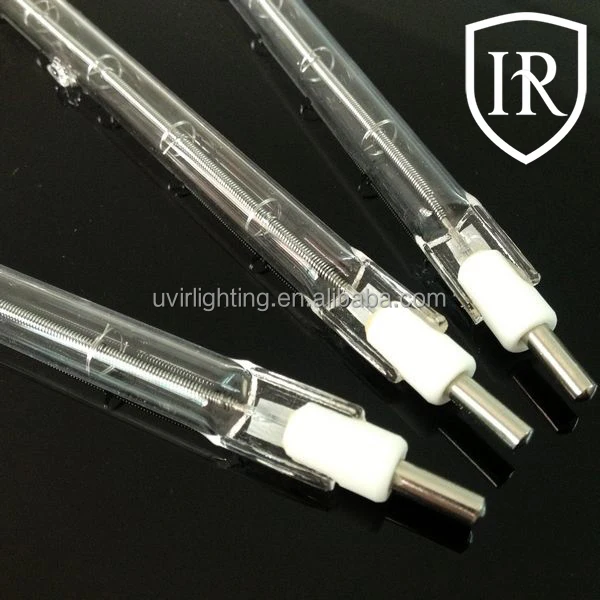

r7s replacing linear tungsten halogen lamp for lighting heating use

Our best selling products are:

1.IR lamps:Twin tube ,single tube,3D lamp(tailor made short , medium,and long wave

2.Accessories for IR lamps :Quartz tube ,Clamp ,Metal reflector

and we can provide more specific lamps according to your requirement.

Product Description

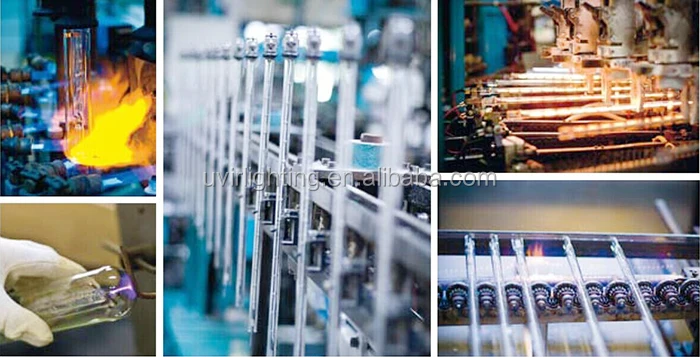

Production Process Workshop

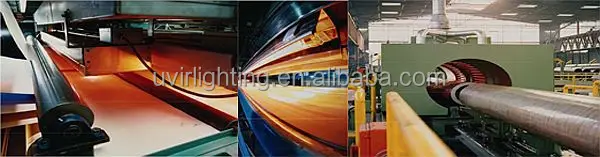

Applications

In Plastics Processing

Heating PVC flooring prior to embossing

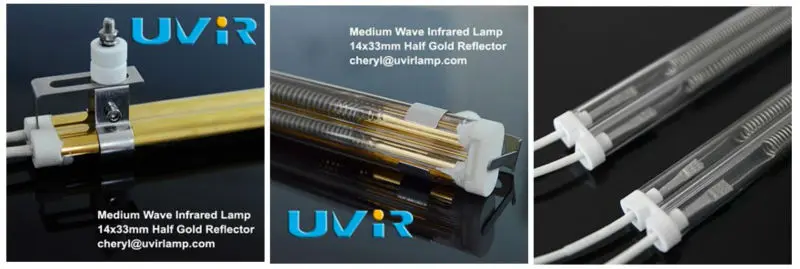

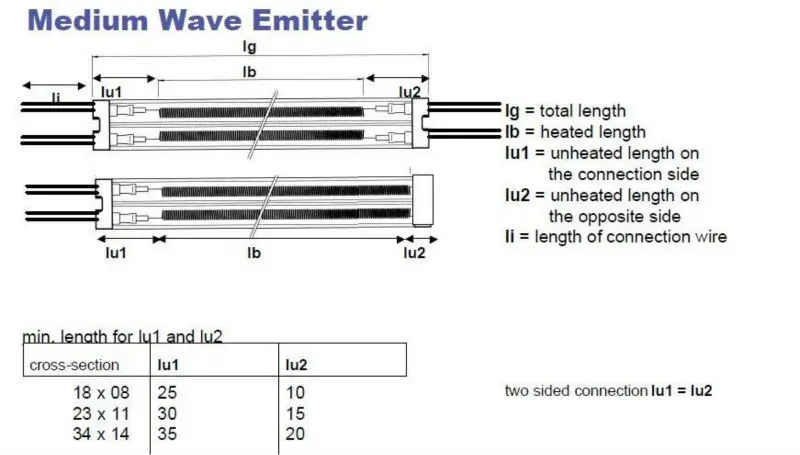

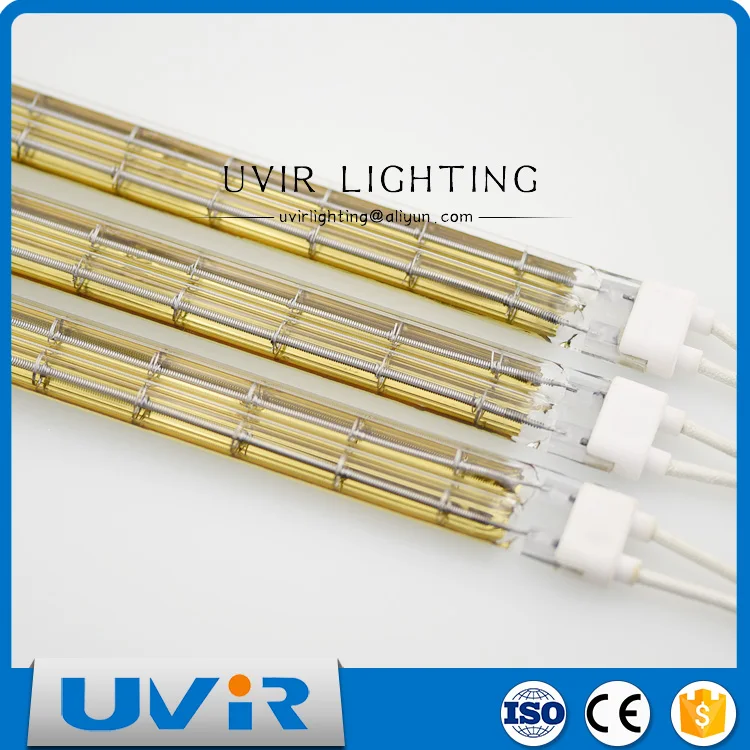

Medium Wave Twin Tube IR Emitter

Long life	Medium wave lamp 20000h on average
Power Density	18 20 25 W/cm
Hight efficiency	more than 85% heat efficiency of full power
Filament Temp.	800-950 Degree Celsius
Max. Power	60 kw / m2
Response Time	1-4min
Clean and adorless	no risk of contamination over environment or target object to be heated
Extensive assortment	many types of voltage,wattage,length,base,cables,niversal burning position is available
Flexible	special lamp designing service on demand is available

IR Emitter

Model No.	Voltage(v)	Watt(w)	Cross section(mm)	Total length(mm)	Arc length(mm)	Reflector	Construction
1	230	500	8*18	400	300	Gold	B
2	230	1000	15*33	600	500	Gold	B
3	230	2000	15*33	900	800	Gold	B
4	230	2500	15*33	1100	1000	Gold	B
5	230	3250	15*33	1420	1300	Gold	B
6	230	3750	15*33	1600	1500	Gold	B
7	230	2500	15*33	1300	1200	Gold	C
9	400	4100	15*33	1800	1700	Gold	B
10	400	4500	15*33	1920	1800	Gold	B
11	400	5750	15*33	2400	2300	white	B
12	400	6250	15*33	2600	2500	white	B
13	400	5250	15*34	2200	2100	Gold	B
If the parameter is not suitable for you, please contact me, we have a professional elite team, will provide the professional knowledge and drawings for you!

Short Wave IR Emitter

Packaging & Shipping

Contact us for details !
