1. Itsy-bitsy mini RGB pixel LEDs! Make your own smart LED arrangement with the same integrated LED that is used in our ws2812b led pixel strip and pixels.

2. The magic of the 7.2mm flex board smd3535 mini ws2812b led digital strip 144led/m is still addressable, programmable, digital strips like ws2812b, apa102 pixel led strip! They are not the 3528 single color LED strips on led market.

We also have ws2812b mini 3535 strips of 30 led/m and 60 led/m on white / black flex board.

3. These mini (3.5mm  x 3.5mm ) RGB LEDs on the pixel digital strips are fairly easy to solder and are half the sieze of the standrad  5mm  x 5mm RGB pixel LEDs you may be used to seeing. Lit up the 3535 mini led strips are insanely bright and can be controlled with 8-bit PWM per channel ( 8 x 3 channels = 24-bit color overall).

4.This 7.2mm flex board smd3535 mini ws2812b led digital strip 144led/m can be individually addressed using a one-wire interface, allowing you full control over the color of each mini RGB LEDs. The strip runs on 5V and can be chained with additional ws2812b strips to form longer runs or cut apart between each LED for shorter sections.

5. In contrast to the standrad 5050 ws2812b led pixel strips, the mini 3535 RGB leds have 800KHZ high speed timing like our SK6812 RGBW led digital strips. But on WS2812b leds, the PWM RATE is 400HZ.

1. This 7.2mm flex board smd3535 mini ws2812b led digital strip 144led/m is 1 meter/ roll.

2. The board is narrow only 5mm for 30 leds, 60 leds. 144 leds mini strips only 7.2mm.

3. The LEDs are controlled by shift-registers built into each LED lamp. In order to drive the strip you need 5v, GND and DATA-easy! Once the registers are loaded, you can stop sending data.

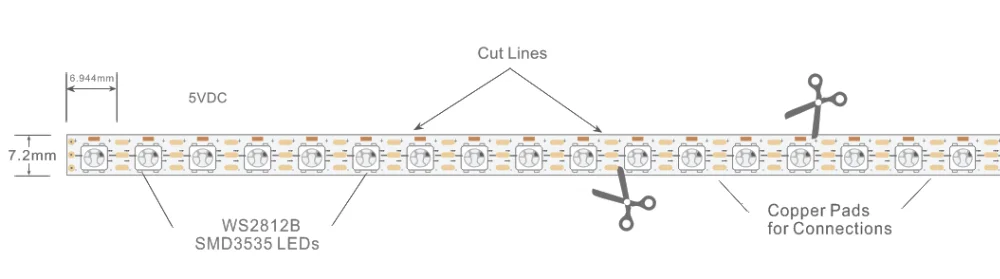

4. Strips could be cut into sections and still work, or, if you need something longer, they can be daisy chanined with other strips to build huge displays capable of basic video frame rates.

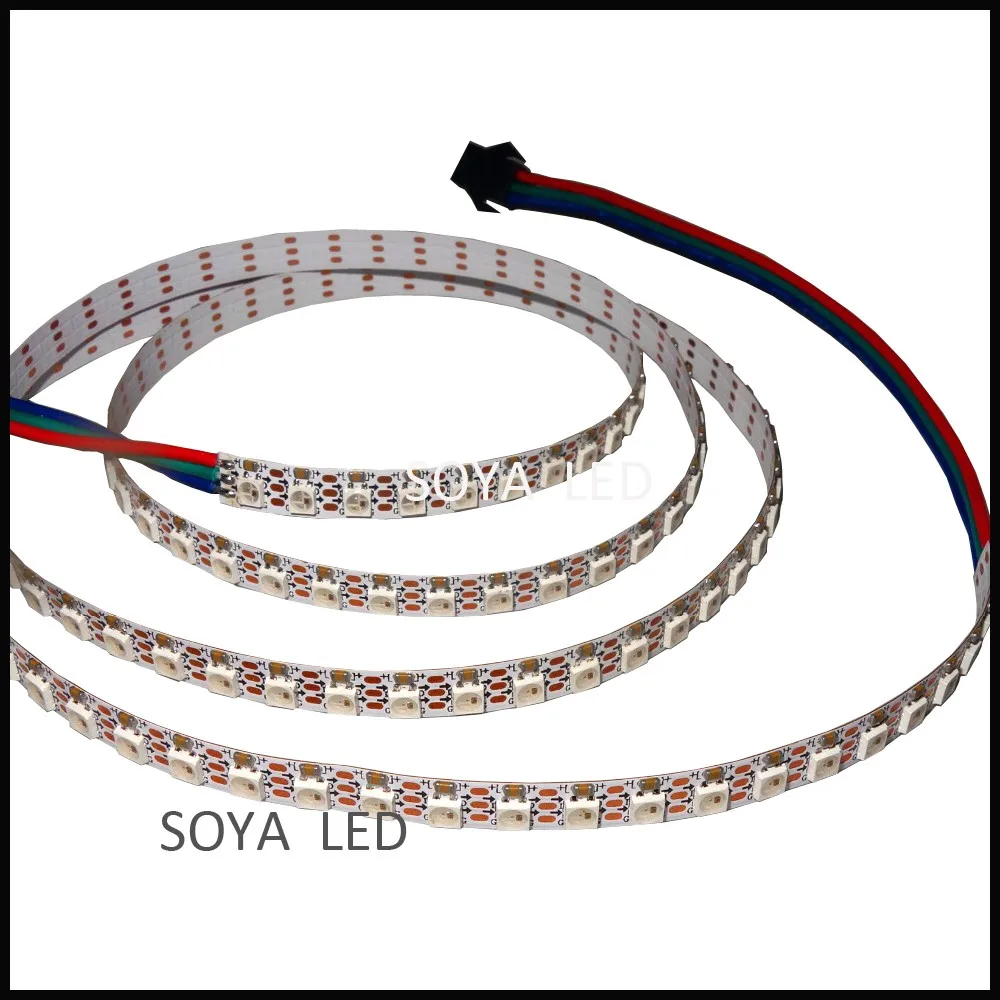

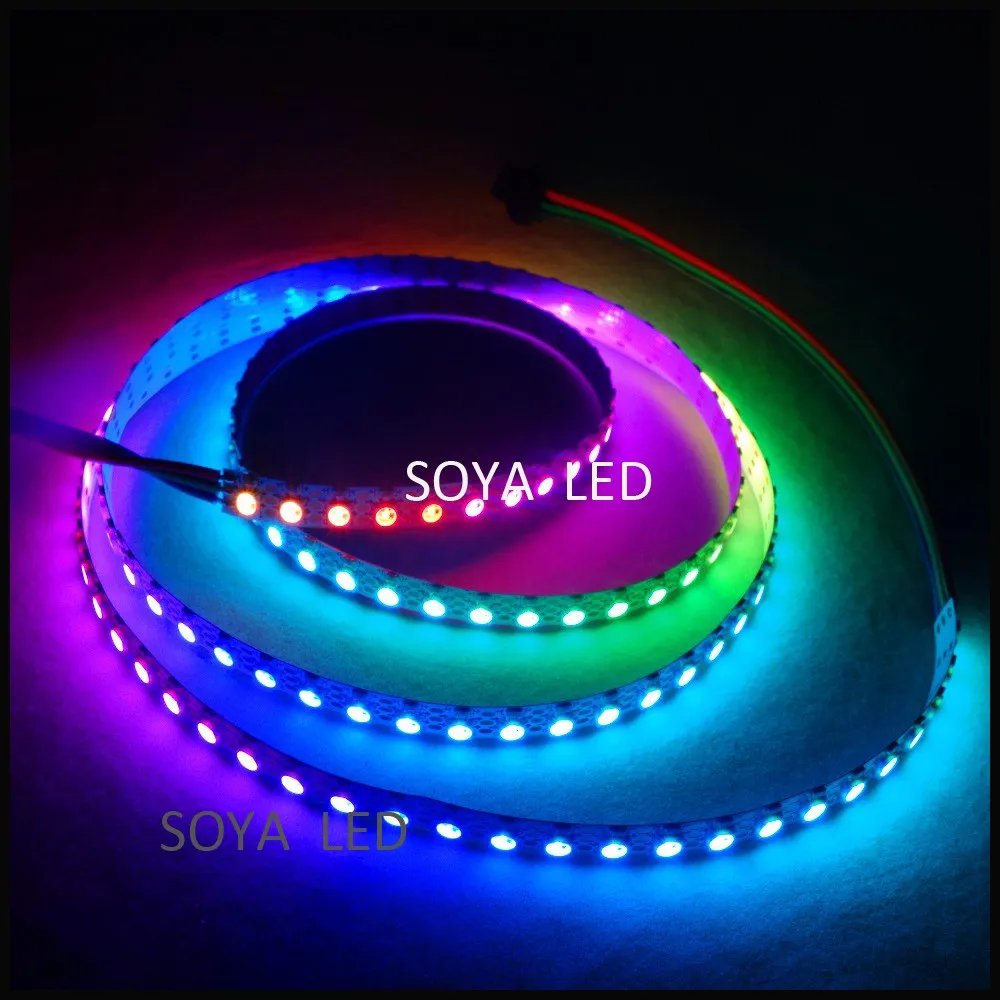

  7.2mm flex board smd3535 mini ws2812b led digital strip 144led/m detailed images
