full color 2813 strip addressable WS2813 LED strip
We've all seen the addressable RGB led strips only have one DATA line in PCB that if leds broken, other leds in strip couldn't work perfectly, maintenance is not easy especially for projects.
In 2016, SOYA LED designed and produced the WS2813 Dual-signal wires Intelligent control integrated strip that have two DATA lines if one led broken, anoter data still can work won't affect others leds working !
1. full color 2813 strip addressable WS2813 LED strip have 30/60/144 digitally-addressable pixel ws2813 5050 leds per meter and are very affordable. Strips are available with black and white flex PCB
2. WS2813 Dual-signal wires Intelligent control integrated led pixel strip function is signal break-point continuous transmission.
Why 2 data signal?, it is for led strip one led is broken , another data still can work ,unless 2 next led Two successive LED is broken then the led strip can not working . This ws2813 can make the led strip one is broken will not affect another led working.
3. Refresh Frequency updates to 2KHz /s and data transmitting at speeds of up to 800kpbs that is much faster than ws2812b,sk6812 and sk6822 led strips.
4. You can think WS2813 LED is ws2812b updated version. From the picture we can see WS2813 LED strip only have led chip on the surface of led strip, this is because WS2813 led chip not only have the ic ,but also capacitors package in 5050.
5. The way the pixels are controlled by Arduino, Glediator, DMX( Artnet), Raspberry pi, T1000s/T300K/T500K and etc.
full color 2813 strip addressable WS2813 LED strip features
| Item No. | full color 2813 strip addressable WS2813 LED strip |
| LED quantity | 30/60/144 LEDs/m |
| LED type | WS2813 |
| Wattage | 14.4 watts |
| Pixel pitch | every 16.66mm cuttable |
| PCB width | 10mm |
| Working volatage | DC5V |
| PCB color | Black and White |
| Light color | Multi-color, digital RGB,Every LED individual Control |
| Connector | 4pin JST-SM connector |
| Controller | Artnet/ Arduino/ AVR/Raspberry pi/T1000s/DMX512/DMX decoder |
1. Guardrail tube series, point light display series, flexible/rigid pixel strips series, module series applications.
2. Lighting stage costumes, innovative gadgets or any other electronic products.

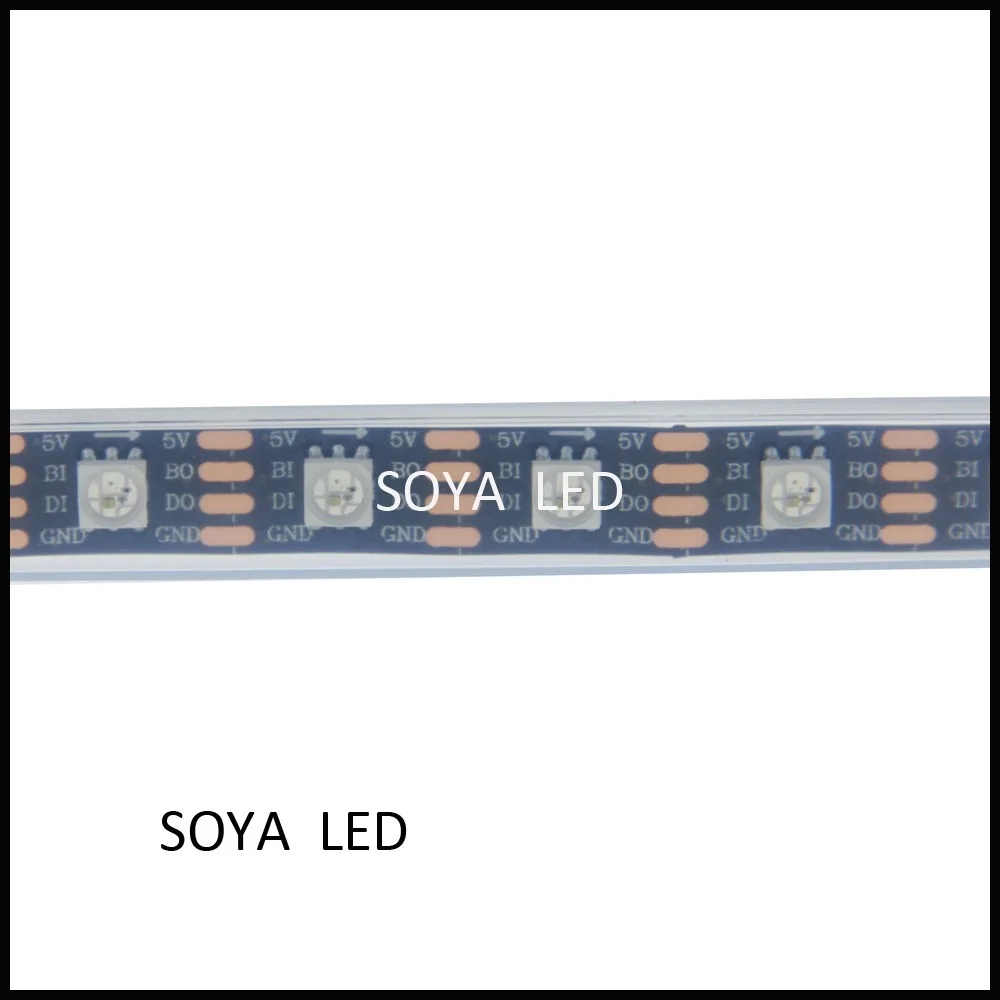

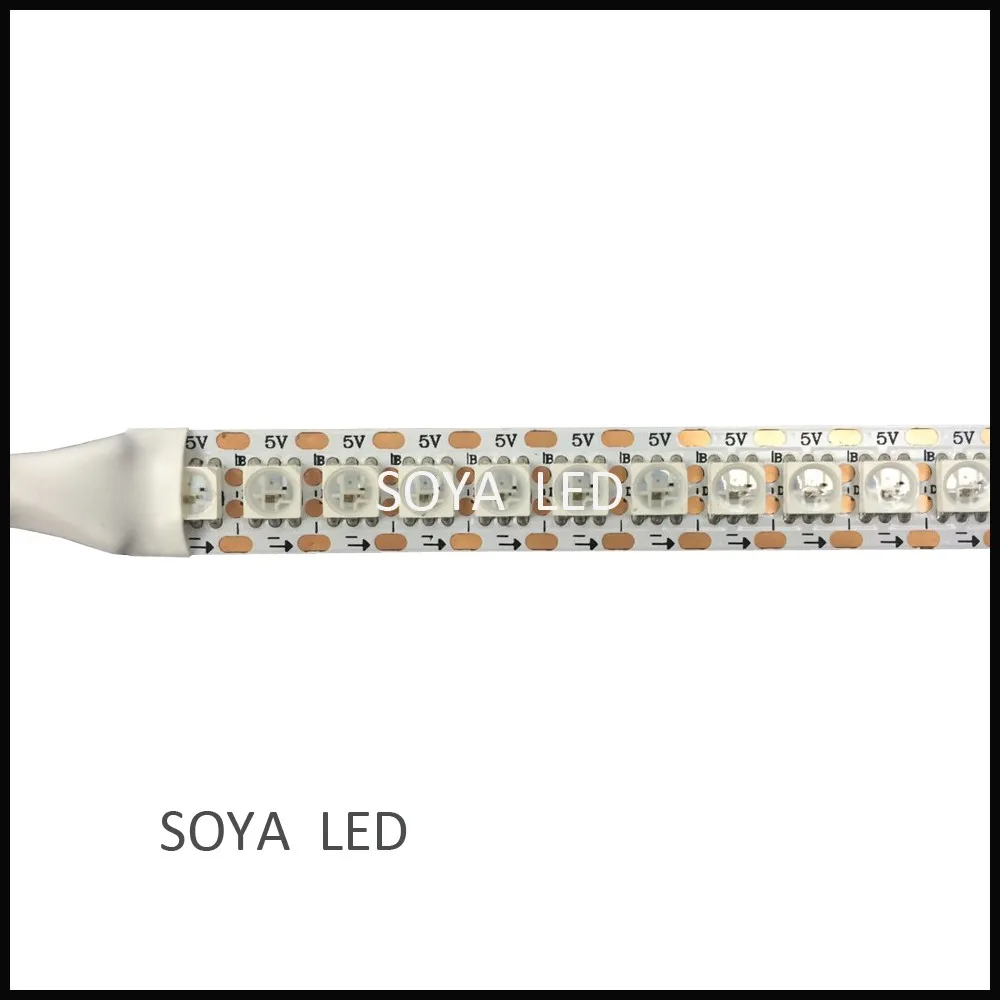

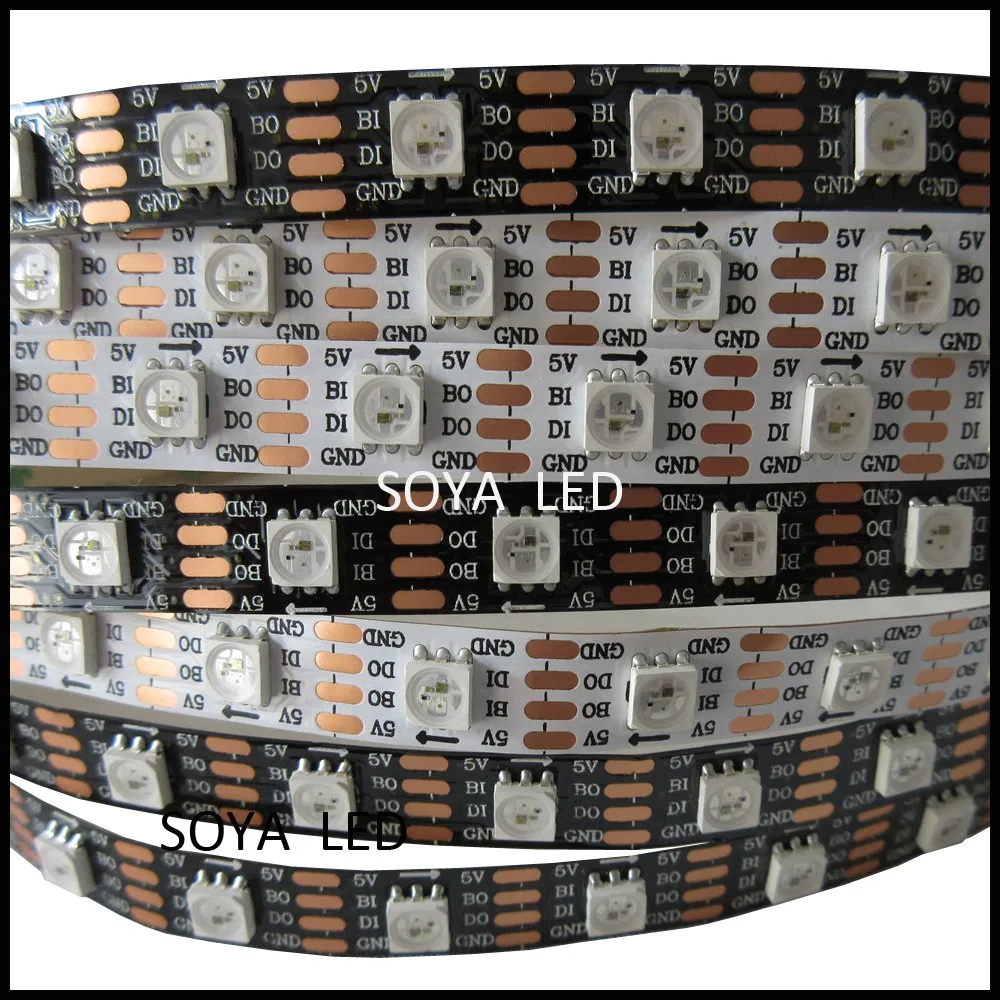

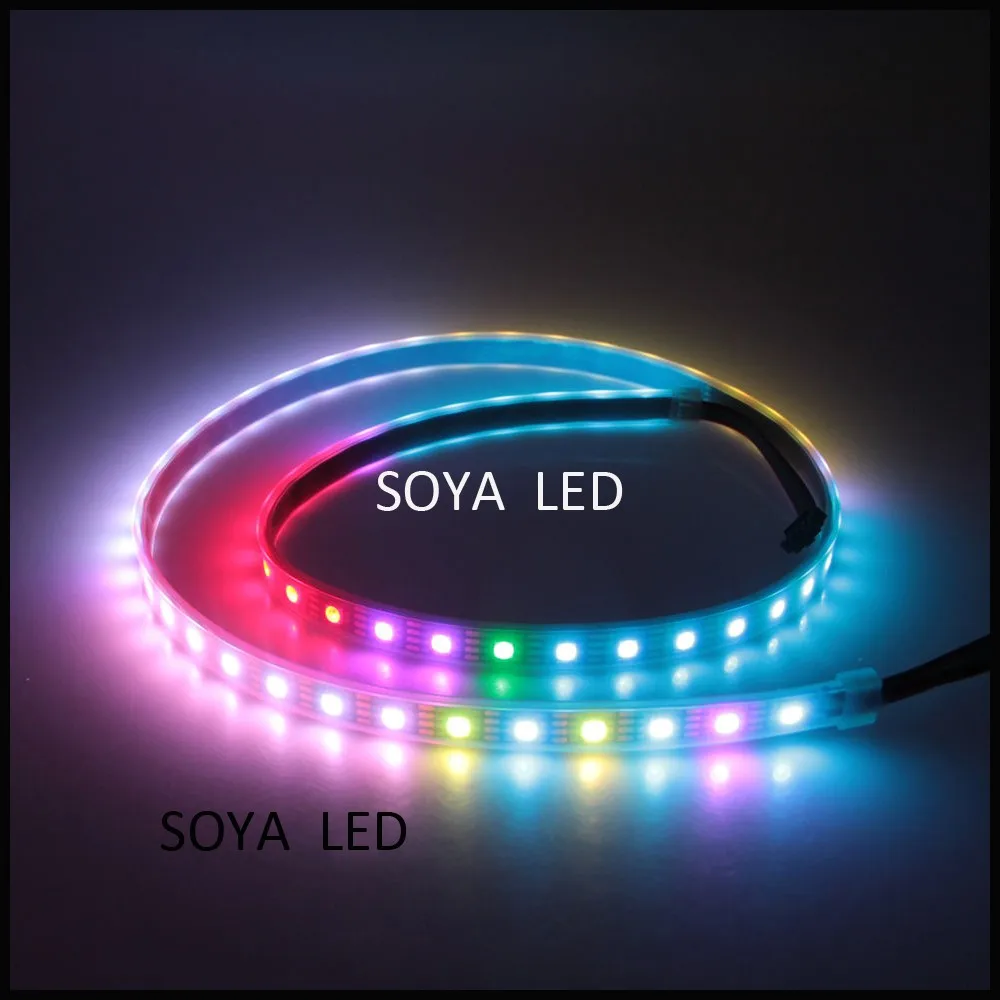

full color 2813 strip addressable WS2813 LED strip detialed images
Trade Terms
1. Payment Terms:
T/T, Western Union, Aliexpress Escrow
2. Lead Time:
Usually we had materials in stock, regular order delivery time 1--7days after the profoma invoice paid,
OEM products: 10--15days (Customized PCB board).
3.Warranty:
2 years warranty since the data of purchase our LED products.
4. Delivery Way:
DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
