weatherproof silicon tube Pixel Digital RGBW led strip 144 LED



Product Description

1. What is better than smart RGB LEDs? Smart RGB+White LEDS! These sk6812rgbw leds now have 4 LEDs in them (Red, Green, Blue and White) for excellent lighting effects. These LED strips are fun and glowy, and you can control each LED individually.



2. This is weatherproof silicon tube Pixel Digital RGBW led strip 144 LED with a clear casing and white / black flex pcb, we also have RGBW strips of 30 led/m and 60 led/m.



3. The LED is "split", one half is the RGB you know and love, the other half is a white LED with a yellow phosphor. Unlit, it resembles an eg yolk. Lit up these are insanely bright and canbe controlled with 8-bit PWM per channel(8*4 chaneld= 32-bit color overall). Great for adding lots of colorful + white dots t your project!



4. SK6812RGBW LEDS USE 800 KHz protocol so specific timing is required. On ws2812b leds, the PWM RATE IS 400 Hz,which works well but is noticable if the LED is moving. In comparison, APA102 LEDs have a 20 KHz PWM rate, so even when moving the LED around, you won't see the pixelation, the blending is very smooth. We recommend APA102 led strips if you can use them.



5.  Pleasae note, weatherproof silicon tube Pixel Digital RGBW led strip 144 LED isn't the led strip with RGB LED + White LED or every 3pcs RGBW LEDs per copper unit.You can find the comparison between these RGBW led strips that makes you clearly.

Product features

 1.  This weatherproof silicon tube Pixel Digital RGBW led strip 144 LED noramlly is 1 meter long flexible strip of 144 individually controllable RGBW Leds, the 'W' means "white" contains Warm white , Netrual White, Cool White.

 2.  The RGBW led strip uses the SK6812RGBW chip, we have this RGBW led digital strips of  30 leds, 60 leds and 144 leds/m.

 3.  The LEDs are controlled by shift-registers built into each lamp. In order to drive the strip you need 5v, GND and Data - easy! Once the registers are loaded, you can stop sending data.

 4.  Strip can be cut into sections and still work, or, if you need something longer, they can be daisy chained with other strips to build huge displays capable of basic video frame rates

5.  These strips have a maximum voltage of 5V - anything higher will blow them up!

Comparison

 Example Compare between 60 leds RGBW led strip



Product



Addressable RGBW LED strip

RGBW LED strip

RGB LED + White LED strip

Operating voltage



DC5V

DC12V / 24V

DC12V

Integrated IC driverr



SK6812RGBW

TM1814

none

LEDs quantity



60 RGBW leds

60 RGBW leds

30 RGB leds + 30 White LEDs

Control model



Addressable

Every 3 pcs / 6 pcs leds

RGB changing + static white color








Cuttable length

16.66mm

5cm / 10cm

10cm

Bare board color

White and Black

White

White

Standard length



5m/roll

5m/roll

5m/roll



Detailed Images

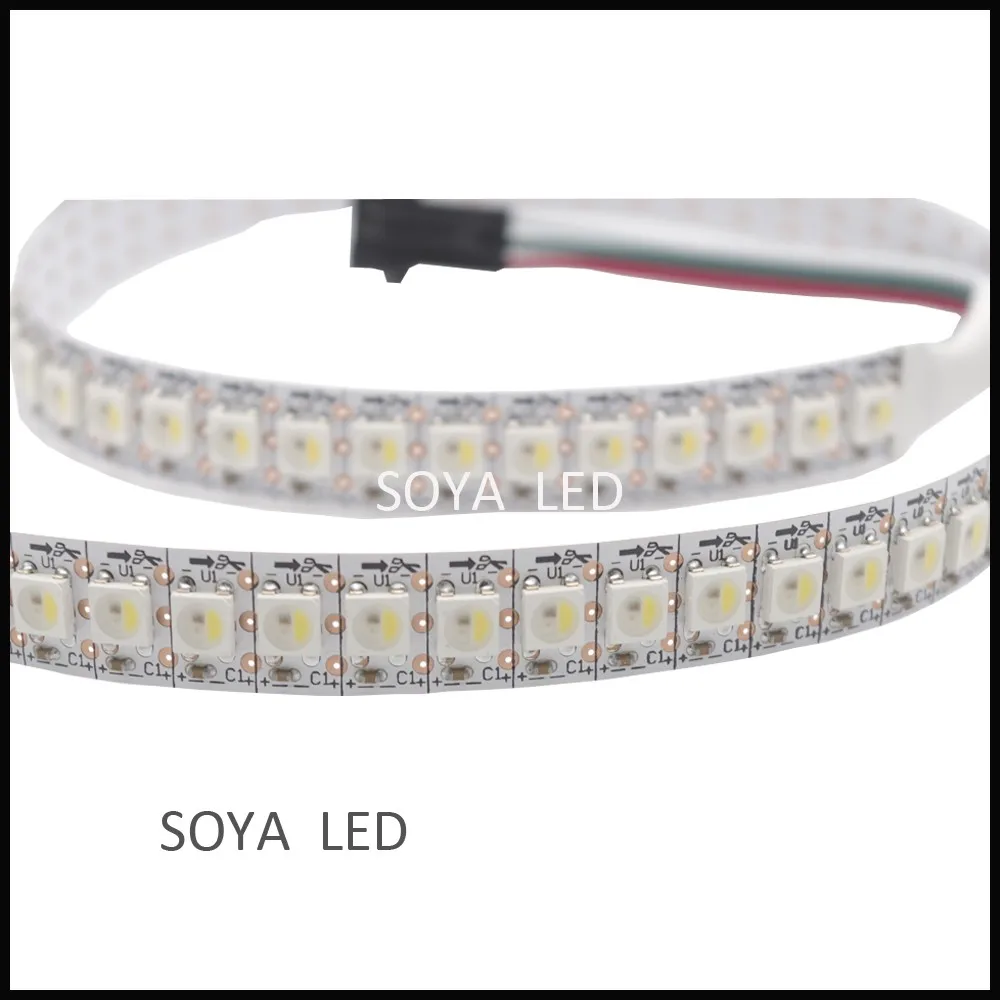

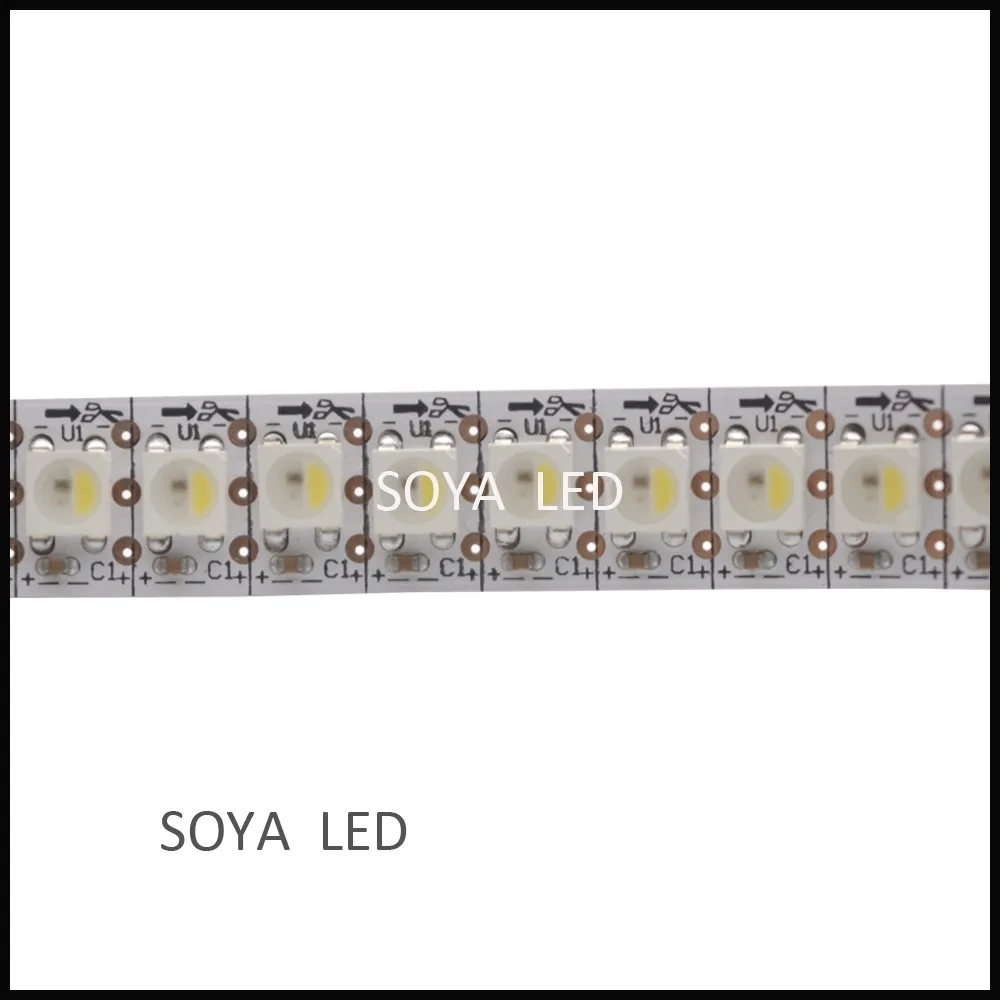

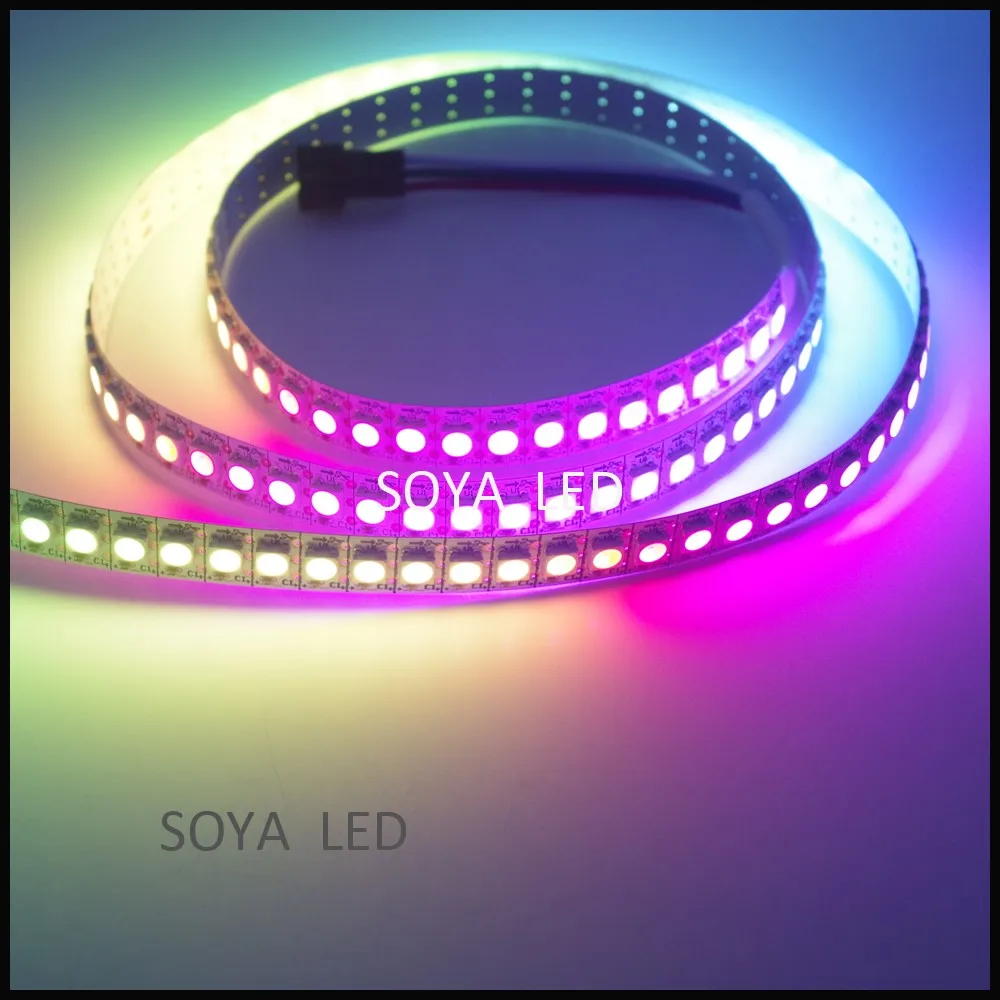

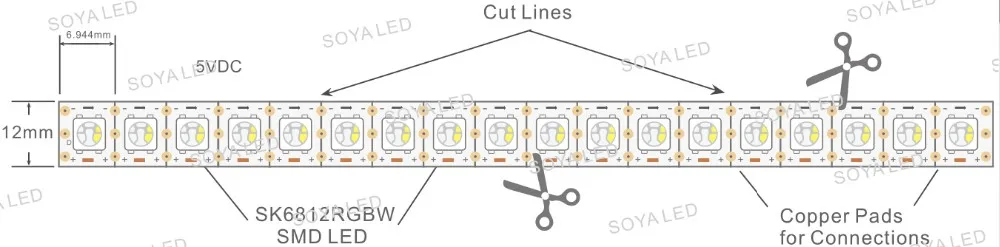

weatherproof silicon tube Pixel Digital RGBW led strip 144 LED detailed images



Trade Terms

1. Payment Terms:

T/T, Western Union, Aliexpress Escrow

2. Lead Time:

Usually we had materials in stock, regular order delivery time 1--7days after the profoma invoice paid,

OEM products:  10--15days (Customized PCB board).

3.Warranty:

2 years warranty since the data of purchase our LED products.

4. Delivery Way:

DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
