* AC integrated driver, high reliability,PF>0.98
* With OVP, OTP and OCP pProtection,
* 4KV surge protection(optional),
* LED 3030 ,CRI>80,
* CE, RoHS, FCC,SAA,RCM certification
* 3000K,4000K,5000K,6000K
* THD<15%
* High thermal conductive PCB,thermal conductivity reaches 7.9, effectively reduce the LED temperature.
* Long lifespan>30,000h,3 years warranty

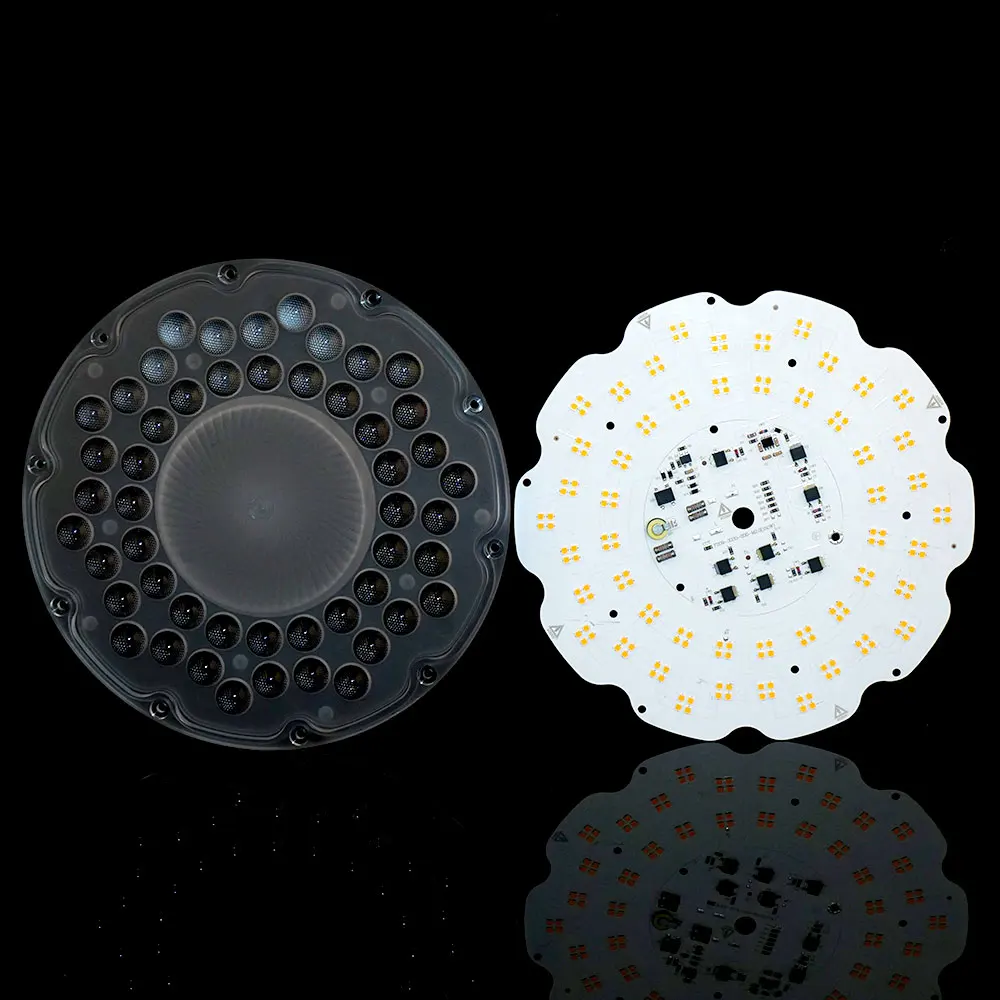

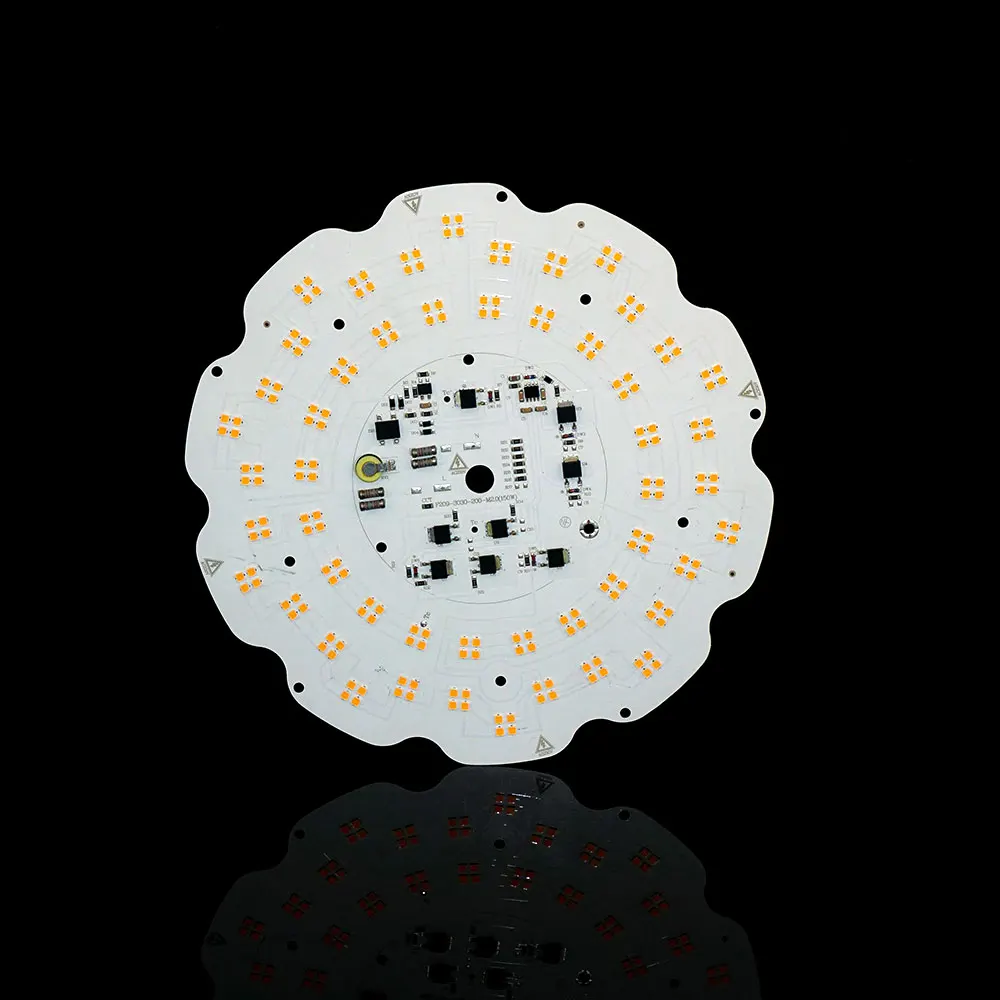

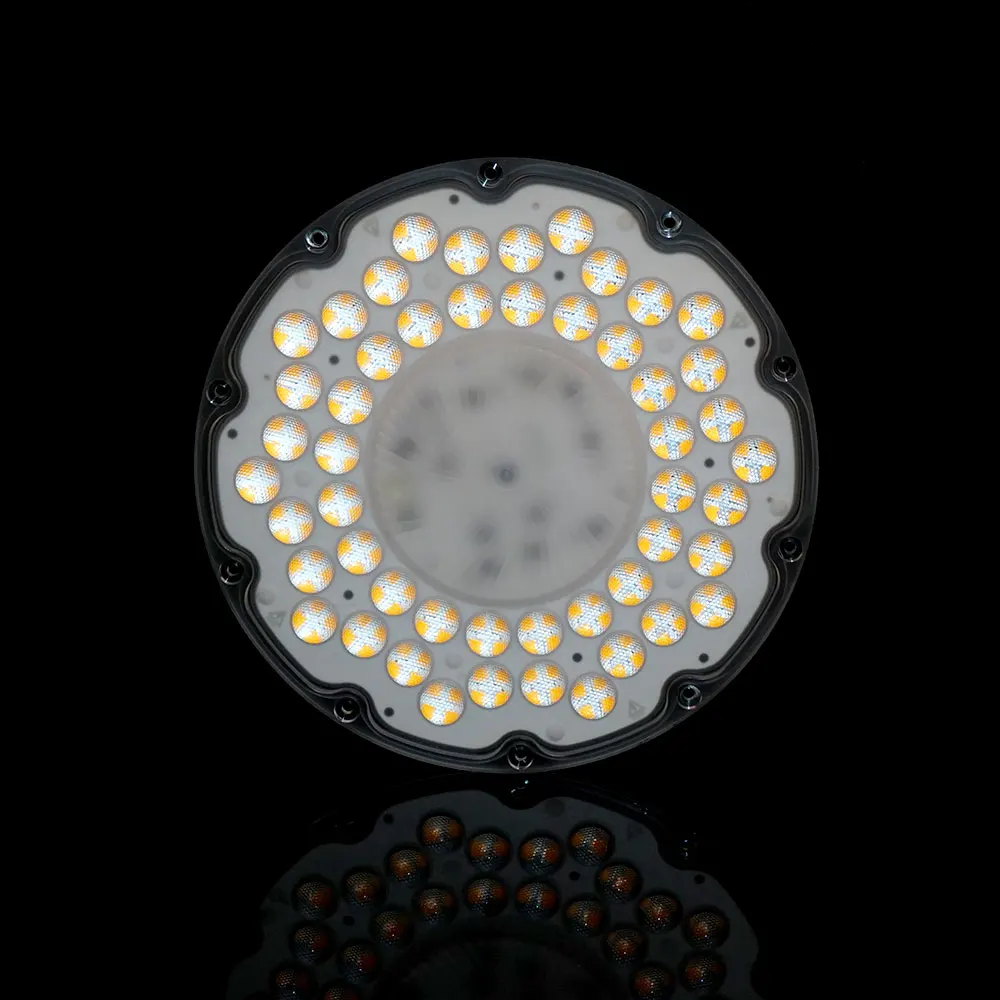

* The 150w AC led module can use in high bay light,flood light,street light,downlight and so on.
Brand： |
none |
Address： |
China |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Product Details
Specification
Quick details:
PROTOTYPES
1. This led Bulb light module has a small size can match a variety of lamp housing .2. Whole led light module use smd 2835/3030 leds ,High quality leds guarantee long life .
3. We have a competitive price for 2835/3030 leds .
4. We can according your requirements to customized PCB board and Shell kit.
50W AC Linear LED Module | ||
Led source: | SMD 3030 | |
Rated Watts: | 150W | |
Input Voltage: | AC190-270V | |
PF: | 0.98 | |
Surge protector | 4KV surge protection on board | |
Lux(lm/w): | 135lm/w±5% | |
CCT(K)： | 3000-6000K | |
Ra: | >80 | |
Beam angle: | 120° | |
Material: | PCB2.0(high-conductivity） | |
life span(H)： | >30,000 | |
Operating temperature： | -30℃ ~ 55℃ | |
Size: | D209*2.0mm | |
All the PCB can be customized in materials,
size, shape and so on.
PROTOTYPES,
WE OFFER,
No MOQ
Shipment in 2 weeks
Customized design
Rebate on high VOLUME ORDERS
Lead time:
Pcb production time =Sample:3-4days mass production:7-8 working days
Pcb assembly time= sample:1-2days mass production:3-4days
Remark :mass production exact delievry time depends on the quantity.
Can I Have Details of this Product?
Yes, Common Data are in the Following Table.
Yes, Common Data are in the Following Table.
Technical parameters and process capability of metal substarte(MCPCB) | ||||||
ITEM | SPECIFICATION | |||||
Surface | LF HASL,immersion gold,immersion siliver,OSP | |||||
Layer | Single side,double sided Multilayer and special structure | |||||
Maximum PCB size | 240mmx1490mm OR 490x1190mm | |||||
PCB thickness | 0.4-3.0mm | |||||
Copper Foil thickness | H 1/2/3/4(oz) | |||||
Insulation layer thickness | 50/75/100/125/150/175/200(um) | |||||
Metal Base thickness | AIuminum(1100/3003/5052/6061),Copper AIuminum | |||||
Metal Base thickness | 0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm) | |||||
Shaping | Die punching/CNC Route/V-Cut | |||||
Test | 100% open&short test | |||||
Shaping tolerance | Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm | |||||
Hole tolerance | +-0.5mm | |||||
Min.Hole DIameter | Single side 0.5/Double sided PTH0.3MM | |||||
Solder mask | green/white/black/red/yellow | |||||
Min.letter height | 0.8mm | |||||
Min.line space | 0.15mm | |||||
Min.letter width | 0.15mm | |||||
Sile screen color | blue/white/black/red/yellow | |||||
Sopecial hole | Spot facing/cup hole/buried via hole/buried tank | |||||
File format | Gerber,Protel,PowerPCB,AutoCAD etc | |||||
FAQ
Q: 1. CAN I HAVE A SAMPLE ?
A: YES, WE CAN SEND YOU OUR SAMPLE TO CHECK OUR QUALITY.
Q: 2. WHAT IS THE LEAD TIME?
A:SAMPLE NEEDS 1- 3 working DAYS, MASS PRODUCTION NEEDS 7-10 DAYS, ALSO ACCORDING TO THE ORDER VOLUME.
Q: 3. DO YOU HAVE ANY MOQ LIMIT?
A: OUR MOQ IS 1PCS.
Q: 4. CAN YOU OFFER BEST PRICE TO US?
A: YES, WE ARE A MANUFACTORY , SO WE CAN OFFER LOW PRICE THAN THE TRADING COMPANY.
Q: 5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE ARRIVE?
A: WE USUALLY SHIP BY DHL, UPS, FEDEX OR TNT. IT USUALLY TAKES 3-5 DAYS TO ARRIVE.
Q: 6. WHAT FILE WE SHOULD OFFER?
A: MAKING PCB SHOULD OFFER GERBER FILE (PROTEL ,POWER PCB,PADS FILE), PCBA SHOULD OFFER GERBER FILE AND BOM LIST.
Q: 7. WE WANT TO VISIT YOUR COMPANY?
A: NO PROBLEM, WE ARE A PRODUCTION AND PROCESSING ENTERPRISES, LOOK FORWARD TO YOUR ARRIVAL AND WE WILL LEAD YOU TO VISIT OUR
FACTORY AND PROCESSING FACTORY.
A: YES, WE CAN SEND YOU OUR SAMPLE TO CHECK OUR QUALITY.
Q: 2. WHAT IS THE LEAD TIME?
A:SAMPLE NEEDS 1- 3 working DAYS, MASS PRODUCTION NEEDS 7-10 DAYS, ALSO ACCORDING TO THE ORDER VOLUME.
Q: 3. DO YOU HAVE ANY MOQ LIMIT?
A: OUR MOQ IS 1PCS.
Q: 4. CAN YOU OFFER BEST PRICE TO US?
A: YES, WE ARE A MANUFACTORY , SO WE CAN OFFER LOW PRICE THAN THE TRADING COMPANY.
Q: 5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE ARRIVE?
A: WE USUALLY SHIP BY DHL, UPS, FEDEX OR TNT. IT USUALLY TAKES 3-5 DAYS TO ARRIVE.
Q: 6. WHAT FILE WE SHOULD OFFER?
A: MAKING PCB SHOULD OFFER GERBER FILE (PROTEL ,POWER PCB,PADS FILE), PCBA SHOULD OFFER GERBER FILE AND BOM LIST.
Q: 7. WE WANT TO VISIT YOUR COMPANY?
A: NO PROBLEM, WE ARE A PRODUCTION AND PROCESSING ENTERPRISES, LOOK FORWARD TO YOUR ARRIVAL AND WE WILL LEAD YOU TO VISIT OUR
FACTORY AND PROCESSING FACTORY.
