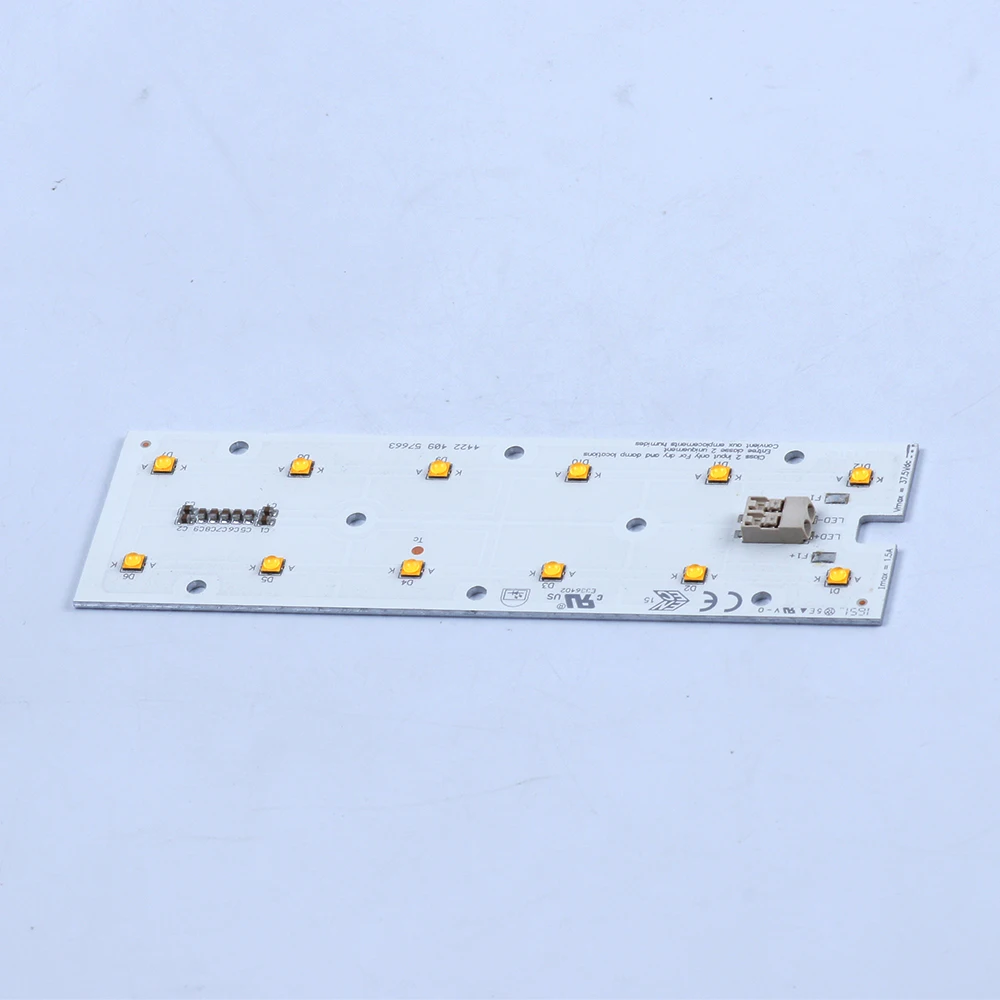

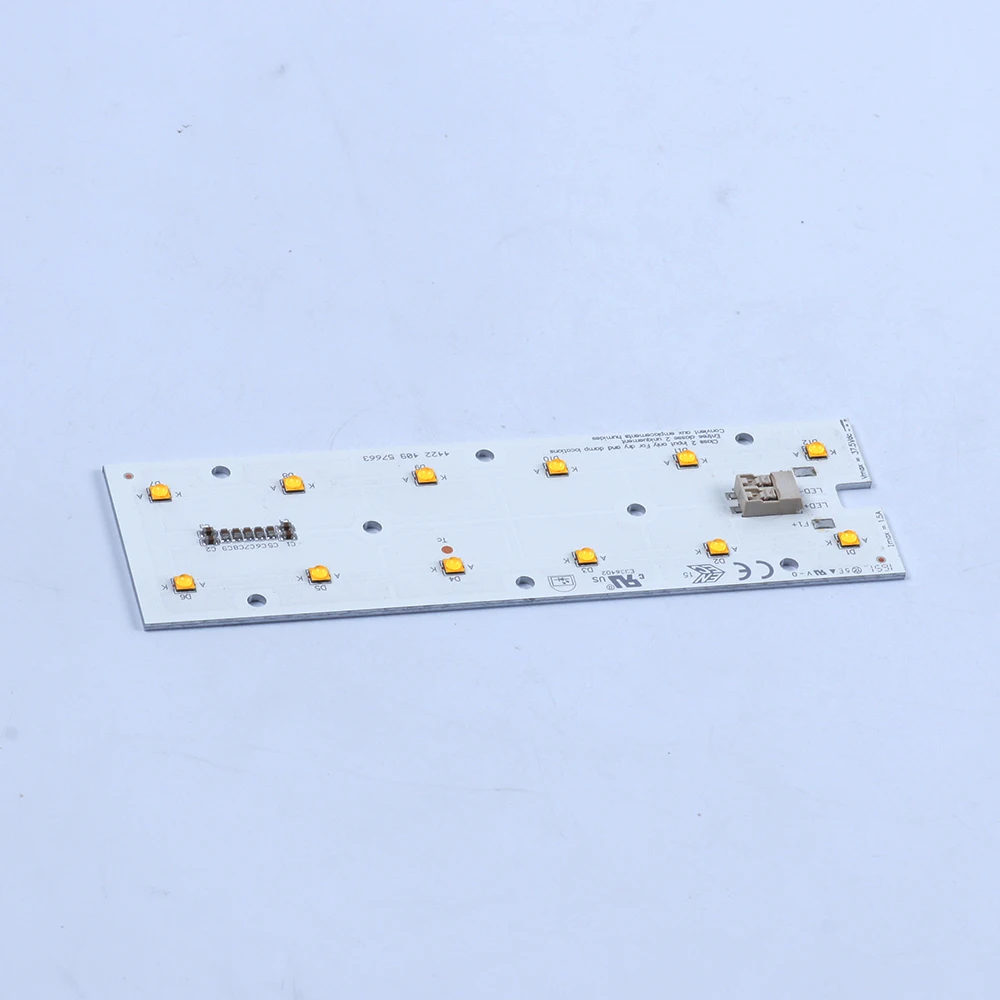

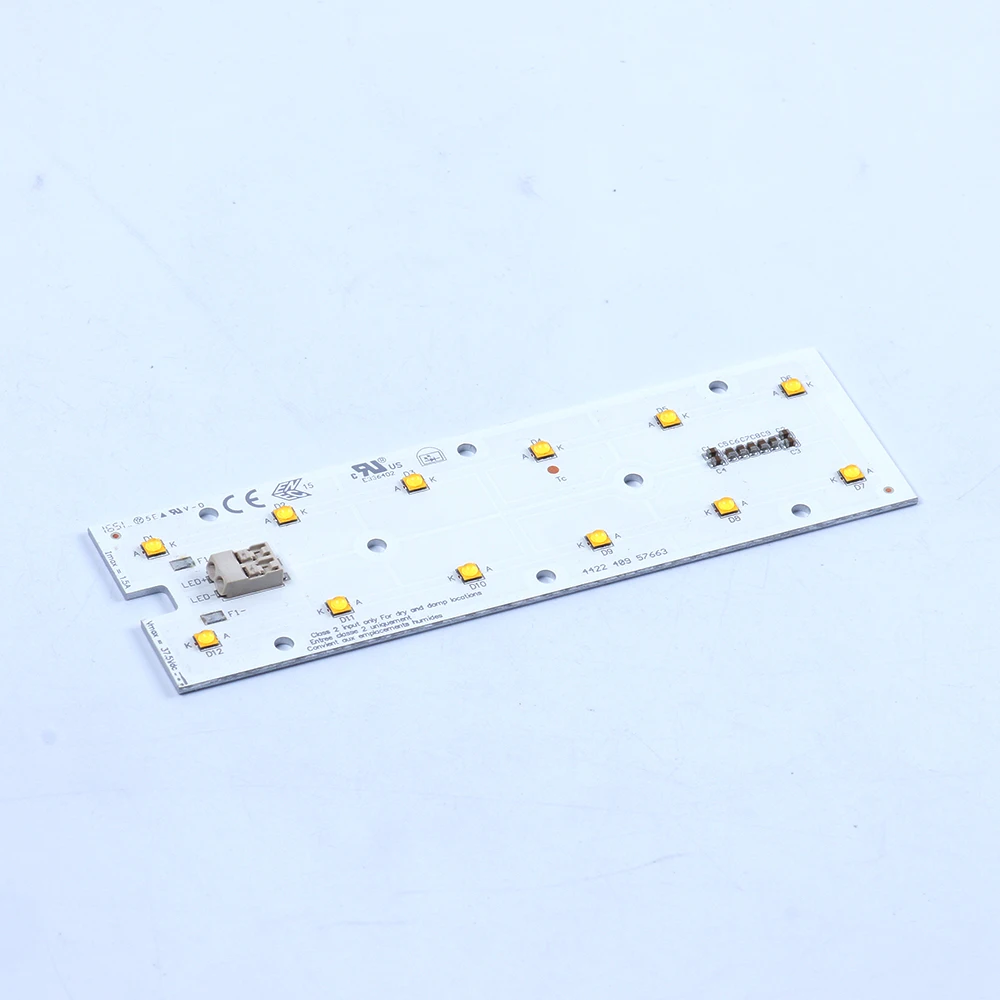

Product Details
Setting Information | ||
process | Ivory white | |
rated voltage | DC36V | |
material | 25W | |
light color | white | |
installation | embedded | |
temperature | 3000/4000/5000 K | |
Hole diameter | 145*45mm | |
Shelf life | 3 years | |
Mankun Electronic Co., Ltd. is a high-tech enterprise specializing in researching & producing metal substrates.
We focus on personnel training and absorbing superior techniques. We have an excellent management team. We strictly implement ISO9001 international quality standards to guide the entire company at all levels of management. We built an all-round quality control system to guarantee production quality with strong technical force, advanced production & testing equipment and rich experience.
Technical parameters and process capability of metal substarte(MCPCB) | ||||||
ITEM | SPECIFICATION | |||||
Surface | LF HASL,immersion gold,immersion siliver,OSP | |||||
Layer | Single side,double sided Multilayer and special structure | |||||
Maximum PCB size | 240mmx1490mm OR 490x1190mm | |||||
PCB thickness | 0.4-3.0mm | |||||
Copper Foil thickness | H 1/2/3/4(oz) | |||||
Insulation layer thickness | 50/75/100/125/150/175/200(um) | |||||
Metal Base thickness | AIuminum(1100/3003/5052/6061),Copper AIuminum | |||||
Metal Base thickness | 0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm) | |||||
Shaping | Die punching/CNC Route/V-Cut | |||||
Test | 100% open&short test | |||||
Shaping tolerance | Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm | |||||
Hole tolerance | +-0.5mm | |||||
Min.Hole DIameter | Single side 0.5/Double sided PTH0.3MM | |||||
Solder mask | green/white/black/red/yellow | |||||
Min.letter height | 0.8mm | |||||
Min.line space | 0.15 | |||||
Min.letter width | 0.15 | |||||
Sile screen color | blue/white/black/red/yellow | |||||
Sopecial hole | Spot facing/cup hole/buried via hole/buried tank | |||||
File format | Gerber,Protel,PowerPCB,AutoCAD etc | |||||
Lead time:
Pcb production time =Sample:3-4days mass production:7-8 working days
Pcb assembly time= sample:1-2days mass production:3-4days
Remark :mass production exact delievry time depends on the quantity.
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
contact person:Summer Phone:18922313007
Tel:86-020-34832899 Whatsapp:+86 18922313007
Skype:summer131448
Guangzhou Mankun Electronic Co.,LTD
Our price is competitive because we are manufacturer, we can provide you factory price.
Now send us your inquiry, we will quote you within 24 hours.
A: YES, WE CAN SEND YOU OUR SAMPLE TO CHECK OUR QUALITY
Q: 2. WHAT IS THE LEAD TIME?
A:SAMPLE NEEDS 1-3 DAYS, MASS PRODUCTION NEEDS 7-10 DAYS, ALSO ACCORDING TO THE ORDER VOLUME.
Q: 3. DO YOU HAVE ANY MOQ LIMIT?
A: OUR MOQ IS 1PCS.
Q: 4. CAN YOU OFFER BEST PRICE TO US?
A: YES, WE ARE A MANUFACTORY , SO WE CAN OFFER LOW PRICE THAN THE TRADING COMPANY.
Q: 5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE ARRIVE?
A: WE USUALLY SHIP BY DHL, UPS, FEDEX OR TNT. IT USUALLY TAKES 3-5 DAYS TO ARRIVE.
Q: 6. WHAT FILE WE SHOULD OFFER?
A: MAKING PCB SHOULD OFFER GERBER FILE (PROTEL ,POWER PCB,PADS FILE), PCBA SHOULD OFFER GERBER FILE AND BOM LIST.
Q: 7. WE WANT TO VISIT YOUR COMPANY?
A: NO PROBLEM, WE ARE A PRODUCTION AND PROCESSING ENTERPRISES, LOOK FORWARD TO YOUR ARRIVAL AND WE WILL LEAD YOU TO VISIT OUR
FACTORY AND PROCESSING FACTORY.
