PRODUCT DESCRIPTION

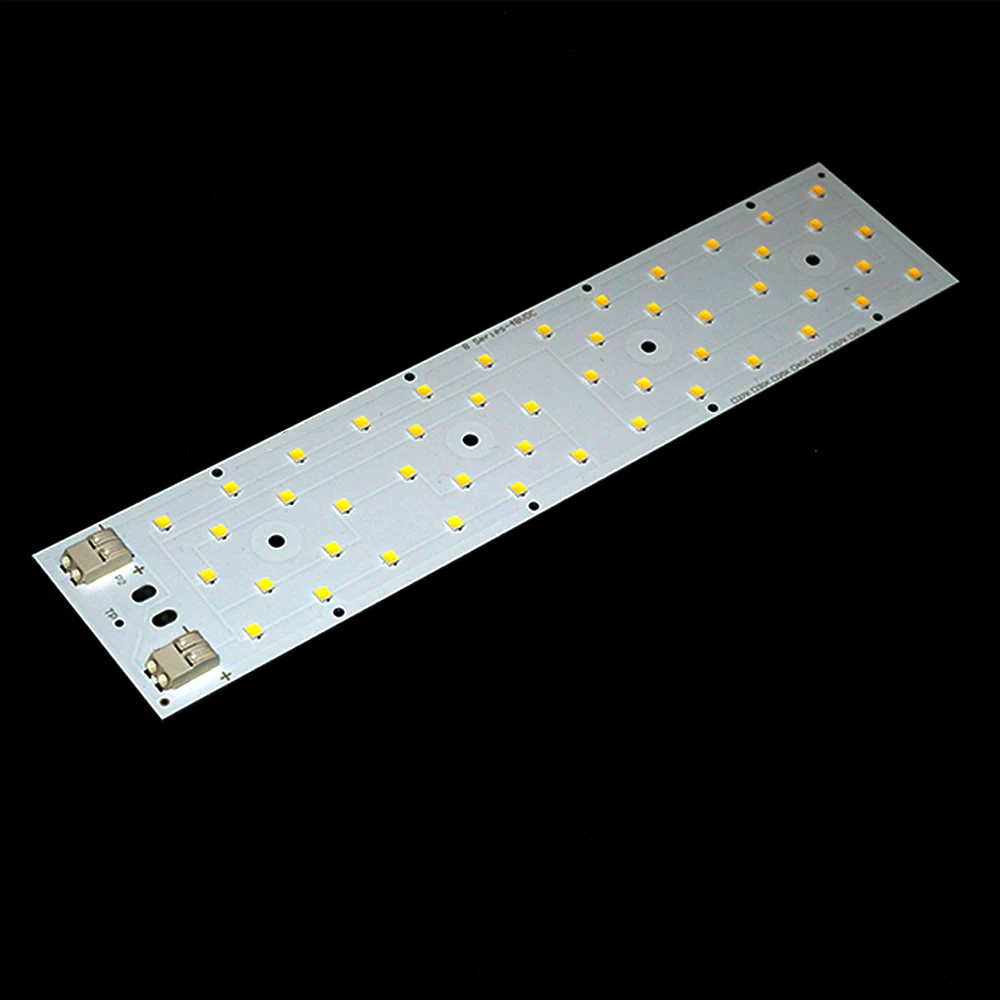

Type AL18383
- Dimension MCPCB 222*50mm - PCB Thickness 1.6mm
· Smd 3030 48LED 35W
· Input Voltage DC48V
• Beam characteristic 120º • Power Factor > 0.9
· Color temperatures (3000 K, 4000 K, 5000K) · CRI>80 (CRI90 Available on request) · Perfect for existing or new lamps · LED module efficiency of up to 180 lm/W · Excellent color consistency of 5 SDCM · Long life-time: 50,000 hours · Wide operating thermal range · Optical flexibility via third party lenses · Instant full light
PROTOTYPES
1. This led street light module has a small size can match a variety of lamp housing .
2. Whole led light module use smd 3030 leds ,High quality leds guarantee long life .
3. We have a competitive price for 3030 leds .
4. We can according your requirements to customized PCB board and Lens mold.


All the PCB can be customized in materials,
size, shape and so on.

PROTOTYPES,
WE OFFER,
No MOQ
Shipment in 2 weeks
Customized design
Rebate on high VOLUME ORDERS



Lead time:
Pcb production time =Sample:3-4days mass production:7-8 working days
Pcb assembly time= sample:1-2days mass production:3-4days
Remark :mass production exact delievry time depends on the quantity.

Can I Have Details of this Product?
Yes, Common Data are in the Following Table.
Technical parameters and process capability of metal substarte(MCPCB)
ITEM
SPECIFICATION
Surface
LF HASL,immersion gold,immersion siliver,OSP
Layer
Single side,double sided Multilayer and special structure
Maximum PCB size
240mmx1490mm OR 490x1190mm
PCB thickness
0.4-3.0mm
Copper Foil thickness
H 1/2/3/4(oz)
Insulation layer thickness
50/75/100/125/150/175/200(um)
Metal Base thickness
AIuminum(1100/3003/5052/6061),Copper AIuminum
Metal Base thickness
0.5/0.8/1.0/1.2/1.6/2.0/3.2/5.0(mm)
Shaping
Die punching/CNC Route/V-Cut
Test
100% open&short test
Shaping tolerance
Die Punching<+- 0.05mm,CNC Route<+-0.15mm,V-CUT Thick residue>+-0.15mm
Hole tolerance
+-0.5mm
Min.Hole DIameter
Single side 0.5/Double sided PTH0.3MM
Solder mask
green/white/black/red/yellow
Min.letter height
0.8mm
Min.line space
0.15mm
Min.letter width
0.15mm
Sile screen color
blue/white/black/red/yellow
Sopecial hole
Spot facing/cup hole/buried via hole/buried tank
File format
Gerber,Protel,PowerPCB,AutoCAD etc
We are a PCB manufacturer and LED solution Designer.We provide One-stop service: (PCB design + PCB production + PCB SMD + Provide range of LED lighting accessories such as lenses,LED beans , power supply, housing etc.) Price assurance: Own factory, own technology team and good channel of raw material.Quality assurance : Passed UL, ISO certification, many patented products and Import raw material from Taiwan. Delivery assurance:Timely delivery guaranteed,own freight forwarder. Welcome to buy our existing products or customize products.
About us
1.15years manufacturing experince
2.Specialist of PCB Fabrication
3.5000 sqm Workshop
4.10000 sqm capacity per month
5.120 Workers
6.6+ enginners as Tech support
7.get UL Certificates and meet ROHS stand
8.100% Test rate before shipment
9.On-time delivery
control
10.Do pcb design and layout
11.join in international LED Lighting exhibition every year
12.Mature PCB technology and
proven PCB equipment
FAQ
Q: 1. CAN I HAVE A SAMPLE ?

A: YES, WE CAN SEND YOU OUR SAMPLE TO CHECK OUR QUALITY.

Q: 2. WHAT IS THE LEAD TIME?

A:SAMPLE NEEDS 1- 3 working DAYS, MASS PRODUCTION NEEDS 7-10 DAYS, ALSO ACCORDING TO THE ORDER VOLUME.

Q: 3. DO YOU HAVE ANY MOQ LIMIT?

A: OUR MOQ IS 1PCS.

Q: 4. CAN YOU OFFER BEST PRICE TO US?

A: YES, WE ARE A MANUFACTORY , SO WE CAN OFFER LOW PRICE THAN THE TRADING COMPANY.

Q: 5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE ARRIVE?

A: WE USUALLY SHIP BY DHL, UPS, FEDEX OR TNT. IT USUALLY TAKES 3-5 DAYS TO ARRIVE.

Q: 6. WHAT FILE WE SHOULD OFFER?

A: MAKING PCB SHOULD OFFER GERBER FILE (PROTEL ,POWER PCB,PADS FILE), PCBA SHOULD OFFER GERBER FILE AND BOM LIST.

Q: 7. WE WANT TO VISIT YOUR COMPANY?

A: NO PROBLEM, WE ARE A PRODUCTION AND PROCESSING ENTERPRISES, LOOK FORWARD TO YOUR ARRIVAL AND WE WILL LEAD YOU TO VISIT OUR
FACTORY AND PROCESSING FACTORY.
