SK6812mini smd 3535 RGB LED strips white /black board
We've all seen the cool RGB LED strips where each LED can be addressed with regular SMD5050 LED size.
In 2016, SOYA LED designed and produced the mini version pixel led strips that have individually address to programmable with Mini SMD3535 LED strip integrated IC driver inside!
Key Features:
1. So thin. So mini. So teeeeeeny-tiny. It's the 'skinny' version of our classic digital Pixel strips!
2. These digital Pixel strips have 30/60/144 digitally-addressable pixel Mini LEDs per meter and are very affordable and are only 7.5 mm wide, 5 mm if you remove the strip from the casing. Strips are available with black and white flex PCB,
3. There are 30/60/ 144RGB mini 3535 LEDs per meter, and you can control each LED individually! Yes, that's right, this is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).
4. The SK6812mini smd 3535 RGB LED strips white /black board is made of flexible PCB material, and comes with a weatherproof sheathing. You can cut this stuff pretty easily with wire cutters, there are cut-lines every 0.66"/17mm (1 LED each). Solder to the 0.1" copper pads and you're good to go. Of course, you can also connect strips together to make them longer.
5. The way the pixels are controlled by Arduino, Glediator, DMX( Artnet), Raspberry pi, T1000s/T300K and etc.
SK6812mini smd 3535 RGB LED strips white /black board
| Item No. | SK6812mini smd 3535 RGB LED strips white /black board |
| LED quantity | 30/60/144 LEDs/m |
| LED type | sk6812 mini SMD 3535 LED |
| Wattage | 12 watts |
| Pixel pitch | every 16.66mm cuttable |
| PCB width | 5mm |
| Working volatage | DC5V |
| PCB color | Black and White |
| Light color | Multi-color, digital RGB,Every LED individual Control |
| Connector | 2pin JST-SM connector / 3pin JST-SM connector |
| Controller | Artnet/ Arduino/ AVR/Raspberry pi/T1000s/DMX512/DMX decoder |

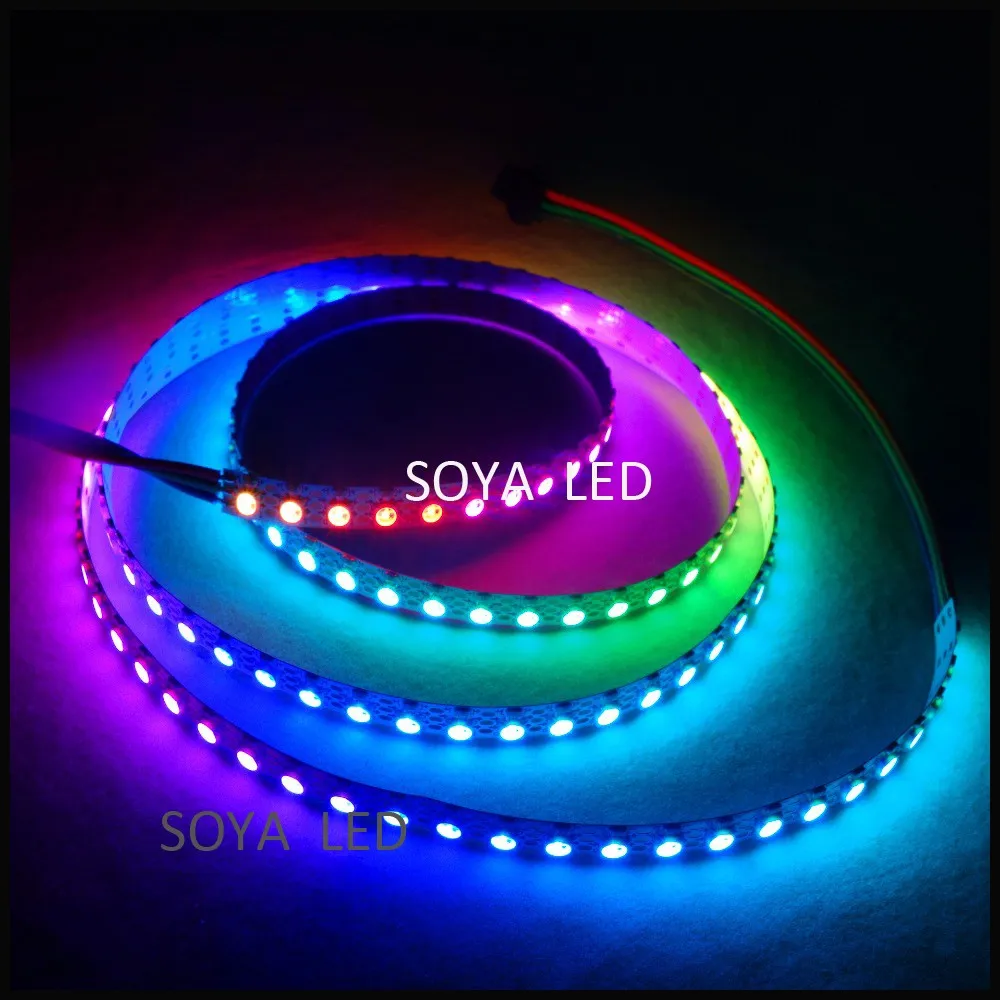

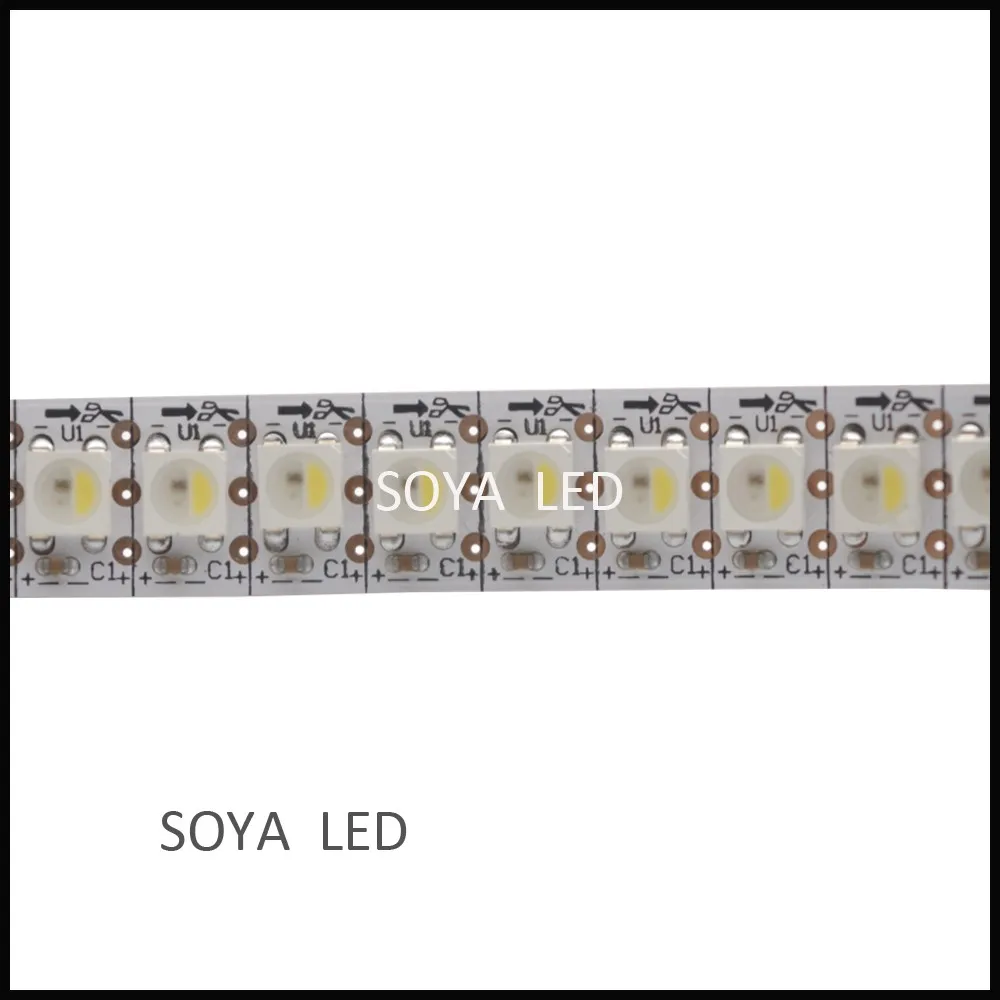

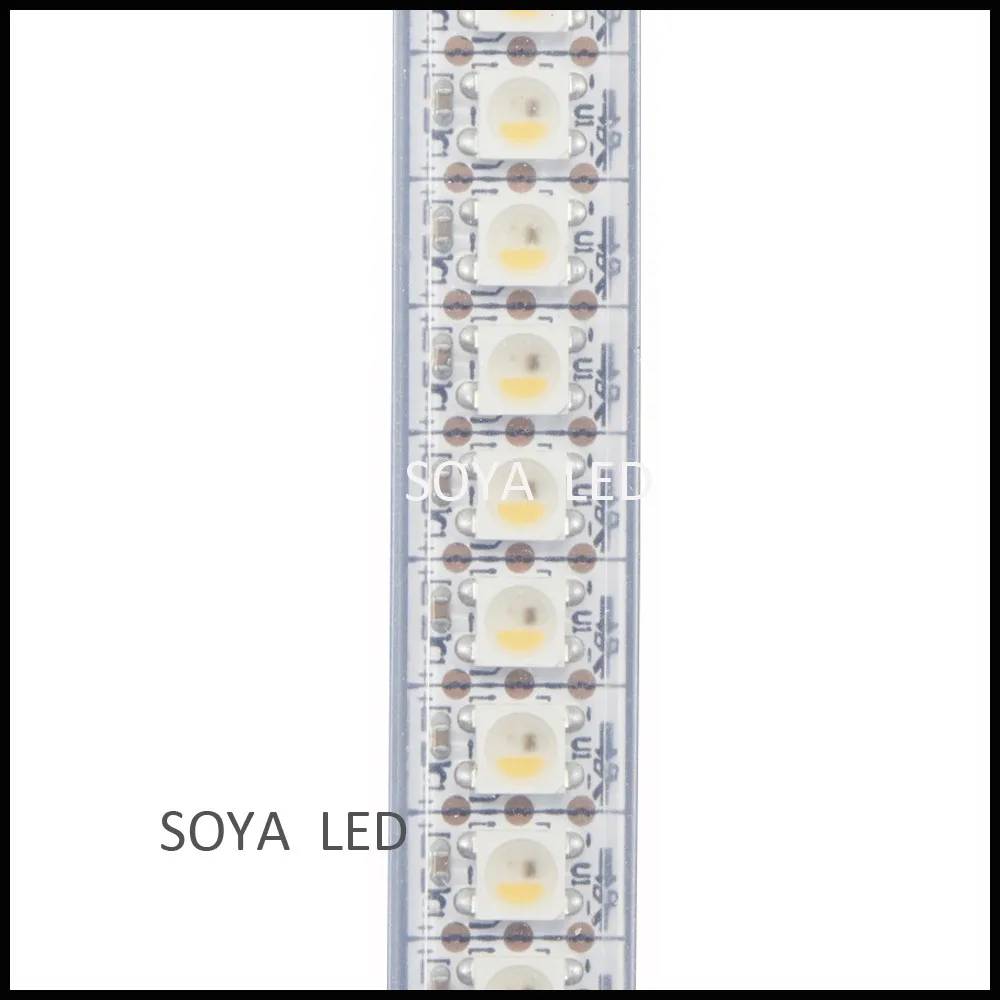

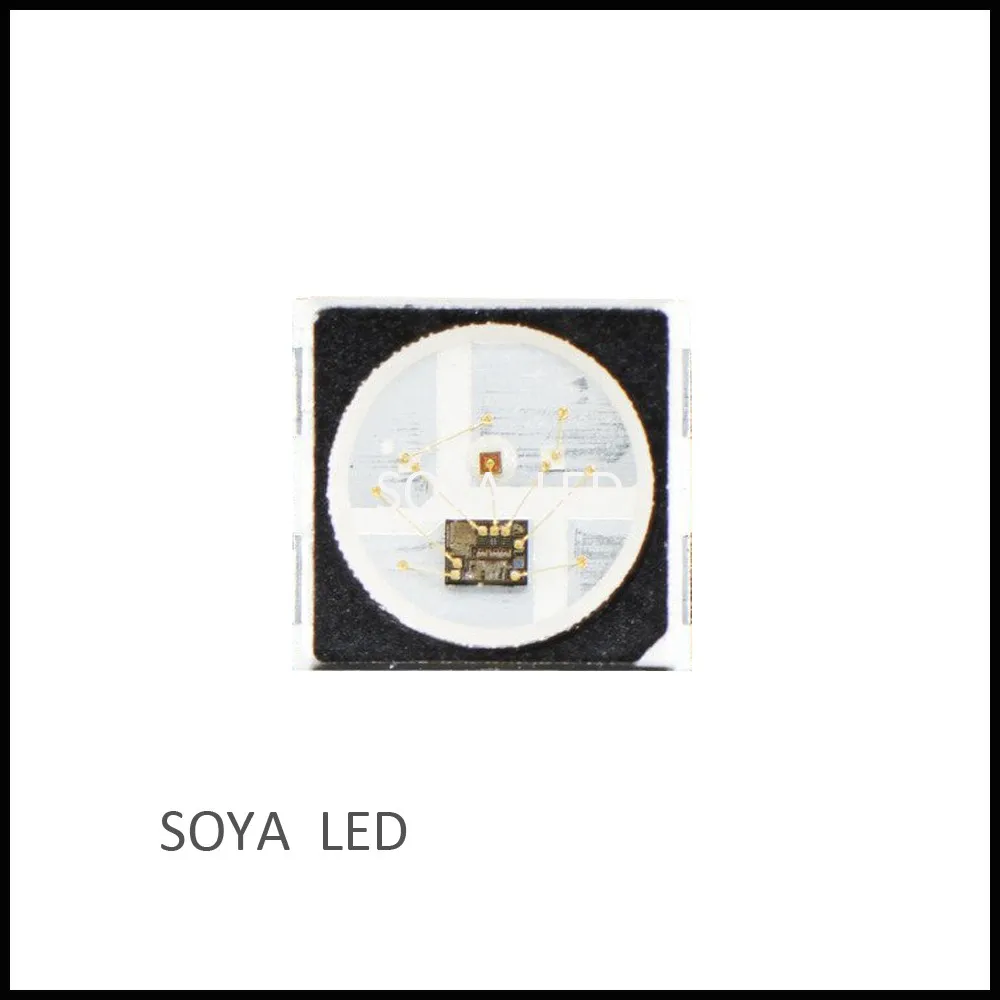

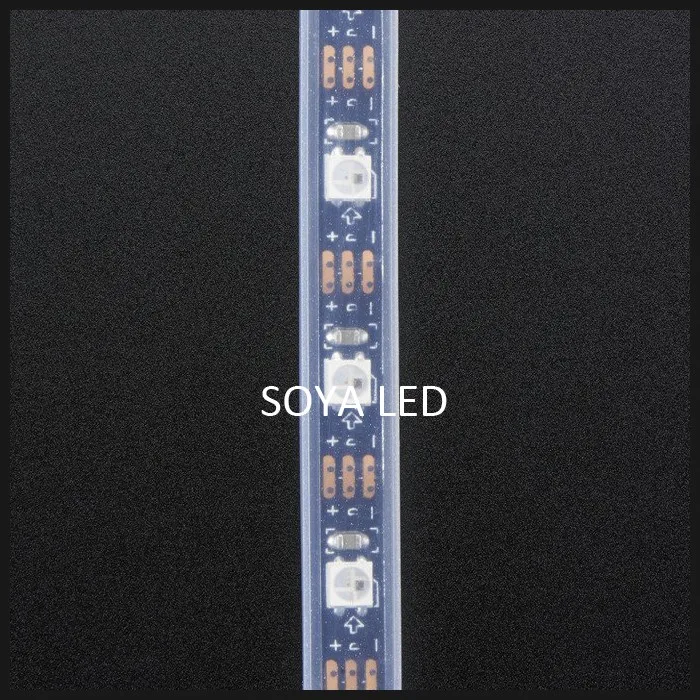

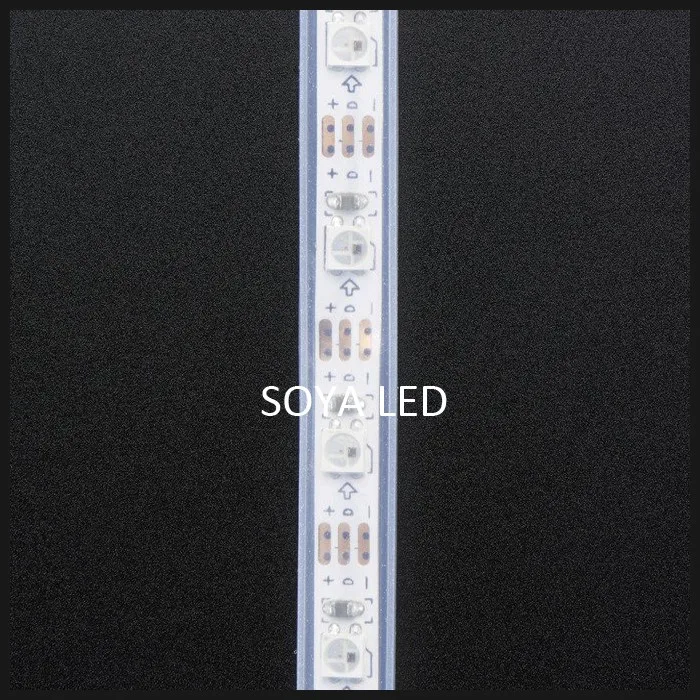

SK6812mini smd 3535 RGB LED strips white /black boarddetailed images
Trade Terms
1. Payment Terms:
T/T, Western Union, Aliexpress Escrow
2. Lead Time:
Usually we had materials in stock, regular order delivery time 1--7days after the profoma invoice paid,
OEM products: 10--15days (Customized PCB board).
3.Warranty:
2 years warranty since the data of purchase our LED products.
4. Delivery Way:
DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
